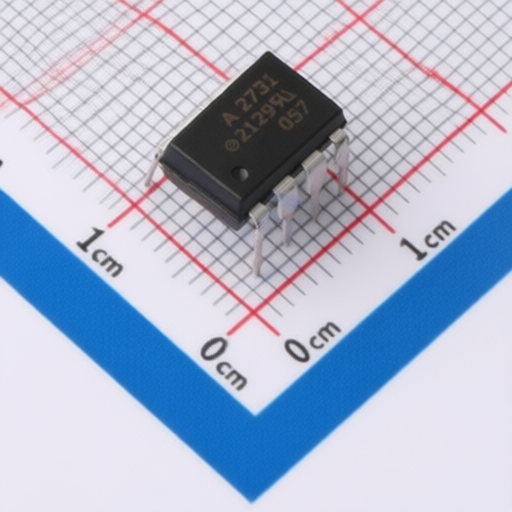

High speed dual channel optocoupler Broadcom HCPL-2731-000E with low output saturation voltage design
High speed dual channel optocoupler Broadcom HCPL-2731-000E with low output saturation voltage design
Specifications
Output Current :
60mA
Operating Temperature :
0℃~+70℃
Isolation Voltage(Vrms) :
3.75kV
Number of Channels :
2
Description :
60mA PDIP-8 Transistor, Photovoltaic Output Optoisolators RoHS
Mfr. Part # :
HCPL-2731-000E
Model Number :
HCPL-2731-000E
Package :
PDIP-8
Description

Product Overview

The Broadcom HCPL-2730/0730/2731/0731 are dual-channel optocouplers featuring separated GaAsP light-emitting diodes optically coupled to integrated high-gain photodetectors. These devices offer extremely high current transfer ratios (CTR) and excellent input-output common mode transient immunity. The separated pin for photodiodes and first gain stages (VCC) allows for lower output saturation voltage and higher speed operation compared to conventional photo-darlington optocouplers. They are available in an 8-pin DIP and an industry-standard SO-8 package, providing high-density packaging. These optocouplers are suitable for various applications including digital logic ground isolation, telephone ring detection, level shifting, EIA RS-232C line receivers, polarity sensing, low input current line receivers, microprocessor bus isolation, current loop receivers, and line voltage status indicators.

Product Attributes

  • Brand: Broadcom
  • Certifications: UL recognized (3750 V rms for 1 minute and 5000 Vrms for 1 minute for Option 020), CSA approved
  • Packaging Options: 8-pin DIP, SO-8 footprint, MIL-PRF-38534 hermetic version, Surface mount gull wing option
  • Safety Precautions: Normal static precautions recommended; not for or aerospace applications.

Technical Specifications

Model Description Typical CTR Min. Input ON Current (IF) Max. VCC Package
HCPL-2731 / HCPL-0731 Dual-Channel Low Input Current, High-Gain Optocoupler 1800% 0.5 mA 18V 8-Pin DIP, SO-8
HCPL-2730 / HCPL-0730 Dual-Channel Low Input Current, High-Gain Optocoupler 1600% 1.6 mA 7V 8-Pin DIP, SO-8
HCPL-2730/0730/2731/0731 Dual-Channel Low Input Current, High-Gain Optocouplers 1800% (HCPL-2731/0731) 0.5 mA (HCPL-2731/0731) 18V (HCPL-2731/0731) 8-Pin DIP, SO-8
HCPL-2730/0730/2731/0731 Dual-Channel Low Input Current, High-Gain Optocouplers 1600% (HCPL-2730/0730) 1.6 mA (HCPL-2730/0730) 7V (HCPL-2730/0730) 8-Pin DIP, SO-8
Key Features:
High current transfer ratio 1800% typical
Low input current requirements 0.5 mA
Low output saturation voltage 0.1V
High density packaging
Performance guaranteed over temperature 0C to 70C
LSTTL compatible
High output current 60 mA
Insulation-Related Specifications (Example: 8-Pin DIP)
Minimum External Air Gap (Clearance) 7.1 mm
Minimum External Tracking (Creepage) 7.4 mm
Tracking Resistance (CTI) 200 Volts
Maximum Working Insulation Voltage (VIORM) 630 Vpeak
Input-Output Momentary Withstand Voltage (VISO) 3750 Vrms

2410311234_Broadcom-HCPL-2731-000E_C7466712.pdf
