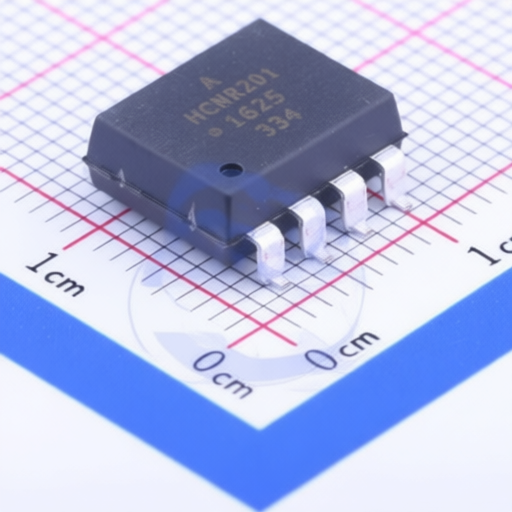

analog signal isolation solution featuring Broadcom HCNR201-500E for precise LED output monitoring
analog signal isolation solution featuring Broadcom HCNR201-500E for precise LED output monitoring
Specifications
Operating Temperature :
-55℃~+100℃
Reverse Voltage :
2.5V
Load Type :
Photodiode
Current transfer ratio :
105%;95%
Forward Current(If) :
25mA
Input type :
AC,DC
Isolation Voltage(Vrms) :
5kV
Number of Channels :
1
Description :
2.5V AC,DC SOP-8-2.54mm Transistor, Photovoltaic Output Optoisolators RoHS
Mfr. Part # :
HCNR201-500E
Model Number :
HCNR201-500E
Package :
SOP-8-2.54mm
Description

Product Overview

The HCNR200/201 is a high-linearity analog optocoupler designed for reliable analog signal isolation. It features a high-performance AlGaAs LED illuminating two closely matched photodiodes, enabling precise monitoring and stabilization of LED output. This design virtually eliminates nonlinearity and drift, providing a stable and linear photodiode current. The HCNR200/201 offers excellent stability, linearity, and bandwidth, making it suitable for a wide range of applications including telecommunications, industrial process control, and SMPS feedback loops. Its flexible design allows for unipolar/bipolar, AC/DC, and inverting/non-inverting operation, offering a cost-effective solution for analog isolation challenges.

Product Attributes

  • Brand: Avago Technologies
  • Compliance: Lead (Pb) Free, RoHS 6 fully compliant options available
  • Safety Approvals: UL 1577 recognized (5 kV rms/1 min rating), CSA approved, IEC/EN/DIN EN 60747-5-2 approved

Technical Specifications

Model Feature Value Unit Conditions
HCNR200/HCNR201 Low Nonlinearity (Best Fit) 0.01 % 5 nA < IPD < 50 A, 0 V < VPD < 15 V
K3 (IPD2/IPD1) Transfer Gain 15% (HCNR200)
K3 (IPD2/IPD1) Transfer Gain 5% (HCNR201)
Low Gain Temperature Coefficient -65 ppm/C -40C < TA < 85C, 5 nA < IPD < 50 A, 0 V < VPD < 15 V
Bandwidth DC to >1 MHz
Package 8-Pin DIP (0.400 spacing)
Surface Mount Option Available (Option #300)
Maximum Working Insulation Voltage (VIORM) 1414 V peak (Option #050)
Input-Output Momentary-Withstand Voltage 5000 V rms t = 1 min
Input-Output Resistance >1012 VO = 500 VDC

2410121617_Broadcom-HCNR201-500E_C27465.pdf
