signal isolation device Broadcom ACPL-227-56BE dual channel phototransistor optocoupler with 3750VRMS isolation voltage
signal isolation device Broadcom ACPL-227-56BE dual channel phototransistor optocoupler with 3750VRMS isolation voltage
Specifications
Fall time :
3us
Output Current :
50mA
Rise time :
2us
Vce Saturation(VCE(sat)) :
400mV@8mA,2.4mA
Operating Temperature :
-55℃~+110℃
Load Voltage :
80V
Reverse Voltage :
6V
Current transfer ratio :
600%;50%
Forward Current(If) :
50mA
Pd - Power Dissipation :
200mW
Number of Channels :
2
Load Type :
Phototransistor
Input type :
DC
Isolation Voltage(Vrms) :
3.75kV
Description :
50mA 400mV@8mA,2.4mA 80V 6V DC SOIC-8-175mil Transistor, Photovoltaic Output Optoisolators RoHS
Mfr. Part # :
ACPL-227-56BE
Model Number :
ACPL-227-56BE
Package :
SOIC-8-175mil
Description

Broadcom ACPL-227/ACPL-247 DC Input, Multi-Channel Half-Pitch Phototransistor Optocoupler

Product Overview

The Broadcom ACPL-227 and ACPL-247 are DC-input phototransistor optocouplers designed for reliable signal isolation. The ACPL-227 is a dual-channel device in an 8-pin SO package, while the ACPL-247 is a quad-channel device in a 16-pin SO package. Both offer high input-output isolation voltage of 3750VRMS and a typical response time of 2 s. They are suitable for applications requiring signal transmission between circuits of different potentials and impedances, including I/O interfaces for programmable controllers, computers, sequence controllers, system appliances, and measuring instruments.

Product Attributes

  • Brand: Broadcom
  • Package Type: SO (Surface Mount)
  • Certifications: cUL, IEC/EN/DIN EN 60747-5-5, UL Recognized (3750VRMS per UL1577 and Canadian Component Acceptance Notice #5)
  • RoHS Compliant: Available

Technical Specifications

Model Description Number of Channels Package Input-Output Isolation Voltage (VISO) Response Time (tr) Minimum CTR Common Mode Rejection (CMR) Ordering Options (CTR Ranks)
ACPL-227 Dual-channel half-pitch phototransistor optocoupler 2 8-pin SO 3750 VRMS 2 s (typ) 50% (min) at IF = 5 mA, VCE = 5V 10 kV/s (typical) Ranks 0 (50% < CTR < 600%), B (130% < CTR < 260%), C (200% < CTR < 400%)
ACPL-247 Quad-channel half-pitch phototransistor optocoupler 4 16-pin SO 3750 VRMS 2 s (typ) 50% (min) at IF = 5 mA, VCE = 5V (Note: Electrical Specs state 100% min for ACPL-247) 10 kV/s (typical) Rank 0 (100% < CTR < 600%)
General Electrical Specifications (Typical at 25C unless otherwise specified):
- Forward Voltage (VF) 1.2 V (typ) at IF = 20 mA
- Reverse Current (IR) 10 A (max) at VR = 5V
- Collector Dark Current (ICEO) 100 nA (max) at VCE = 48V, IF = 0 mA
- Collector-Emitter Breakdown Voltage (BVCEO) 80 V (min) at IC = 0.5 mA, IF = 0 mA
- Emitter-Collector Breakdown Voltage (BVECO) 7 V (min) at IE = 100 A, IF = 0 mA
- Collector-Emitter Saturation Voltage (VCE(sat)) 0.4 V (max) at IF = 8 mA, IC = 2.4 mA
- Isolation Resistance (Riso) 1 10^11 (min) at DC500V, R.H. 40%~60%
- Cut-off Frequency (FC) 80 kHz (typ) at VCC = 5V, IC = 2 mA, RL = 100

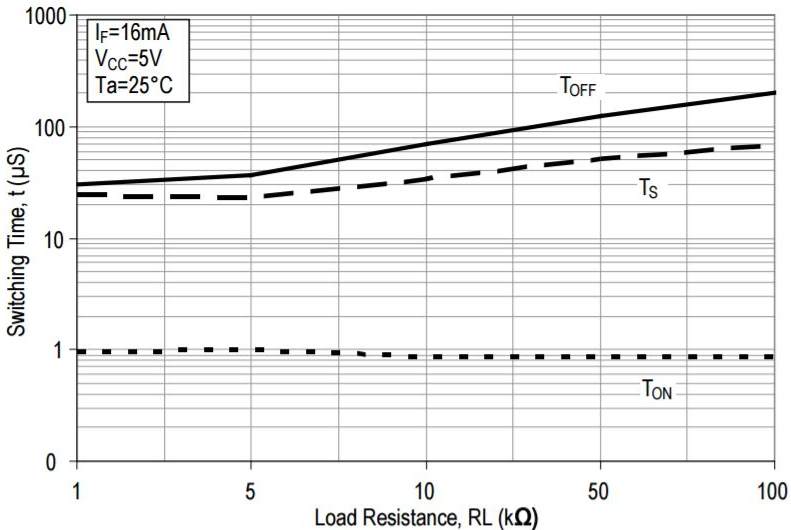

- Response Time (Fall) (tf) 3 s (typ)
- Turn-on Time (ton) 3 s (typ)
- Turn-off Time (toff) 3 s (typ)
Absolute Maximum Ratings:
- Storage Temperature (TS) 55 to 125 C
- Operating Temperature (TA) 55 to 110 C
- Average Forward Current (IF(AVG)) 50 mA
- Pulse Forward Current (IFSM) 1 A
- Reverse Voltage (VR) 6 V
- Collector Current (IC) 50 mA
- Collector-Emitter Voltage (VCEO) 80 V
- Emitter-Collector Voltage (VECO) 7 V
- Collector Power Dissipation (PC) (1 channel) ACPL-227: 150 mW; ACPL-247: 100 mW
- Total Power Dissipation (PTOT) ACPL-227: 200 mW; ACPL-247: 170 mW

2412111055_Broadcom-ACPL-227-56BE_C17374213.pdf
