Opto isolated photovoltaic driver dual channel Infineon PVI5033RSPBF for power MOSFET and IGBT gate control
Opto isolated photovoltaic driver dual channel Infineon PVI5033RSPBF for power MOSFET and IGBT gate control
Specifications
Output Current :
-
Fall time :
-
Rise time :
-
Vce Saturation(VCE(sat)) :
-
Operating Temperature :
-40℃~+85℃
Load Voltage :
-
Reverse Voltage :
6V
Current transfer ratio :
-;-
Forward Current(If) :
25mA
Pd - Power Dissipation :
-
Number of Channels :
2
Load Type :
-
Input type :
DC
Isolation Voltage(Vrms) :
3.75kV
Description :
6V DC SMD-8P Transistor, Photovoltaic Output Optoisolators RoHS
Mfr. Part # :
PVI5033RSPBF
Model Number :
PVI5033RSPBF
Package :
SMD-8P
Description

Product Overview

The PVI5033R Photovoltaic Isolator is a dual-channel, opto-isolated driver designed to directly drive the gates of power MOSFETs or IGBTs. It features a novel monolithic integrated circuit photovoltaic generator as its output, controlled by a GaAlAs light-emitting diode (LED) that is optically isolated from the generator. This isolator is ideal for applications requiring high-current and/or high-voltage switching with optical isolation between low-level driving circuitry and high-energy or high-voltage load circuits. The dual-channel configuration allows for independent driving of discrete power MOSFETs or parallel/series connection for higher-current drive of power MOSFETs or higher-voltage drive of IGBTs. The PVI5033R includes fast turn-off circuitry and is available in an 8-pin molded DIP package with thru-hole or gull-wing terminals, offered in standard plastic shipping tubes or on tape-and-reel.

Product Attributes

  • Brand: International Rectifier
  • Certifications: RoHS compliant, Industrial Qualification (per JEDEC JES D47I guidelines)
  • Moisture Sensitivity Level: MSL4 (per JEDEC J-STD-020E & JEDEC J-STD-033C)

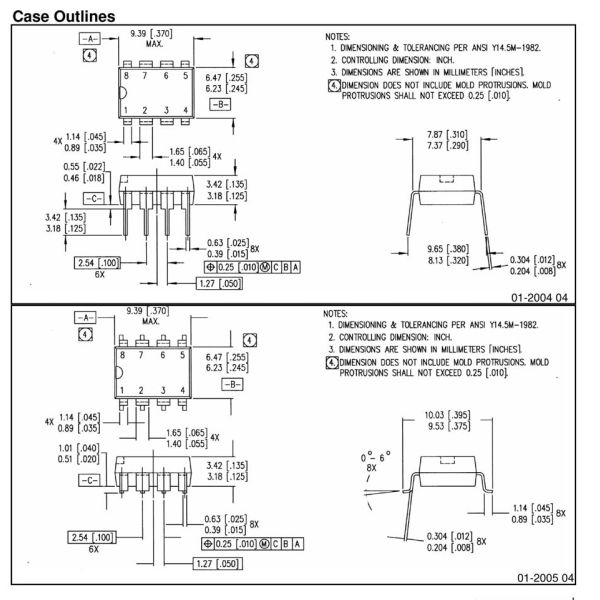

  • Packaging: 8-pin molded DIP (thru-hole or gull-wing terminals), standard plastic shipping tubes or tape-and-reel

Technical Specifications

Part NumberDescriptionOutput Voltage (VDC)Input Current (mA)Output Short-Circuit Current (A)Load Capacitance (pF)Response Time (s)Ambient Temperature (C)
PVI5033RDual-channel Photovoltaic Isolator10 (Open Circuit Voltage)0-25 (Steady-state control current rating)30 (Short-Circuit Current)1000-7000Ton: Min. device and +85 deg. C limit, Toff: Max. device and -40 deg. C limit-40 to +85
PVI5033RPbFRoHS compliant version
PVI5033RSPbFRoHS compliant version
PVI5033RS-TPbFRoHS compliant version

Application Scenarios:

  • Telecommunications
  • Load Distribution
  • Industrial Controls
  • Instrumentation and Measurement
  • Electronic Ballast

2411272140_Infineon-PVI5033RSPBF_C538606.pdf
