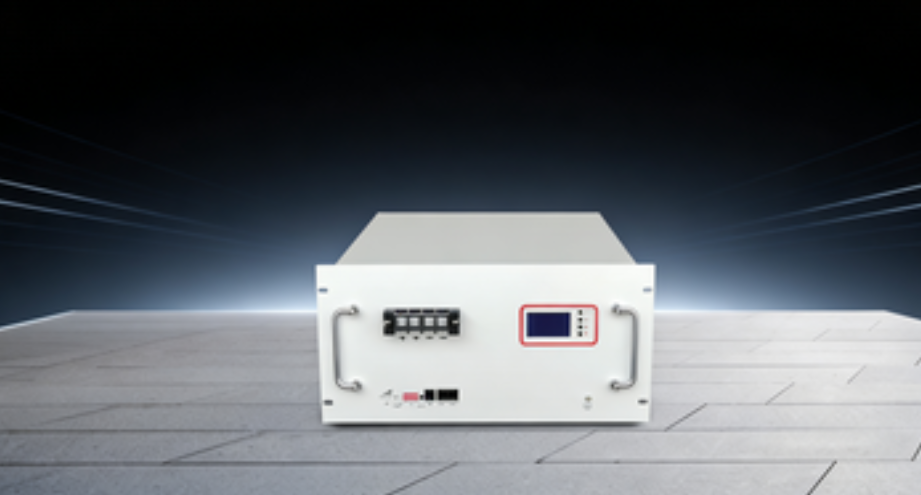

25.6V 100Ah Scalable Energy Storage 2.56kWh Solar Battery Backup For Home
25.6V 100Ah Scalable Energy Storage 2.56kWh Solar Battery Backup For Home
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$500-700
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Cell Specification :
100
Operating VoltageRange (V) :
22.4~29.2
Recommended Discharge Cut-offVoltage (V) :
24
Cycle Life :
5000+Times at 80% DOD
Description
24V 100Ah LiFePO₄ Deep Cycle Battery
Long Cycle Life & Scalable Energy Storage Solution
This high-performance 24V 100Ah LiFePO₄ deep cycle battery features premium LiFePO₄ cells in series-parallel configuration and an advanced Battery Management System (BMS). Designed as a reliable, long-life energy storage solution, it serves as an independent DC power supply or can be paralleled with multiple units to create higher-power energy storage systems. Ideal for communication base stations, data centers, residential and industrial energy storage applications, with seamless compatibility for UPS systems and photovoltaic power generation equipment.
Key Features
  • Compact size and lightweight design for easy transportation and installation, saving valuable space
  • Integrated LED display with direct inverter communication for real-time battery status monitoring
  • Exceptional cycle life exceeding 5,000 cycles, significantly outperforming traditional lead-acid batteries
  • Multi-unit parallel operation with automatic addressing for flexible system capacity expansion
  • Streamlined installation process and convenient operation and maintenance, reducing deployment costs
Application Scenarios
  • Communication base station backup power
  • Data center standby power
  • Residential energy storage systems
  • Industrial energy storage solutions
  • RV and marine energy storage
  • Photovoltaic energy storage systems
  • UPS backup power supply
25.6V 100Ah Scalable Energy Storage 2.56kWh Solar Battery Backup For Home
Technical Specifications
Model CH--GBP24-100R
Nominal Voltage (V) 25.6
Cell Specification 100
Nominal Capacity (Ah) 100
Nominal Energy (kWh) 2.56
Operating Voltage Range (V) 22.4~29.2
Recommended Charging Voltage (V) 27.6
Recommended Discharge Cut-off Voltage (V) 24
Standard Charge/Discharge Current (A) 0.5C
Maximum Continuous Charge/Discharge Current (A) 1C (Customizable)
Operating Temperature (°C) -30~60 (Recommend 10~35)
Allowable Humidity Range (%RH) <85
Storage Temperature (°C) -20~65 (Recommend 10~35)
Charging Temperature (°C) 0~55
Discharging Temperature (°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling / Intelligent Fan
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension (D*W*H) mm 689*495*162
Weight (kg) 28
Note: The maximum charge/discharge rate of models GBP48-200R and BP51.2-200R can be customized to 1C. The above data is for reference only. In case of any changes, no further notice will be given.
