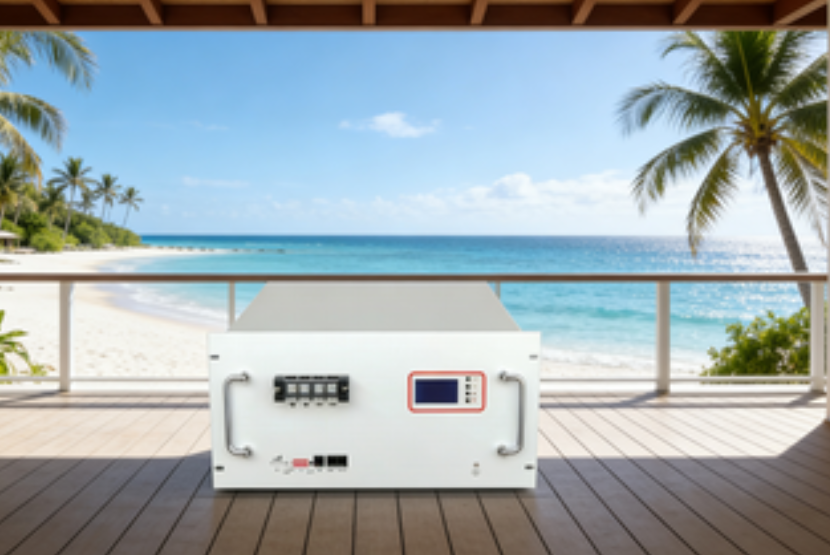

4.8kwh 48V 100Ah Rack Battery Scalable Energy Storage Server Rack Solar Battery
4.8kwh 48V 100Ah Rack Battery Scalable Energy Storage Server Rack Solar Battery
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$700-900
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Nominal Energy (kWh) :
4.8kwh
Operating Temperature (°C) :
-30~ 60 (Recommend 10~ 35)
Allowable Humidity Range(%RH) :
<85
Weight(kg) :
46
Description
48V 100Ah 4.8kWh LiFePO₄ Deep Cycle Battery
This 48V 100Ah LiFePO4 battery is a high-performance deep cycle energy storage unit, equipped with premium lithium iron phosphate cells and an intelligent BMS battery management system. It features stable discharge, long cycle life, high safety and strong compatibility, widely used in solar energy storage systems, communication base stations, UPS backup power, industrial energy storage and other scenarios. It supports parallel expansion and can be seamlessly connected with inverters to provide safe and reliable power supply.
Key Features
  • Compact size and lightweight design for easy transport and installation, saving valuable space
  • Integrated LED display with direct inverter communication for real-time battery status monitoring
  • Standard cycle life exceeding 5,000 cycles, significantly outperforming traditional lead-acid batteries
  • Supports multi-unit parallel operation with automatic addressing for flexible capacity expansion
  • Simple installation process and convenient operation & maintenance, reducing deployment costs
Application Scenarios
  • Communication base station backup power
  • Data center standby power
  • Residential energy storage power supply
  • Industrial energy storage power supply
  • RV/Marine energy storage systems
  • Photovoltaic energy storage
  • UPS backup power supply
4.8kwh 48V 100Ah Rack Battery Scalable Energy Storage Server Rack Solar Battery
Technical Specifications
Model CH--GBP48-100R
Nominal Voltage (V) 48
Cell Specification 100
Nominal Capacity (Ah) 100
Nominal Energy (kWh) 4.8
Operating Voltage Range (V) 42~54.75
Recommended Charging Voltage (V) 51.75
Recommended Discharge Cut-off Voltage (V) 45
Standard Charge/Discharge Current (A) 0.5C
Maximum Continuous Charge/Discharge Current (A) 1C (Customizable)
Operating Temperature (°C) -30~60 (Recommend 10~35)
Allowable Humidity Range(%RH) <85
Storage Temperature(°C) -20~65 (Recommend 10~35)
Charging Temperature(°C) 0~55
Discharging Temperature(°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling / Intelligent Fan
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension(D*W*H)mm 689*495*162
Weight(kg) 46
The above data is for reference only. In case of any changes, no further notice will be given.
