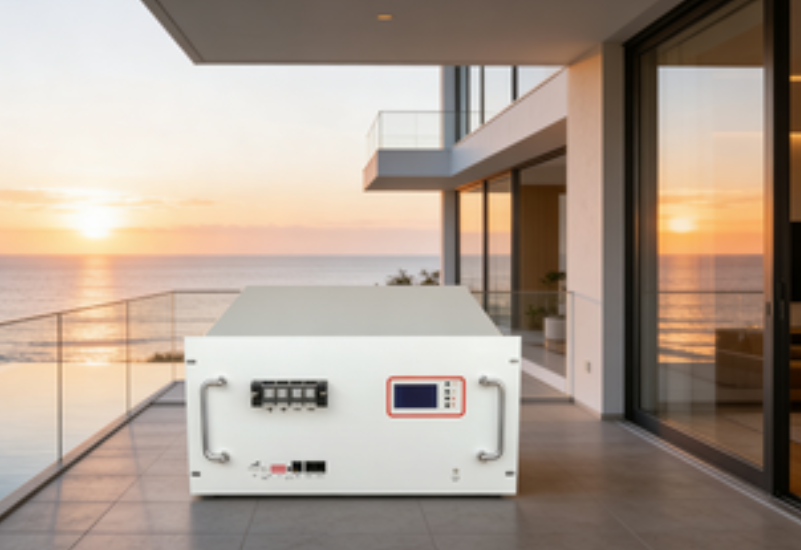

200Ah 48V LiFePO4 Server Rack Battery 9.6kWh Rack Mount Battery
200Ah 48V LiFePO4 Server Rack Battery 9.6kWh Rack Mount Battery
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$1100-1300
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Nominal Voltage (V） :
48
Nominal Capacity (Ah) :
200
Nominal Energy (kWh) :
9.6
Recommended Discharge Cut-off Voltage (V） :
45
Description

200Ah 48V LiFePO4 Server Rack Battery 9.6kWh 48V Rack Mount Battery

Product Description

This 48V 200Ah rack-mounted energy storage battery adopts high-performance LiFePO4 cells and intelligent BMS battery management system. Designed with standard server rack structure, it is easy to install, manage and expand. With high safety, long cycle life, stable discharge and strong compatibility, it is widely used in solar energy storage systems, communication base stations, data centers, UPS backup power, industrial energy storage and other scenarios.
Key Features
1.Standard rack-mounted design, easy to install in server cabinet
2.Built-in smart BMS with full protection: overcharge, over-discharge, over-current, short circuit
3.48V 200Ah large capacity, stable output, long service life
4.Up to 5000+ deep cycles, low self-discharge, maintenance-free
5.Support parallel expansion, suitable for large-scale energy storage systems
Application Scenarios
1.Solar photovoltaic energy storage system
2.Data center & UPS backup power
3.Telecom base station backup power
4.Industrial & commercial energy storage
5.Off-grid & microgrid power supply
200Ah 48V LiFePO4 Server Rack Battery 9.6kWh Rack Mount Battery
Model CH—GBP48-200R
Nominal Voltage (V) 48
Cell Specification 100
Nominal Capacity (Ah) 200
Nominal Energy (kWh) 9.6
Operating Voltage Range (V) 42~54.75
Recommended Charging Voltage (V) 51.75
Recommended Discharge Cut-off Voltage (V) 45
Standard Charge/Discharge Current (A) 0.5C
Maximum Continuous Charge/Discharge Current (A) 1C (Customizable)
Operating Temperature (°C) -30~ 60 (Recommend 10~ 35)
Allowable Humidity Range(%RH) <85
Storage Temperature(°C) -20~65(Recommend 10~ 35)
Charging Temperature(°C) 0~55
Discharging Temperature(°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling / Intelligent Fan
Cycle Life 5000+Times at 80% DOD
Maximum Dimension(D*W*H)mm 682*510*246
Weight(kg) 93
Note:
The above data is for reference only. In case of any changes, no further notice will be given.
