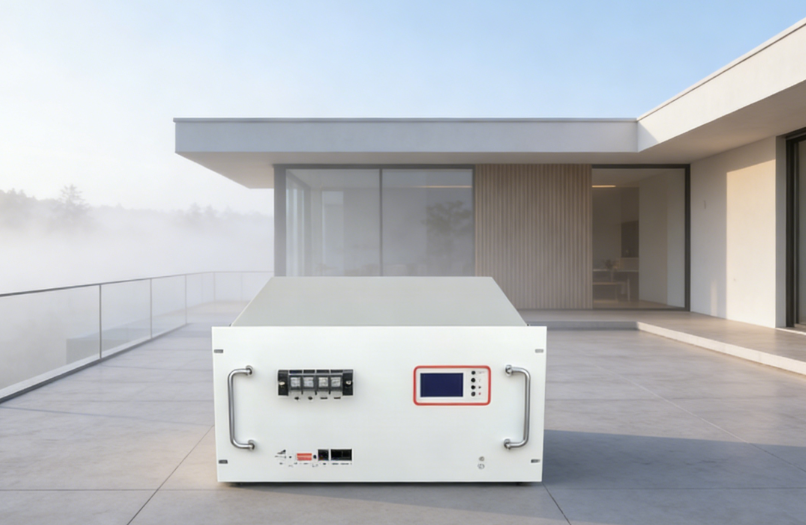

5000 Cycles Scalable Energy Storage 25.6V 200Ah LiFePO4 Server Rack Batteries
5000 Cycles Scalable Energy Storage 25.6V 200Ah LiFePO4 Server Rack Batteries
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$700-900
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Cooling Method :
Natural Air Cooling / Intelligent Fan
Nominal Energy (kWh) :
5.12
Operating Voltage Range (M） :
22.4~29.2
Maximum Continuous Charge/Discharge Current (A) :
1C (Customizable)
Description
24V 200Ah LiFePO₄ Deep Cycle Battery
High Capacity & Scalable Energy Storage Solution
This 24V 200Ah LiFePO₄ deep cycle battery features high-quality cells in series-parallel configuration and an advanced Battery Management System (BMS). Designed as a reliable, long-life, large-capacity energy storage solution, it can function as an independent DC power supply or be paralleled with multiple units to create higher-power energy storage systems. Ideal for communication base stations, data centers, residential and industrial energy storage, RV/Marine applications, and seamlessly integrates with UPS and photovoltaic power generation equipment.
Key Features
  • Compact size and lightweight design for easy transport and installation, saving valuable space
  • Integrated LED display with direct inverter communication for real-time battery status monitoring
  • Standard cycle life exceeding 5,000 cycles, significantly outperforming traditional lead-acid batteries
  • Supports multi-unit parallel operation with automatic addressing for flexible capacity expansion
  • Simple installation process and convenient operation & maintenance, reducing deployment costs
Application Scenarios
  • Communication base station backup power
  • Data center standby power
  • Residential energy storage power supply
  • Industrial energy storage power supply
  • RV/Marine energy storage systems
  • Photovoltaic energy storage
  • UPS backup power supply
5000 Cycles Scalable Energy Storage 25.6V 200Ah LiFePO4 Server Rack Batteries
Technical Specifications
Model CH--GBP24-200R
Nominal Voltage (V) 25.6
Cell Specification 100
Nominal Capacity (Ah) 200
Nominal Energy (kWh) 5.12
Operating Voltage Range (V) 22.4~29.2
Recommended Charging Voltage (V) 27.6
Recommended Discharge Cut-off Voltage (V) 24
Standard Charge/Discharge Current (A) 0.5C
Maximum Continuous Charge/Discharge Current (A) 1C (Customizable)
Operating Temperature (°C) -30~60 (Recommend 10~35)
Allowable Humidity Range (%RH) <85
Storage Temperature (°C) -20~65 (Recommend 10~35)
Charging Temperature (°C) 0~55
Discharging Temperature (°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling / Intelligent Fan
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension (D*W*H) mm 689*495*162
Weight (kg) 49
Note: The above data is for reference only. In case of any changes, no further notice will be given.
