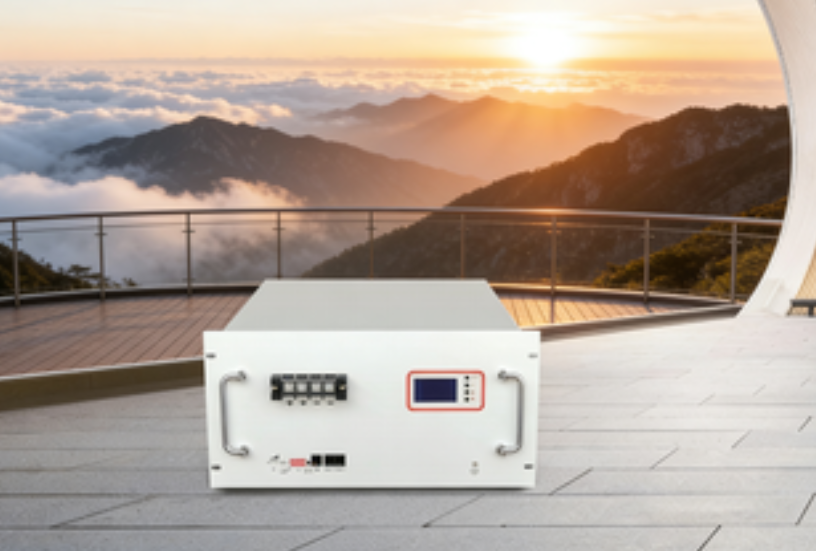

9.6kwh Rackmount LiFePO4 Battery 48V 200Ah Server Rack Battery For Solar
9.6kwh Rackmount LiFePO4 Battery 48V 200Ah Server Rack Battery For Solar
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$1100-1300
Payment Terms :
D/A,L/C,D/P,T/T,Western Union
Allowable Humidity Range(%RH) :
<85
Discharging Temperature(°C) :
-10~55
Protection Level :
IP20
Cooling Method :
Natural Air Cooling / Intelligent Fan
Description
48V 200Ah 9.6kWh Rack Mount LiFePO4 Battery
Server Rack Energy Storage Battery for Solar & UPS Applications
This 48V 200Ah rack-mounted energy storage battery utilizes high-performance LiFePO4 cells and an intelligent BMS battery management system. Featuring a standard server rack structure design, it offers easy installation, management, and expansion capabilities. With exceptional safety, long cycle life, stable discharge performance, and strong compatibility, it is ideal for solar energy storage systems, communication base stations, data centers, UPS backup power, industrial energy storage, and various other applications.
Key Features
  • Standard rack-mounted design for easy installation in server cabinets
  • Built-in smart BMS with comprehensive protection: overcharge, over-discharge, over-current, and short circuit
  • 48V 200Ah large capacity with stable output and long service life
  • Up to 5000+ deep cycles with low self-discharge and maintenance-free operation
  • Supports parallel expansion for large-scale energy storage systems
Application Scenarios
  • Solar photovoltaic energy storage systems
  • Data center & UPS backup power
  • Telecom base station backup power
  • Industrial & commercial energy storage
  • Off-grid & microgrid power supply
9.6kwh Rackmount LiFePO4 Battery 48V 200Ah Server Rack Battery For Solar
Technical Specifications
Model CH--GBP48-200R
Nominal Voltage (V) 48
Cell Specification 100
Nominal Capacity (Ah) 200
Nominal Energy (kWh) 9.6
Operating Voltage Range (V) 42~54.75
Recommended Charging Voltage (V) 51.75
Recommended Discharge Cut-off Voltage (V) 45
Standard Charge/Discharge Current (A) 0.5C
Maximum Continuous Charge/Discharge Current (A) 1C (Customizable)
Operating Temperature (°C) -30~60 (Recommend 10~35)
Allowable Humidity Range(%RH) <85
Storage Temperature(°C) -20~65 (Recommend 10~35)
Charging Temperature(°C) 0~55
Discharging Temperature(°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling / Intelligent Fan
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension(D*W*H)mm 682*510*246
Weight(kg) 93
Note: The above data is for reference only. In case of any changes, no further notice will be given.
