Factory&Customizable & Balanced BLDC Drive 70mm Hall Sensor 150W Hub Motor W/ PU Wheel for RC E-Scooter Skateboard Mountainboard
Factory&Customizable & Balanced BLDC Drive 70mm Hall Sensor 150W Hub Motor W/ PU Wheel for RC E-Scooter Skateboard Mountainboard
Factory&Customizable & Balanced BLDC Drive 70mm Hall Sensor 150W Hub Motor W/ PU Wheel for RC E-Scooter Skateboard Mountainboard
Factory&Customizable & Balanced BLDC Drive 70mm Hall Sensor 150W Hub Motor W/ PU Wheel for RC E-Scooter Skateboard Mountainboard
Factory&Customizable & Balanced BLDC Drive 70mm Hall Sensor 150W Hub Motor W/ PU Wheel for RC E-Scooter Skateboard Mountainboard
Factory&Customizable & Balanced BLDC Drive 70mm Hall Sensor 150W Hub Motor W/ PU Wheel for RC E-Scooter Skateboard Mountainboard
Factory&Customizable & Balanced BLDC Drive 70mm Hall Sensor 150W Hub Motor W/ PU Wheel for RC E-Scooter Skateboard Mountainboard
Factory&Customizable & Balanced BLDC Drive 70mm Hall Sensor 150W Hub Motor W/ PU Wheel for RC E-Scooter Skateboard Mountainboard
Factory&Customizable & Balanced BLDC Drive 70mm Hall Sensor 150W Hub Motor W/ PU Wheel for RC E-Scooter Skateboard Mountainboard
Factory&Customizable & Balanced BLDC Drive 70mm Hall Sensor 150W Hub Motor W/ PU Wheel for RC E-Scooter Skateboard Mountainboard
Factory&Customizable & Balanced BLDC Drive 70mm Hall Sensor 150W Hub Motor W/ PU Wheel for RC E-Scooter Skateboard Mountainboard
Factory&Customizable & Balanced BLDC Drive 70mm Hall Sensor 150W Hub Motor W/ PU Wheel for RC E-Scooter Skateboard Mountainboard
Specifications
Motor Mounting Type :
Flange Mount
Type :
DC Brushless Motor
Motor KV: :
90 kv or customized
Place of Origin :
Guangdong, China
Warranty :
12 months
Efficiency :
90%
Lipo Cell: :
21-37 V DC
Appearance Customization :
YES
Construction :
Permanent Magnet
Rated Power :
150W
Max Continuous Current: :
18A
Dynamic balance :
YES
Testing :
YES
Model Number :
BL70mm
Frame :
NO
Usage :
Electric Bicycle, Home Appliance, electric skateboard
Packaging Details :
Conventional Paper Boxes&Customization
Protect Feature :
Drip-proof
Torque :
0.9 N/m(0.01lbf/in)
Price :
Contact us,get the best price
Payment Terms :
D/A,D/P,T/T,Paypal
Speed(RPM) :
1800(RPM)-3500(RPM)
Brand Name :
HOBBYSKY
MOQ :
Low MOQ
Max speed: :
18 km/h
Delivery Time :
1-2weeks after payment done
Supply Ability :
5000pcs per Month
Shaft diameter: :
8mm
Weight: :
610g
KV customization :
YES
Torque: :
0.9N/m
Continuous Current(A) :
18(A)
Max Load: :
65 kg
Certification :
CCC/ce/RoHS
Rated voltage :
Dc 36V
Commutation :
Brushless
Battery: :
24V/36V/48V lithium battery
Description

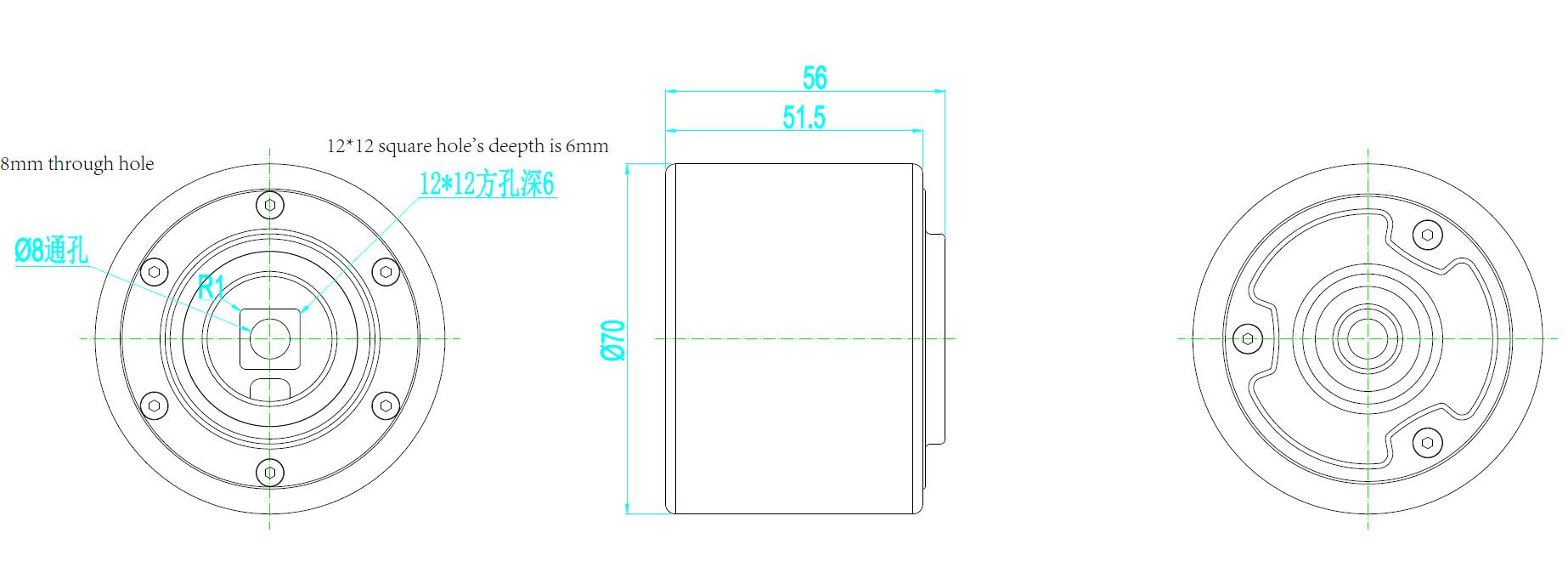

Outline drawing
Factory&Customizable & Balanced BLDC Drive 70mm Hall Sensor 150W Hub Motor W/ PU Wheel for RC E-Scooter Skateboard Mountainboard
Products Description
Motor KV: 90kv or customized
No load current: 1A max Max
Continuous Current: 18A
Torque: 5N/m
Battery: 24V/36V/48V lithium battery
Shaft diameter: 8mm Dimension: 70 x 56mm
highest power: 150W Tire: PU 70 mm
Motor type: hub motor
Drive Model: shaft drive
Max speed: 18 km/h
Climbing Gradient: 8 degree for 50 kg rider
Max Load: 65 kg G.W/N.
W: 650/584gs
material: aluminium alloy+PU
User age: >8 years old

Hall sensor wiring:
