Specifications
Motor Mounting Type :
Flange Mount
Usage :
Boat, Car, Electric Bicycle, Model airplane, scooter, bicycle assist, electric car modification, surfboard
No load Current (Io/5V) :
0.8-2.2A
Dynamic balance :
YES
Motor KV :
170kv-330kv
Testing :
YES
Efficiency :
90%
Weight :
810g
Model Number :
HS6374s
Frame :
NO
Warranty :
3 months ~ 1 year
Brand Name :
HOBBYSKY
Place of Origin :
Guangdong, China
MOQ :
Low MOQ
Protect Feature :
Drip-proof
Type :
DC Brushless Motor
Construction :
Permanent Magnet
Rated Power :
2800W
Lipo Cell :
3-10S
KV customization :
YES
Payment Terms :
D/A,D/P,T/T,Paypal
Price :
Contact us,get the best price
Speed(RPM) :
7000(RPM)-9000(RPM)
Packaging Details :
Conventional Paper Boxes&Customization
Certification :
CCC/ce/RoHS
Banana head :
4.0
Delivery Time :
1-2weeks after payment done
Appearance Customization :
YES
Shaft diameter :
10mm
Continuous Current(A) :
40(A)
Max Continuous Current :
120A
Torque :
2-3N/m, 2-3N/m
Commutation :
Brushless
Bolt holes spacing :
44mm/30
Supply Ability :
5000pcs per Month
Description

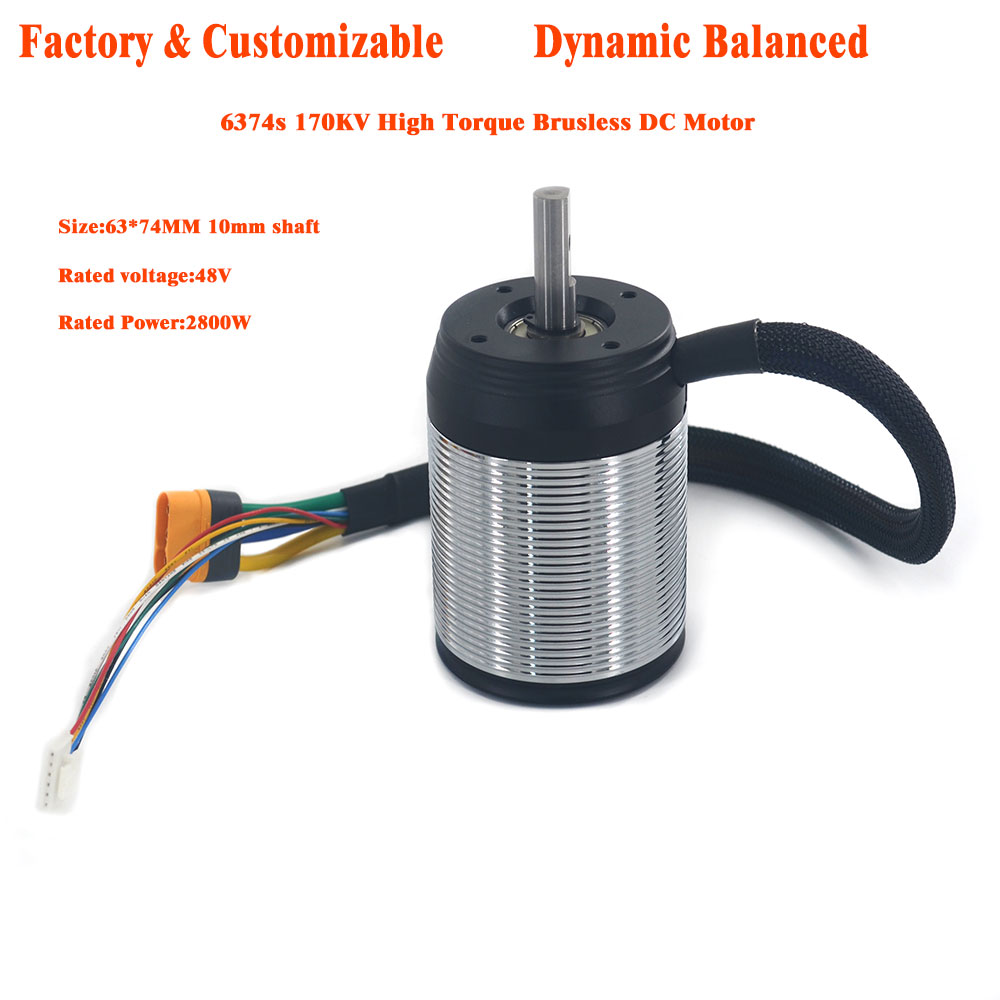

Products DescriptionHobbysky Powerfull High Efficiency Brushless 6374S Motor Hall Sensor for Electric Scooter E-Bike Surfboard Skateboard Longboard
MODEL:
6374S
MOTORKV:
170-330kv
No LOAD CURRENT:
0.8-2.2A
LIPO CELL:
3-12S
WEIGHT:
810G
MAX CONTINUOUS CURRENT:
120A
MAX CONTINUOUS POWER:
2800W
RECOMMENDED VOLTAGE:
24-50V
CONFIGU-RATION:
12N

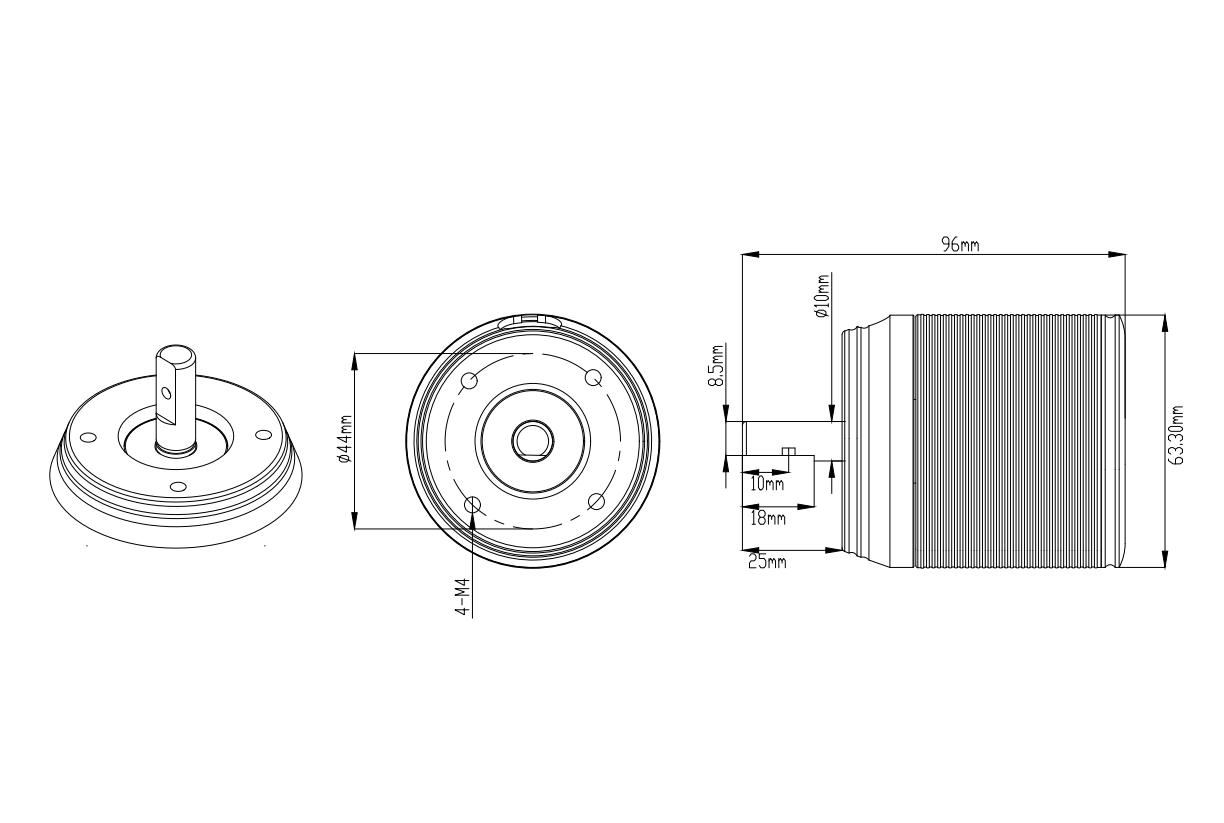

MOTOR DIAMETER:
63mm
MOTOR BODY LENGTH:
71mm
OUT SHAFT LENGTH:
31mm
FLAT POSITION:
26mm

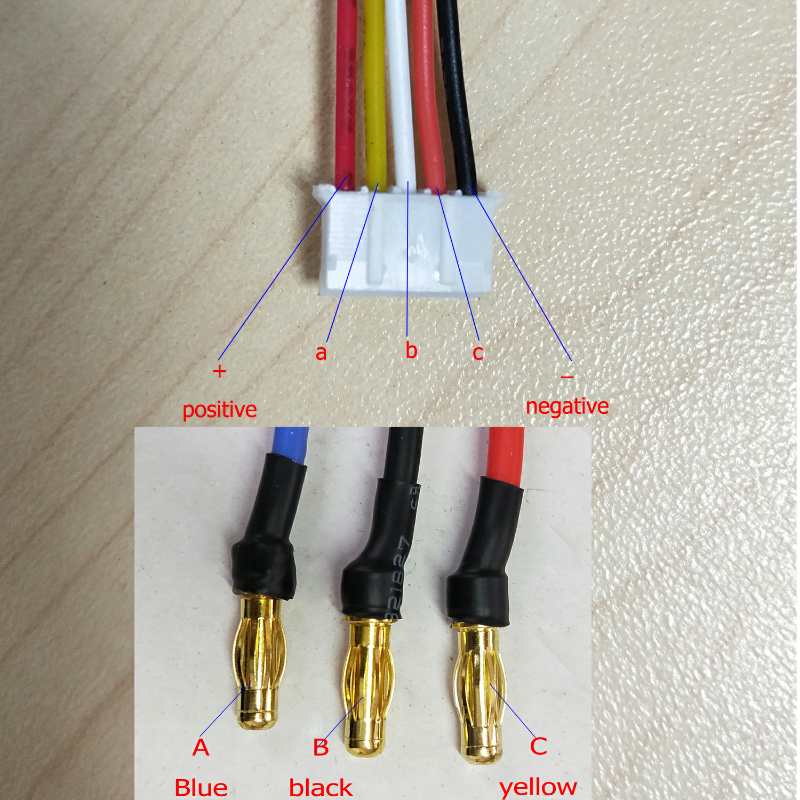

Hall sensor wiring:


Hobbysky Powerfull High Efficiency Brushless 6374S Motor Hall Sensor for Electric Scooter E-Bike Surfboard Skateboard Longboard
Hobbysky Powerfull High Efficiency Brushless 6374S Motor Hall Sensor for Electric Scooter E-Bike Surfboard Skateboard Longboard
Hobbysky Powerfull High Efficiency Brushless 6374S Motor Hall Sensor for Electric Scooter E-Bike Surfboard Skateboard Longboard
Hobbysky Powerfull High Efficiency Brushless 6374S Motor Hall Sensor for Electric Scooter E-Bike Surfboard Skateboard Longboard

Product Description.

HS6374S motor is a good choice for assembling off-road scooters or modifying scooters. With high torque and fast speed, 6374 brushless motor can also be used for DIY modification of underwater thrusters and bicycles. Main scope of application: model airplanes, drones, electric skateboard/longboard, lawn mowers, underwater propellers, etc. The HS6374S motor is a good choice for assembling off-road electric skateboard or city street scooters. The motor has high torque and high speed, which can also be used for underwater propellers and e-bike DIY modification! Processing customization: Yes, it can be customized according to requirements. Performance parameters can be customized according to your requirements. Welcome to customize with drawings and samples. Factory direct sales: KV value can be according to your requirements, appearance can also be according to your requirements, can be potted and waterproof. Mass production: shaft diameter: 8mm 10mm Name:Hobbysky HS6374S 170KV 190KV 230KV Brushless Outrunner Belt Motor Belt Sensored & Sensorless Motor with Closed Cover for DIY Electric Skateboard Electric Bike Surfboard (8mm /10mm Shaft) Specifications: Brand : Hobbysky Motor KV ………………………………...170-330(RPM/V) can be customize Shaft…………………………………………8mm&10mm Motor Size…………………………………...Φ63.0x70.0 Install Holes ………………………………...44mm Mounting hole size…………………………. M4*4 Motor Wire : 30cm Wire with 4.0mm Gold Bullet Male Connector Sensor Wire: Standard RC Sensor Wire JST-PH 5 pin 2.0mm pitch Screws………………………………… M4x8mm Metric Bolts Rated Voltage ………………………….…. 24V/36V/44.4V Rated Current ……………………………...80A Max. Current…………………………………120A Max Torque…………………………………..7N.m Input Volt. ……………………………………2-12S Lipo cell NET Weight …………………………………812g Max. Output Watt …………………………..2800W Color : Black with closed cover waterproof and dustproof Package Includes: 1pc x 6374 Brushless Motor 4pcs M4x8mm Metric Bolts ATTENTION: 1. Please make sure your motor has enough cooling while running. 2. Keep motors away from moisture, dust, scrap and small items to avoid damages. TIPS: ★ We welcome OEM orders, KV value, motor color, logo all can be customized.
