Factory &Customizable &Balanced Brushless DC Drive 7200W BL Motor 80100 W/Sensor for DIY Electric Skateboard E-bike Scooter Car
Factory &Customizable &Balanced Brushless DC Drive 7200W BL Motor 80100 W/Sensor for DIY Electric Skateboard E-bike Scooter Car
Factory &Customizable &Balanced Brushless DC Drive 7200W BL Motor 80100 W/Sensor for DIY Electric Skateboard E-bike Scooter Car
Factory &Customizable &Balanced Brushless DC Drive 7200W BL Motor 80100 W/Sensor for DIY Electric Skateboard E-bike Scooter Car
Factory &Customizable &Balanced Brushless DC Drive 7200W BL Motor 80100 W/Sensor for DIY Electric Skateboard E-bike Scooter Car
Factory &Customizable &Balanced Brushless DC Drive 7200W BL Motor 80100 W/Sensor for DIY Electric Skateboard E-bike Scooter Car
Factory &Customizable &Balanced Brushless DC Drive 7200W BL Motor 80100 W/Sensor for DIY Electric Skateboard E-bike Scooter Car
Factory &Customizable &Balanced Brushless DC Drive 7200W BL Motor 80100 W/Sensor for DIY Electric Skateboard E-bike Scooter Car
Specifications
Efficiency :
90%
Shaft diameter: :
12 mm
Dynamic balance :
YES
Place of Origin :
Guangdong, China
MOQ :
Low MOQ
Brand Name :
HOBBYSKY
Frame :
NO
Usage :
Boat, Car, Electric Bicycle, Longboard Skateboard
Testing :
YES
Protect Feature :
Drip-proof
Torque :
5-7N/m
Construction :
Permanent Magnet
Rated Power :
7200
Input voltage: :
22.2-51.8V
Certification :
ce/fcc
Motor Mounting Type :
Flange Mount
Type :
DC Brushless Motor
KV value: :
170-280KV or customize
Warranty :
3 months ~ 1 year
Appearance Customization :
YES
Model Number :
8080
Speed(RPM) :
4000-9000rpm
Delivery Time :
1-2weeks after payment done
Weight: :
1633g
Payment Terms :
D/A,D/P,T/T,Paypal
KV customization :
YES
Max power: :
7200W
Continuous Current(A) :
150(A)
maximum: :
200A
Packaging Details :
Conventional Paper Boxes&Customization
Rated voltage :
48 V DC
Price :
Contact us,get the best price
Commutation :
Brushless
Plug: :
4.0 banana head (Hall 2.0 5P plug)
Supply Ability :
5000pcs per Month
Description

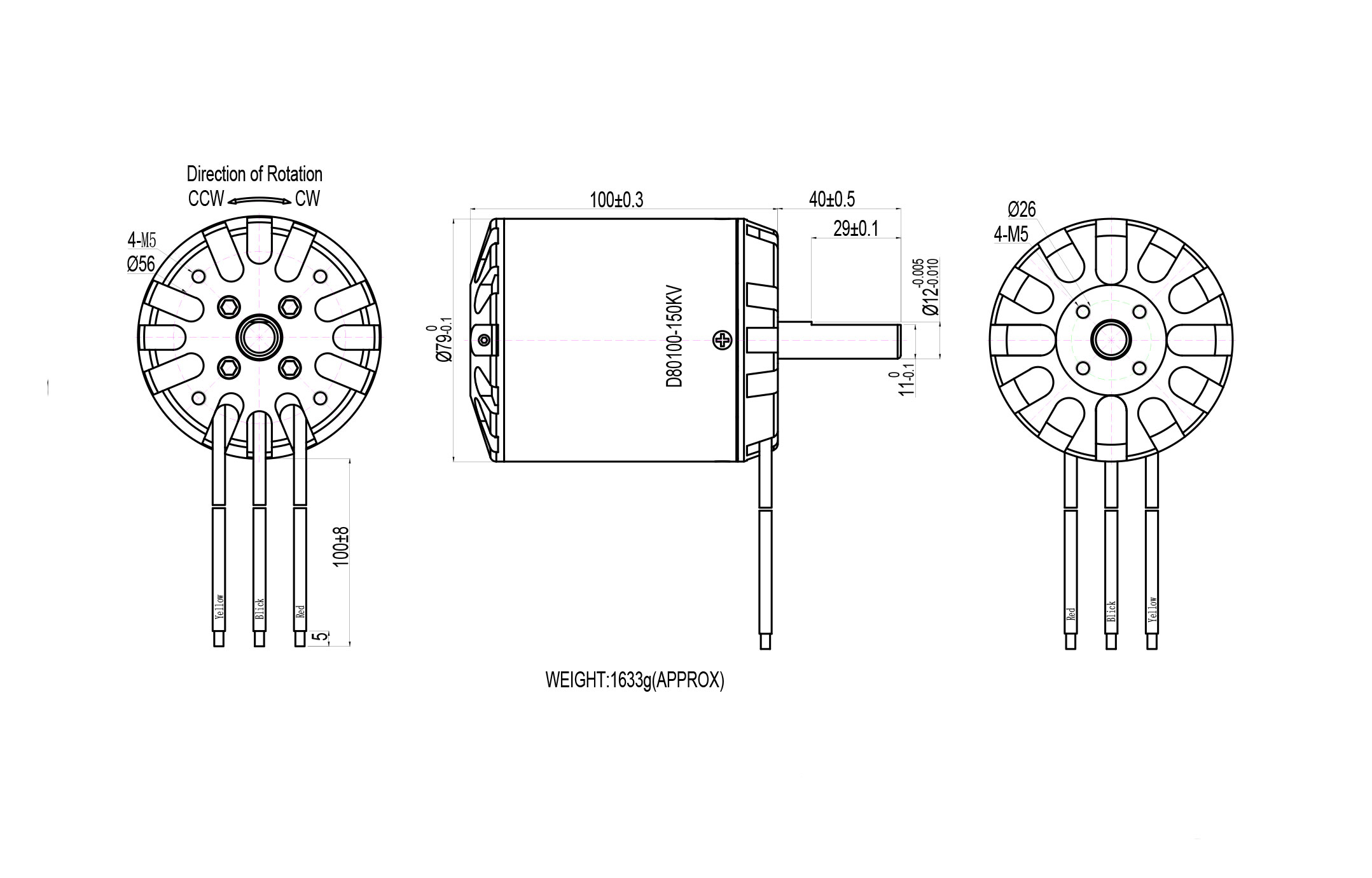

Outline drawing

Factory &Customizable &Balanced Brushless DC Drive 7200W BL Motor 80100 W/Sensor for DIY Electric Skateboard E-bike Scooter Car
Factory &Customizable &Balanced Brushless DC Drive 7200W BL Motor 80100 W/Sensor for DIY Electric Skateboard E-bike Scooter Car
Factory &Customizable &Balanced Brushless DC Drive 7200W BL Motor 80100 W/Sensor for DIY Electric Skateboard E-bike Scooter Car
Factory &Customizable &Balanced Brushless DC Drive 7200W BL Motor 80100 W/Sensor for DIY Electric Skateboard E-bike Scooter Car
Products Description
Factory &Customizable &Balanced Brushless DC Drive 7200W BL Motor 80100 W/Sensor for DIY Electric Skateboard E-bike Scooter Car

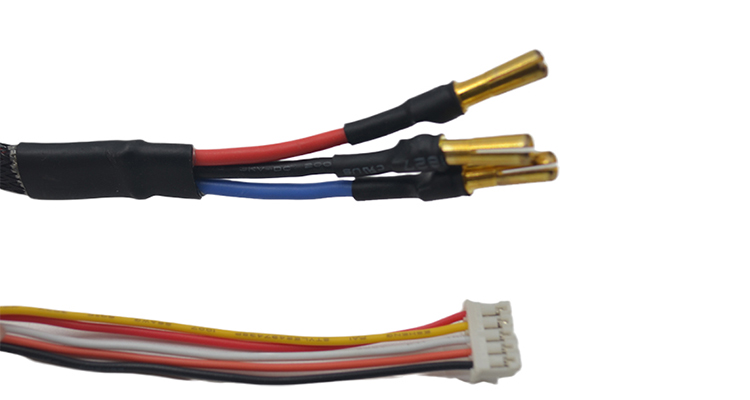

Motor Hall description
Motor phase wire: C-blue thick wire B-black thick wire A-red thick wire Hall phase wire: 5V red thin wire Negative-black thin wire C-orange thin wire B-white thin wire A-yellow thin wire
MODEL
80100
Body diameter
80mm
Body height
100mm
Shaft diameter
12mm
Flat
D type or customize
Output shaft length
40mm
Top mounting hole distance
56mm
Bottom mounting hole distance
26mm
Mounting hole size
M5*4
Banana head
4.0
Weight
1633G
Maximum power
7200W
Hall wire
customize
No-load current
1.1-2A
Maximum current
200A
Recommended voltage
22.2-51.8V
KV value
150-270KV
No-load speed
4000-9000rpm
Torque
7-9N/M

Product Description.

8080 motor is a good choice for assembling off-road scooters or modifying scooters. With high torque and fast speed, 8080 brushless motor can also be used for DIY modification of underwater thrusters and bicycles.
ATTENTION: 1. Please make sure your motor has enough cooling while running. 2. Keep motors away from moisture, dust, scrap and small items to avoid damages. TIPS: ★ We welcome OEM orders, KV value, motor color, logo all can be customized.
