High Torque & Efficiency Brushless Drive DC 6384S Motor 48V 120-330KV 4000W for Electric Scooter Skateboard Mountainboard
High Torque & Efficiency Brushless Drive DC 6384S Motor 48V 120-330KV 4000W for Electric Scooter Skateboard Mountainboard
High Torque & Efficiency Brushless Drive DC 6384S Motor 48V 120-330KV 4000W for Electric Scooter Skateboard Mountainboard
High Torque & Efficiency Brushless Drive DC 6384S Motor 48V 120-330KV 4000W for Electric Scooter Skateboard Mountainboard
High Torque & Efficiency Brushless Drive DC 6384S Motor 48V 120-330KV 4000W for Electric Scooter Skateboard Mountainboard
High Torque & Efficiency Brushless Drive DC 6384S Motor 48V 120-330KV 4000W for Electric Scooter Skateboard Mountainboard
High Torque & Efficiency Brushless Drive DC 6384S Motor 48V 120-330KV 4000W for Electric Scooter Skateboard Mountainboard
High Torque & Efficiency Brushless Drive DC 6384S Motor 48V 120-330KV 4000W for Electric Scooter Skateboard Mountainboard
High Torque & Efficiency Brushless Drive DC 6384S Motor 48V 120-330KV 4000W for Electric Scooter Skateboard Mountainboard
High Torque & Efficiency Brushless Drive DC 6384S Motor 48V 120-330KV 4000W for Electric Scooter Skateboard Mountainboard
High Torque & Efficiency Brushless Drive DC 6384S Motor 48V 120-330KV 4000W for Electric Scooter Skateboard Mountainboard
High Torque & Efficiency Brushless Drive DC 6384S Motor 48V 120-330KV 4000W for Electric Scooter Skateboard Mountainboard
Specifications
Efficiency :
90%
Shaft diameter: :
10.0MM
Construction :
Permanent Magnet
Protect Feature :
Drip-proof
Input voltage: :
22.2-51.8 (V)
Frame :
N
Usage :
Boat, Car, Electric Bicycle, Longboard Skateboard
Delivery Time :
1-2weeks after payment done
KV customization :
YES
Motor Mounting Type :
Foot Mount
Torque :
5-7N/m(0.03-0.04lbf/in)
Payment Terms :
D/A,D/P,T/T,Paypal
Brand Name :
HOBBYSKY
IP Rating :
IP65
Type :
DC Brushless Motor
KV value: :
120KV-330KV
Packaging Details :
Conventional Paper Boxes&Customization
Supply Ability :
5000pcs per Month
Place of Origin :
Guangdong, China
Warranty :
12 months
Appearance Customization :
YES
Certification :
ce/RoHS
No-load current (24V): :
0.8-2.2(A)
Continuous Current(A) :
120(A)
maximum: :
120 (A)
Rated Power :
4000 W
MOQ :
Low MOQ
Speed(RPM) :
8000-9600rpm
Applicable drive: :
scooter controller, ESC (80-200A)
Weight: :
945g
Testing :
YES
Price :
Contact us,get the best price
Material: :
Aluminum alloy
Model Number :
6384s
Commutation :
Brushless
Max power: :
4000W
Dynamic balance :
YES
Description

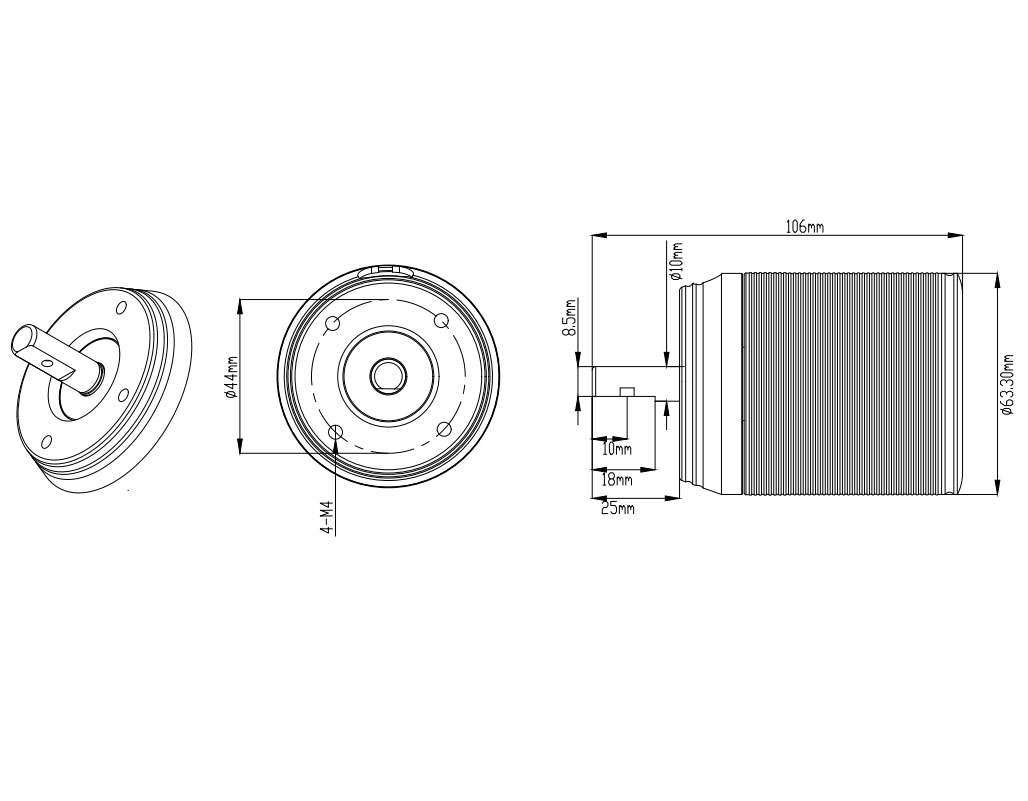

Outline drawingHigh Torque & Efficiency Brushless Drive DC 6384S Motor 48V 120-330KV 4000W for Electric Scooter Skateboard Mountainboard
Products Description
High Torque & Efficiency Brushless Drive DC 6384S Motor 48V 120-330KV 4000W for Electric Scooter Skateboard Mountainboard
High Torque & Efficiency Brushless Drive DC 6384S Motor 48V 120-330KV 4000W for Electric Scooter Skateboard Mountainboard

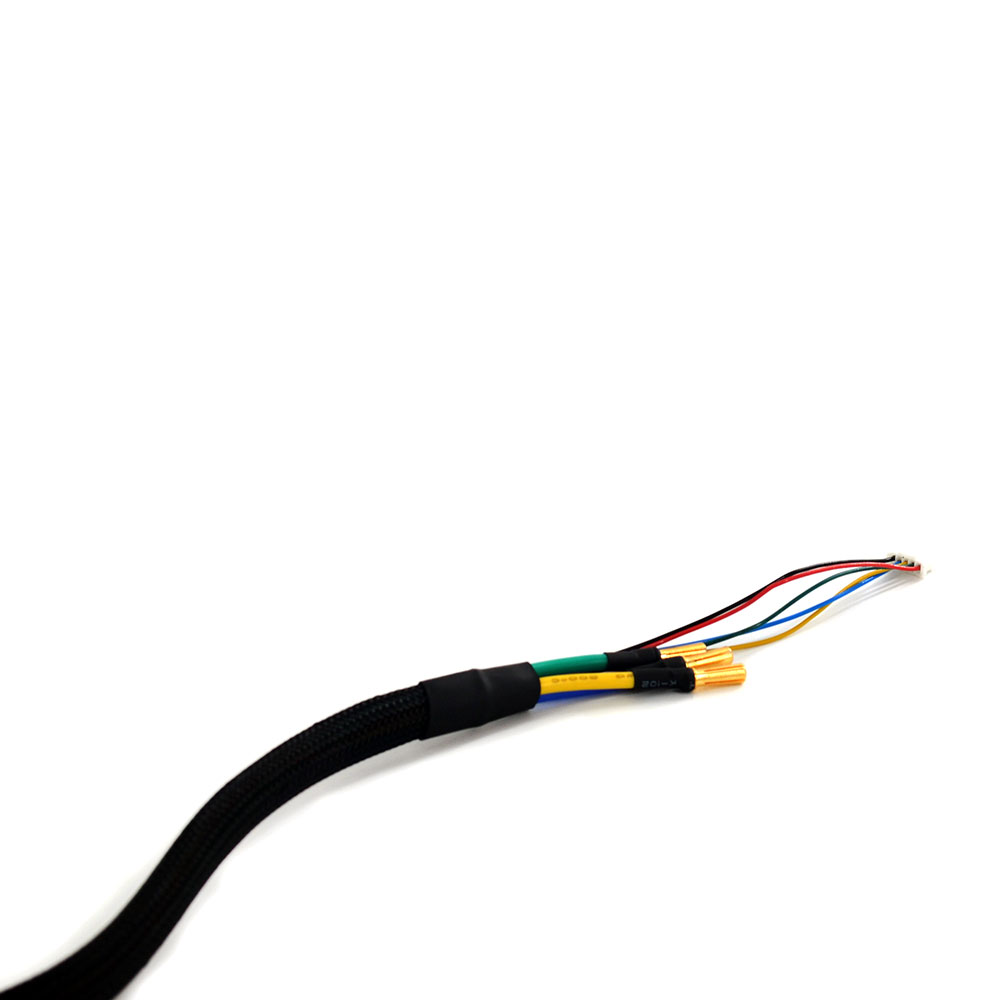

Motor Hall description
Motor phase wire: C-blue thick wire B-black thick wire A-red thick wire Hall phase wire: 5V red thin wire Negative-black thin wire C-orange thin wire B-white thin wire A-yellow thin wire
High Torque & Efficiency Brushless Drive DC 6384S Motor 48V 120-330KV 4000W for Electric Scooter Skateboard Mountainboard
High Torque & Efficiency Brushless Drive DC 6384S Motor 48V 120-330KV 4000W for Electric Scooter Skateboard Mountainboard
High Torque & Efficiency Brushless Drive DC 6384S Motor 48V 120-330KV 4000W for Electric Scooter Skateboard Mountainboard

Product Description.

6384 motor is a good choice for assembling off-road scooters or modifying scooters. With high torque and fast speed, 6384 brushless motor can also be used for DIY modification of underwater thrusters and bicycles. Main scope of application: model airplanes, drones, electric skateboard/longboard, lawn mowers, underwater propellers, etc. The 6384 motor is a good choice for assembling off-road electric skateboard or city street scooters. The motor has high torque and high speed, which can also be used for underwater propellers and e-bike DIY modification! Processing customization: Yes, it can be customized according to requirements. Performance parameters can be customized according to your requirements. Welcome to customize with drawings and samples. Factory direct sales: KV value can be according to your requirements, appearance can also be according to your requirements, can be potted and waterproof. Mass production: shaft diameter: 10mm Name:Hobbysky 6374 170KV 190KV 230KV Brushless Outrunner Belt Motor Belt Sensored & Sensorless Motor with Closed Cover for DIY Electric Skateboard Electric Bike Surfboard (8mm /10mm Shaft) Specifications: Brand : Hobbysky Body diameter 63mm Body height 80mm Shaft diameter 10mm Flat thickness 9mm Output shaft length 30mm Flat length 28mm Top mounting hole distance 44/30mm Bottom mounting hole distance 22mm Mounting hole size M4*4 Banana head 4 Weight 945G Maximum power 4000W Hall angle 60 degrees No-load current 0.8-2.2A Maximum current 120A Recommended voltage 22.2-51.8V KV value 120-200KV No-load speed 8000-9600rpm Torque 5-7N/M
Package Includes: 1pc x 6384 Brushless Motor ATTENTION: 1. Please make sure your motor has enough cooling while running. 2. Keep motors away from moisture, dust, scrap and small items to avoid damages. TIPS: ★ We welcome OEM orders, KV value, motor color, logo all can be customized.
