Factory & Customizable & Balanced 12S 190KV to 270KV Brushless DC 6354 Motor for Mountainboard/e-skateboard/electric Scooter
Factory & Customizable & Balanced 12S 190KV to 270KV Brushless DC 6354 Motor for Mountainboard/e-skateboard/electric Scooter
Factory & Customizable & Balanced 12S 190KV to 270KV Brushless DC 6354 Motor for Mountainboard/e-skateboard/electric Scooter
Factory & Customizable & Balanced 12S 190KV to 270KV Brushless DC 6354 Motor for Mountainboard/e-skateboard/electric Scooter
Factory & Customizable & Balanced 12S 190KV to 270KV Brushless DC 6354 Motor for Mountainboard/e-skateboard/electric Scooter
Factory & Customizable & Balanced 12S 190KV to 270KV Brushless DC 6354 Motor for Mountainboard/e-skateboard/electric Scooter
Factory & Customizable & Balanced 12S 190KV to 270KV Brushless DC 6354 Motor for Mountainboard/e-skateboard/electric Scooter
Factory & Customizable & Balanced 12S 190KV to 270KV Brushless DC 6354 Motor for Mountainboard/e-skateboard/electric Scooter
Specifications
Brand Name :
hobbysky
Rated voltage :
36V
Machine Height :
54mm
Top mounting hole spacing :
44/30 mm
Output axis length :
28 mm
Efficiency :
IE 1
maximum power :
2650W
Type :
Brushless Motor
Fuselage diameter :
63 mm
Testing :
YES
Motor Mounting Type :
Foot Mount
Usage :
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home
weight :
558g
Packaging Details :
Conventional Paper Boxes&Customization
Model Number :
6354
Rated Power :
2650W
Axle Diameter :
8/10 mm
KV customization :
YES
Place of Origin :
Guangdong, China
Supply Ability :
5000pcs per Month
Speed(RPM) :
9720
MOQ :
Low MOQ
Appearance Customization :
YES
Frame :
NO
Voltage :
36V
Dynamic balance :
YES
Payment Terms :
D/A,D/P,T/T,Paypal
Maximum current :
100A
Price :
Contact us,get the best price
Delivery Time :
1-2weeks after payment done
Continuous Current(A) :
100A
No-load current :
1.7A
Warranty :
3 Months
Description
Specification

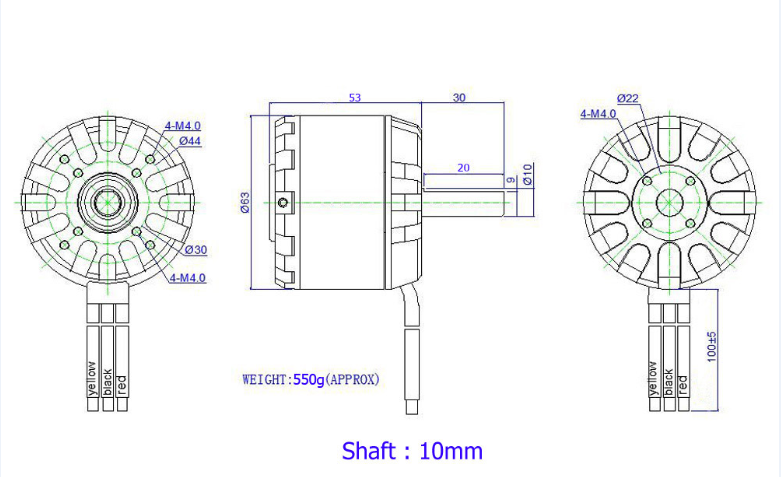

Fuselage diameter
63 mm
Axle Diameter
8/10 mm
Machine Height
54mm
Output axis length
28 mm
Top mounting hole spacing
44/30 mm
Installation hole size
M4*4
Banana head
4.0mm(can be customize but need you provide)
weight
558g
maximum power
2650W
Hall angle
75
No-load current
1.7A
Maximum current
100A
Recommended Voltage
24-36V
KV value
190-270KV
Configu-ration
12N
No-load speed
9720 rpm
Stator Thickness
4mm
Factory & Customizable & Balanced 12S 190KV to 270KV Brushless DC 6354 Motor for Mountainboard/e-skateboard/electric Scooter

Hall sensor wiring:


Factory & Customizable & Balanced 12S 190KV to 270KV Brushless DC 6354 Motor for Mountainboard/e-skateboard/electric Scooter
