Factory & Customizable & Balanced Brushless Dc Drive Motor 24V 5065 Belt Electric Skateboard Motor for Scooter Skateboard Drone
Factory & Customizable & Balanced Brushless Dc Drive Motor 24V 5065 Belt Electric Skateboard Motor for Scooter Skateboard Drone
Factory & Customizable & Balanced Brushless Dc Drive Motor 24V 5065 Belt Electric Skateboard Motor for Scooter Skateboard Drone
Factory & Customizable & Balanced Brushless Dc Drive Motor 24V 5065 Belt Electric Skateboard Motor for Scooter Skateboard Drone
Factory & Customizable & Balanced Brushless Dc Drive Motor 24V 5065 Belt Electric Skateboard Motor for Scooter Skateboard Drone
Factory & Customizable & Balanced Brushless Dc Drive Motor 24V 5065 Belt Electric Skateboard Motor for Scooter Skateboard Drone
Factory & Customizable & Balanced Brushless Dc Drive Motor 24V 5065 Belt Electric Skateboard Motor for Scooter Skateboard Drone
Factory & Customizable & Balanced Brushless Dc Drive Motor 24V 5065 Belt Electric Skateboard Motor for Scooter Skateboard Drone
Factory & Customizable & Balanced Brushless Dc Drive Motor 24V 5065 Belt Electric Skateboard Motor for Scooter Skateboard Drone
Factory & Customizable & Balanced Brushless Dc Drive Motor 24V 5065 Belt Electric Skateboard Motor for Scooter Skateboard Drone
Specifications
MOQ :
Low MOQ
Rated voltage :
Dc 24V
Output shaft length :
24mm
No-load current :
1.8A
Testing :
YES
KV customization :
YES
Model Number :
5065
Bottom mounting hole spacing :
M4*4*30
Price :
Contact us,get the best price
Efficiency :
IE 1
torque :
1.2-3N/M
Motor Mounting Type :
Foot Mount
The fuselage diameter :
450mm
Maximum current :
70A
Rated Power :
1820W
Top mounting hole spacing :
M3*4*20
Packaging Details :
Conventional Paper Boxes&Customization
Warranty :
3 Months
trunnion :
8mm
Delivery Time :
1-2weeks after payment done
Brand Name :
hobbysky
Speed(RPM) :
6484RPM
Dynamic balance :
YES
Payment Terms :
D/A,D/P,T/T,Paypal
Supply Ability :
5000pcs per Month
Place of Origin :
Guangdong, China
Continuous Current(A) :
60A
KV value :
270KV
The fuselage height :
60mm
Appearance Customization :
YES
Frame :
N
Description
Specification
Place of Origin
China
Brand Name
HOBBYSKY
Model Number
5065
Type
Outrunner bldc motor
Voltage
24-36V
is_customized
Yes
The fuselage diameter
450mm
The fuselage height
60mm
trunnion
8mm
Output shaft length
24mm
Top mounting hole spacing
M3*4*20
Bottom mounting hole spacing
M4*4*30
No-load current
2.3 A
Maximum current
80A
torque
1.2-3N/M
KV value
270KV
Speed
6480 rpm
Power
1820w (at 24v)
Weight(approx)
440g

Hall sensor wiring:


Factory & Customizable & Balanced Brushless Dc Drive Motor 24V 5065 Belt Electric Skateboard Motor for Scooter Skateboard Drone

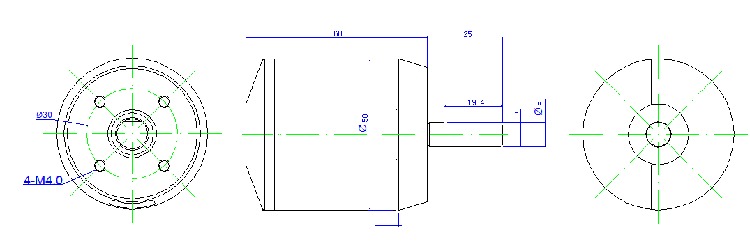

Outline drawing
Factory & Customizable & Balanced Brushless Dc Drive Motor 24V 5065 Belt Electric Skateboard Motor for Scooter Skateboard Drone
