Specifications
MOQ :
Low MOQ
Packaging Details :
Conventional Paper Boxes&Customization
Motor Mounting Type :
Flange Mount
Type :
DC Brushless Motor
Motor diameter: :
50mm
Warranty :
3 months ~ 1 year
Efficiency :
90%
Weight: :
440g
Dynamic balance :
YES
Testing :
YES
Brand Name :
HOBBYSKY
Place of Origin :
Guangdong, China
Speed(RPM) :
6480 RPM
Certification :
CCC/ce/RoHS
Construction :
Permanent Magnet
Rated Power :
1820W
Output shaft diameter: :
8mm
Frame :
No
Usage :
Boat, Car, Electric Bicycle, Home Appliance, Model airplane, scooter, bicycle assist, electric car modification, surfboard
Protect Feature :
Drip-proof
Torque :
2.8N/m
Number of poles: :
14
Continuous Current(A) :
80(A)
KV value: :
270KV or customize
KV customization :
YES
Supply Ability :
5000pcs per Month
Rated voltage :
Dc 24V
Price :
Contact us,get the best price
Delivery Time :
1-2weeks after payment done
Payment Terms :
D/A,D/P,T/T,Paypal
Output shaft length: :
20mm
Appearance Customization :
YES
Model Number :
HS5065
Commutation :
Brushless
Motor case length: :
60mm
Description

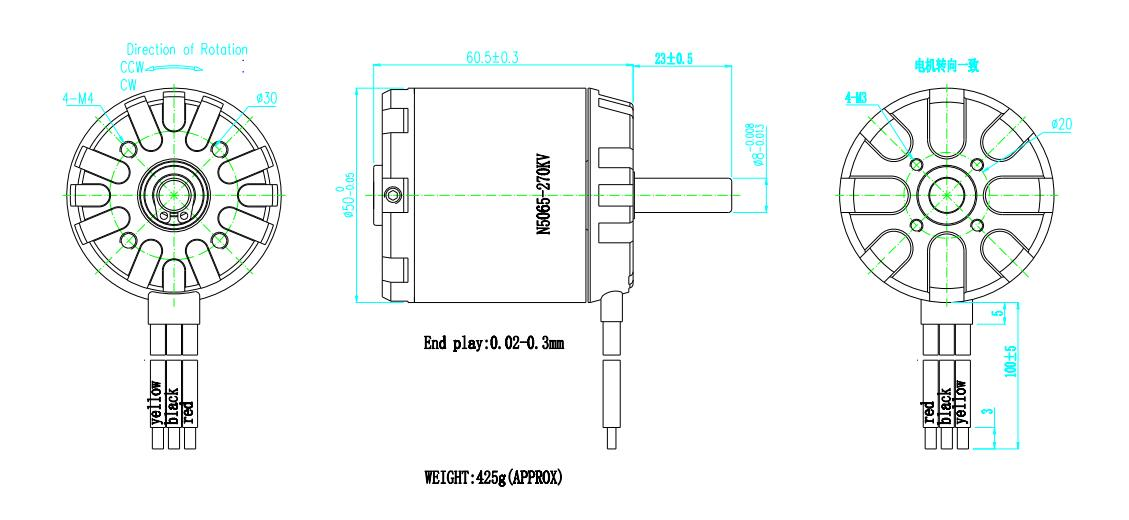

Outline drawing
Factory & Customizable & Balanced Brushless DC Drive 5065 Motor with Hall Sensor for Electric Skateboard Scooter Belt Motor Kit
Products Description


Hall sensor wiring:


Factory & Customizable & Balanced Brushless DC Drive 5065 Motor with Hall Sensor for Electric Skateboard Scooter Belt Motor Kit


Product Description.

HS5065 motor is a good choice for assembling off-road scooters or modifying scooters. With high torque and fast speed, 6374 brushless motor can also be used for DIY modification of underwater thrusters and bicycles. Main scope of application: model airplanes, drones, electric skateboard/longboard, lawn mowers, underwater propellers, etc. The HS5065 motor is a good choice for assembling off-road electric skateboard or city street scooters. The motor has high torque and high speed, which can also be used for underwater propellers and e-bike DIY modification! Processing customization: Yes, it can be customized according to requirements. Performance parameters can be customized according to your requirements. Welcome to customize with drawings and samples. Factory direct sales: KV value can be according to your requirements, appearance can also be according to your requirements, can be potted and waterproof. Mass production: shaft diameter: 8mm Name:Hobbysky HS5065 270KV 320KV Brushless Outrunner Belt Motor Belt Sensored & Sensorless Motor with Closed Cover for DIY Electric Skateboard Electric Bike Surfboard (8mm Shaft) ATTENTION: 1. Please make sure your motor has enough cooling while running. 2. Keep motors away from moisture, dust, scrap and small items to avoid damages. TIPS: ★ We welcome OEM orders, KV value, motor color, logo all can be customized.
