Factory & Customizable & Balanced Brushless DC Drive 103117 Pro Outrunner Bldc Motor for Automatic Guided Vehicle AGV Belt Kit
Factory & Customizable & Balanced Brushless DC Drive 103117 Pro Outrunner Bldc Motor for Automatic Guided Vehicle AGV Belt Kit
Factory & Customizable & Balanced Brushless DC Drive 103117 Pro Outrunner Bldc Motor for Automatic Guided Vehicle AGV Belt Kit
Factory & Customizable & Balanced Brushless DC Drive 103117 Pro Outrunner Bldc Motor for Automatic Guided Vehicle AGV Belt Kit
Factory & Customizable & Balanced Brushless DC Drive 103117 Pro Outrunner Bldc Motor for Automatic Guided Vehicle AGV Belt Kit
Factory & Customizable & Balanced Brushless DC Drive 103117 Pro Outrunner Bldc Motor for Automatic Guided Vehicle AGV Belt Kit
Factory & Customizable & Balanced Brushless DC Drive 103117 Pro Outrunner Bldc Motor for Automatic Guided Vehicle AGV Belt Kit
Factory & Customizable & Balanced Brushless DC Drive 103117 Pro Outrunner Bldc Motor for Automatic Guided Vehicle AGV Belt Kit
Factory & Customizable & Balanced Brushless DC Drive 103117 Pro Outrunner Bldc Motor for Automatic Guided Vehicle AGV Belt Kit
Factory & Customizable & Balanced Brushless DC Drive 103117 Pro Outrunner Bldc Motor for Automatic Guided Vehicle AGV Belt Kit
Factory & Customizable & Balanced Brushless DC Drive 103117 Pro Outrunner Bldc Motor for Automatic Guided Vehicle AGV Belt Kit
Factory & Customizable & Balanced Brushless DC Drive 103117 Pro Outrunner Bldc Motor for Automatic Guided Vehicle AGV Belt Kit
Specifications
Supply Ability :
5000pcs per Month
Usage :
Boat, Car, Home Appliance, Automatic Guided Vehicle AGV belt motot kit
Voltage(V) :
85V
Efficiency :
IE 2
Rated Power :
<6000W
Appearance Customization :
YES
Commutation :
Brushless
Motor Mounting Type :
Flange Mount
Certification :
ce/RoHS
Continuous Current(A) :
70A
Construction :
Permanent Magnet
Type :
Brushless motor
kv :
49kv or customize
MOQ :
Low MOQ
Speed(RPM) :
kv* voltage
Protect Feature :
Drip-proof
Torque :
20N/m
Rated voltage :
dc 85v
Maximum power :
≤6000W
Place of Origin :
Guangdong, China
Price :
Contact us,get the best price
Delivery Time :
1-2weeks after payment done
Weight :
3.2±0.5
Dynamic balance :
YES
Shaft diameter :
12MM-D
Testing :
YES
wire length :
150±3mm
Max Current(A) :
120 A
KV customization :
YES
motor diameter :
103mm
Payment Terms :
D/A,D/P,T/T,Paypal
Warranty :
12 months
Model Number :
103117
Frame :
NO
Brand Name :
HOBBYSKY
Packaging Details :
Conventional Paper Boxes&Customization
The length of the motor :
117mm
Description
Specification

Item

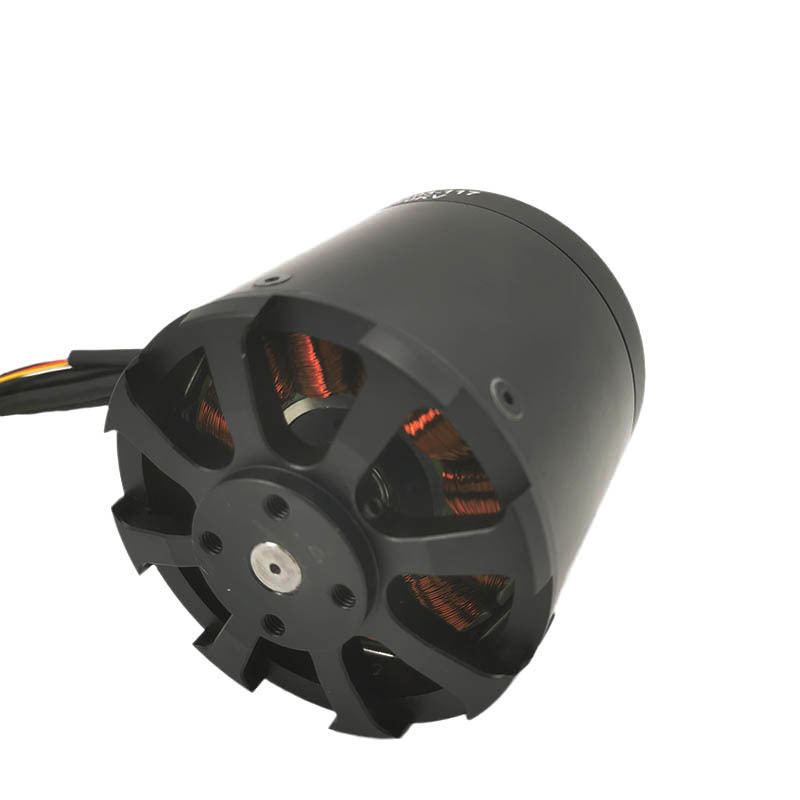

103117 pro outrunner bldc motor


Place of Origin

China


Brand

HOBBYSKY

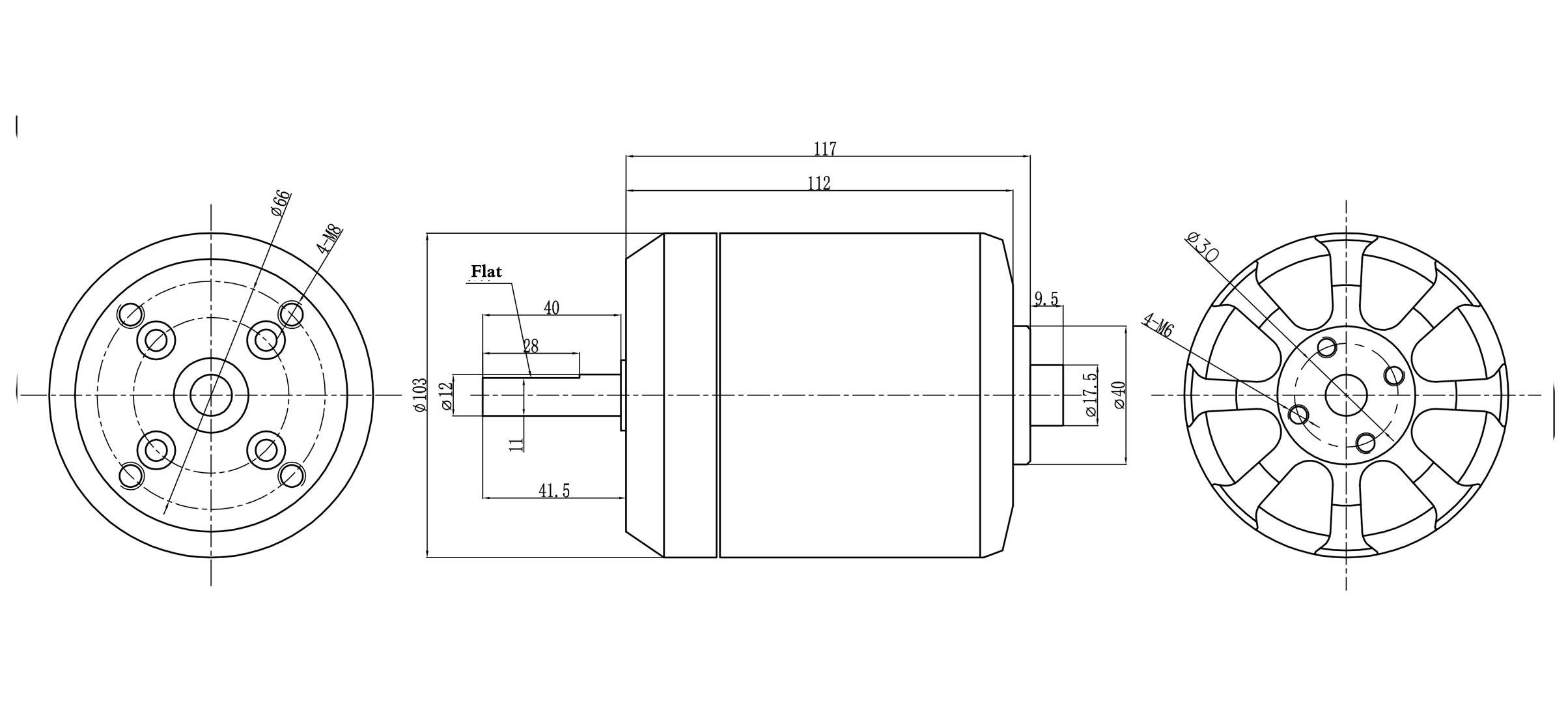

Motor Diameter(mm)

Ф103±0.05mm


Motor Length(mm)

117±0.2mm


Shaft Outer Diameter (mm)

Ф12-0.008/-0.015 mm


out Shaft Length (mm)

40±1 mm


Weight (kg)

3.2KG


Outlet Color

Connect Black Silicone Cable


Sensor

With Hall Sensors


Hot Test

The motor can work normally after 60℃ for 100 hours and room temperature for 24 hours


Maximum Power

≤6000W


Voltage (V)

85V


Max Current (A)

120 A


Rated Speed (RPM)

kv*voltage


Recommend Cell

10-20s


Product Description
Factory & Customizable & Balanced Brushless DC Drive 103117 Pro Outrunner Bldc Motor for Automatic Guided Vehicle AGV Belt Kit
