Specifications
Speed(RPM) :
4000-9000rpm
Protect Feature :
Drip-proof
Torque :
5-7N/m, 6-8 N.M
Certification :
ce
Rated voltage :
48 V DC
Weight: :
1283g
Brand Name :
HOBBYSKY
Supply Ability :
5000pcs per Month
Usage :
Boat, Car, Electric Bicycle, Longboard Skateboard
Max power: :
6200W
Price :
Contact us,get the best price
Efficiency :
90%
Rated Power :
6000W
Commutation :
Brushless
Motor Mounting Type :
Flange Mount
KV customization :
YES
Appearance Customization :
YES
Continuous Current(A) :
150(A)
Construction :
Permanent Magnet
Type :
DC Brushless Motor
Material: :
Aluminum alloy
Testing :
YES
Delivery Time :
1-2weeks after payment done
Shaft diameter: :
12 mm
maximum: :
200A
No-load current (24V): :
0.8-2A
MOQ :
Low MOQ
KV value: :
170-280KV or customize
Frame :
NO
Model Number :
8080
Payment Terms :
D/A,D/P,T/T,Paypal
Warranty :
12 months
Place of Origin :
Guangdong, China
Packaging Details :
Conventional Paper Boxes&Customization
Input voltage: :
22.2-51.8V
Dynamic balance :
YES
Description

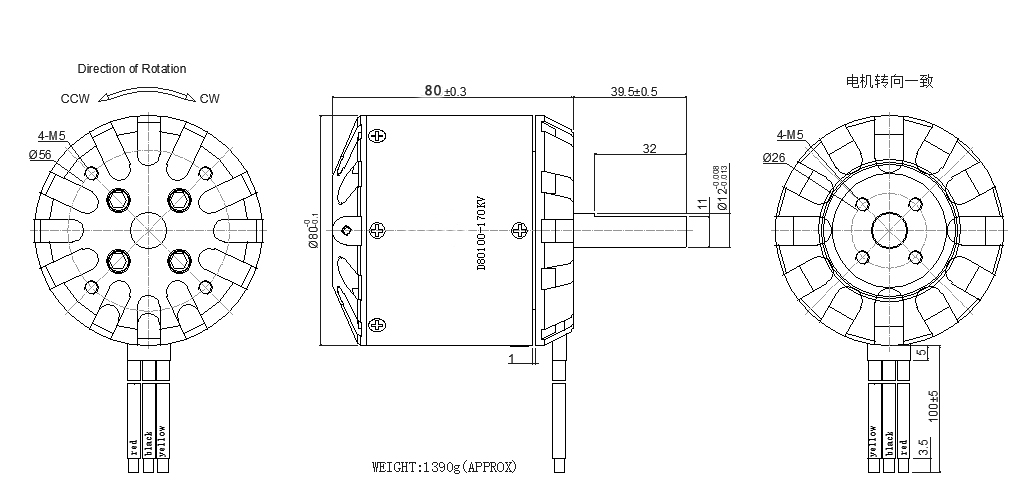

Outline drawing
Factory & Customizable & Balanced Brushless Drive Outrunner Bldc Belt 8080 Motor for DIY E-skateboard Electric Scooter Surfboard
Products Description

Motor Hall description
Motor phase wire: C-blue thick wire B-black thick wire A-red thick wire Hall phase wire: 5V red thin wire Negative-black thin wire C-orange thin wire B-white thin wire A-yellow thin wire
MODEL
8080
Body diameter
80mm
Body height
80mm
Shaft diameter
12mm
Flat
D type or customize
Output shaft length
40mm
Top mounting hole distance
56mm
Bottom mounting hole distance
26mm
Mounting hole size
M5*4
Banana head
4.0
Weight
1283G
Maximum power
6200W
Hall wire
customize
No-load current
0.8-2A
Maximum current
200A
Recommended voltage
22.2-51.8V
KV value
170-270KV
No-load speed
4000-9000rpm
Torque
6-8N/M

Product Description.

8080 motor is a good choice for assembling off-road scooters or modifying scooters. With high torque and fast speed, 8080 brushless motor can also be used for DIY modification of underwater thrusters and bicycles.
ATTENTION: 1. Please make sure your motor has enough cooling while running. 2. Keep motors away from moisture, dust, scrap and small items to avoid damages. TIPS: ★ We welcome OEM orders, KV value, motor color, logo all can be customized.
