Specifications
Place of Origin :
Guangdong, China
Rated Power :
2800W
Rated voltage :
48 V DC
Certification :
CCC/ce/RoHS
Packaging Details :
Conventional Paper Boxes&Customization
Payment Terms :
D/A,D/P,T/T,Paypal
Dynamic balance :
YES
Bolt holes spacing :
44mm/30
Construction :
Permanent Magnet
Price :
Contact us,get the best price
Testing :
YES
Supply Ability :
5000pcs per Month
KV customization :
YES
Protect Feature :
Drip-proof
Motor KV :
170kv-330kv
Max Continuous Current :
120A
Appearance Customization :
YES
Weight :
810g
Delivery Time :
1-2weeks after payment done
Continuous Current(A) :
40(A)
Speed(RPM) :
7000(RPM)-9000(RPM)
Brand Name :
HOBBYSKY
Commutation :
Brushless
Warranty :
3 months ~ 1 year
Usage :
Boat, Car, Electric Bicycle, Model airplane, scooter, bicycle assist, electric car modification, surfboard
Lipo Cell :
3-10S
Shaft diameter :
10mm
Efficiency :
90%
No load Current (Io/5V) :
0.8-2.2A
Banana head :
4.0
Frame :
NO
MOQ :
Low MOQ
Model Number :
HS6374
Torque :
2-3N/m, 2-3N/m
Type :
DC Brushless Motor
Motor Mounting Type :
Flange Mount
Description

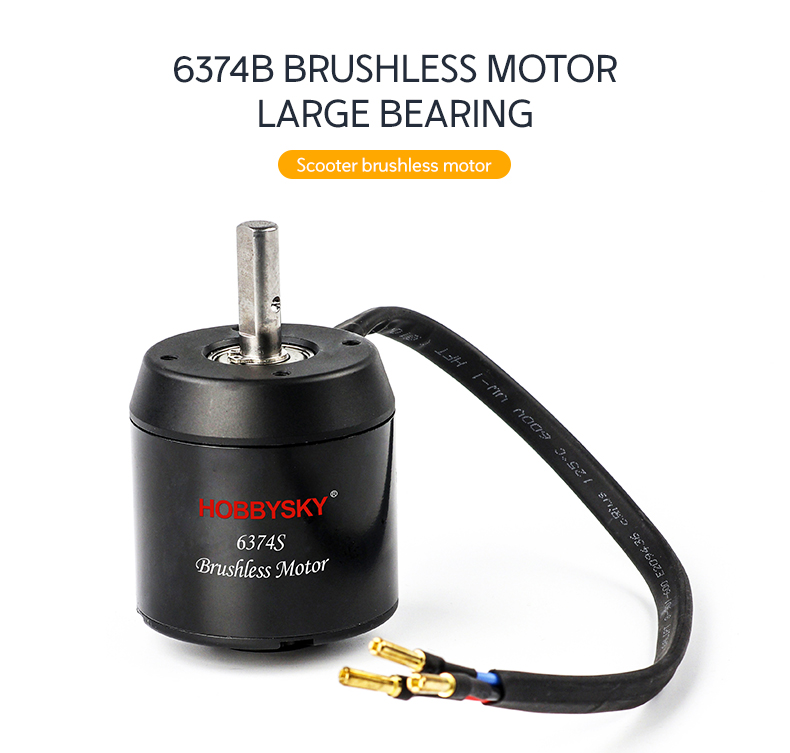

Products Description
Factory&Customizable &Balanced Brushless 6374 Motor W/Hall Sensor for Electric Scooter E-Bike Surfboard Skateboard Longboard CNC
MODEL:
HS6374S
MOTORKV:
170-330kv
No LOAD CURRENT:
0.8-2.2A
LIPO CELL:
3-12S
WEIGHT:
810G
MAX CONTINUOUS CURRENT:
120A
MAX CONTINUOUS POWER:
2800W
RECOMMENDED VOLTAGE:
24-50V
CONFIGU-RATION:
12N

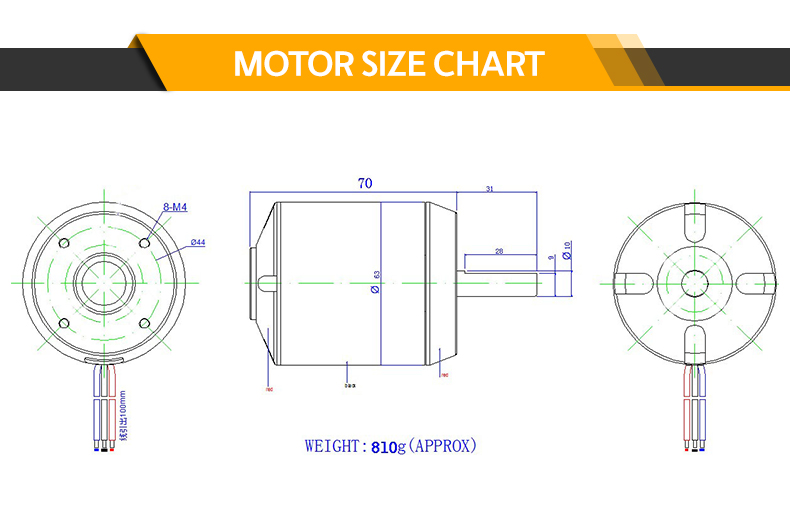

MOTOR DIAMETER:
63mm
MOTOR BODY LENGTH:
71mm
OUT SHAFT LENGTH:
31mm
FLAT POSITION:
26mm

Hall sensor wiring:

Factory&Customizable &Balanced Brushless 6374 Motor W/Hall Sensor for Electric Scooter E-Bike Surfboard Skateboard Longboard CNC
Factory&Customizable &Balanced Brushless 6374 Motor W/Hall Sensor for Electric Scooter E-Bike Surfboard Skateboard Longboard CNC
Factory&Customizable &Balanced Brushless 6374 Motor W/Hall Sensor for Electric Scooter E-Bike Surfboard Skateboard Longboard CNC
Factory&Customizable &Balanced Brushless 6374 Motor W/Hall Sensor for Electric Scooter E-Bike Surfboard Skateboard Longboard CNC

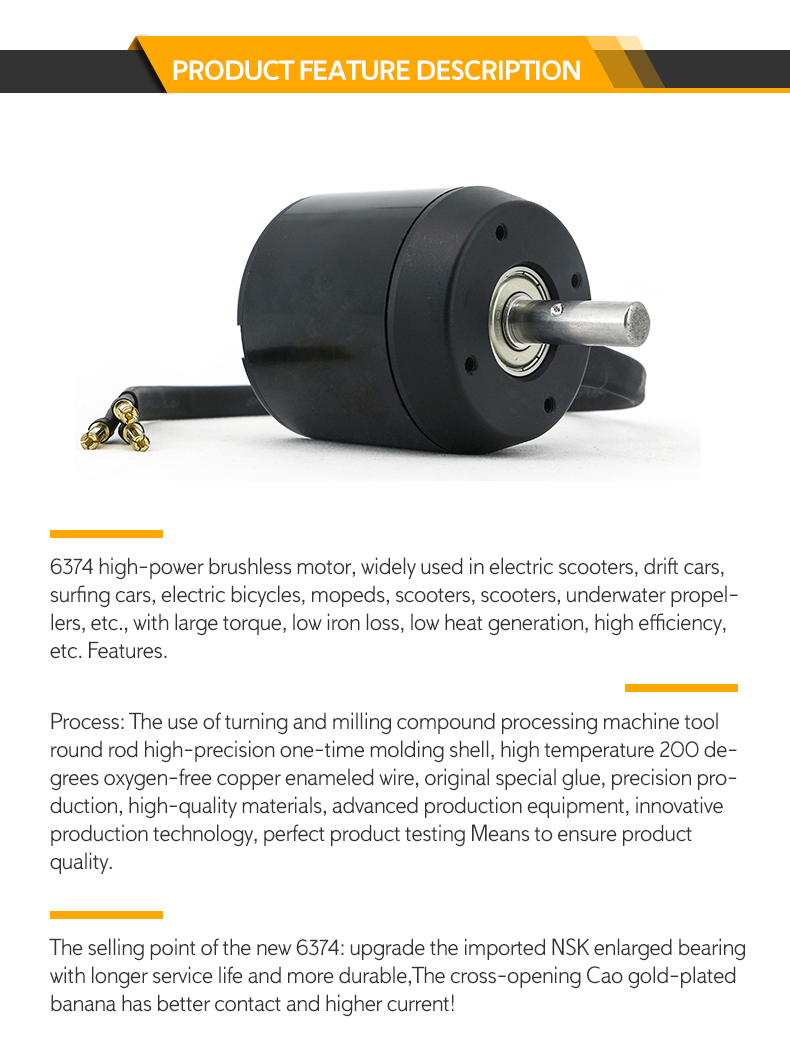

Product Description.

HS6374S motor is a good choice for assembling off-road scooters or modifying scooters. With high torque and fast speed, 6374 brushless motor can also be used for DIY modification of underwater thrusters and bicycles. Main scope of application: model airplanes, drones, electric skateboard/longboard, lawn mowers, underwater propellers, etc. The HS6374S motor is a good choice for assembling off-road electric skateboard or city street scooters. The motor has high torque and high speed, which can also be used for underwater propellers and e-bike DIY modification! Processing customization: Yes, it can be customized according to requirements. Performance parameters can be customized according to your requirements. Welcome to customize with drawings and samples. Factory direct sales: KV value can be according to your requirements, appearance can also be according to your requirements, can be potted and waterproof. Mass production: shaft diameter: 8mm 10mm Name:Hobbysky HS6374S 170KV 190KV 230KV Brushless Outrunner Belt Motor Belt Sensored & Sensorless Motor with Closed Cover for DIY Electric Skateboard Electric Bike Surfboard (8mm /10mm Shaft) Specifications: Brand : Hobbysky Motor KV ………………………………...170-330(RPM/V) can be customize Shaft…………………………………………8mm&10mm Motor Size…………………………………...Φ63.0x70.0 Install Holes ………………………………...44mm Mounting hole size…………………………. M4*4 Motor Wire : 30cm Wire with 4.0mm Gold Bullet Male Connector Sensor Wire: Standard RC Sensor Wire JST-PH 5 pin 2.0mm pitch Screws………………………………… M4x8mm Metric Bolts Rated Voltage ………………………….…. 24V/36V/44.4V Rated Current ……………………………...80A Max. Current…………………………………120A Max Torque…………………………………..7N.m Input Volt. ……………………………………2-12S Lipo cell NET Weight …………………………………812g Max. Output Watt …………………………..2800W Color : Black with closed cover waterproof and dustproof Package Includes: 1pc x 6374 Brushless Motor 4pcs M4x8mm Metric Bolts ATTENTION: 1. Please make sure your motor has enough cooling while running. 2. Keep motors away from moisture, dust, scrap and small items to avoid damages. TIPS: ★ We welcome OEM orders, KV value, motor color, logo all can be customized.

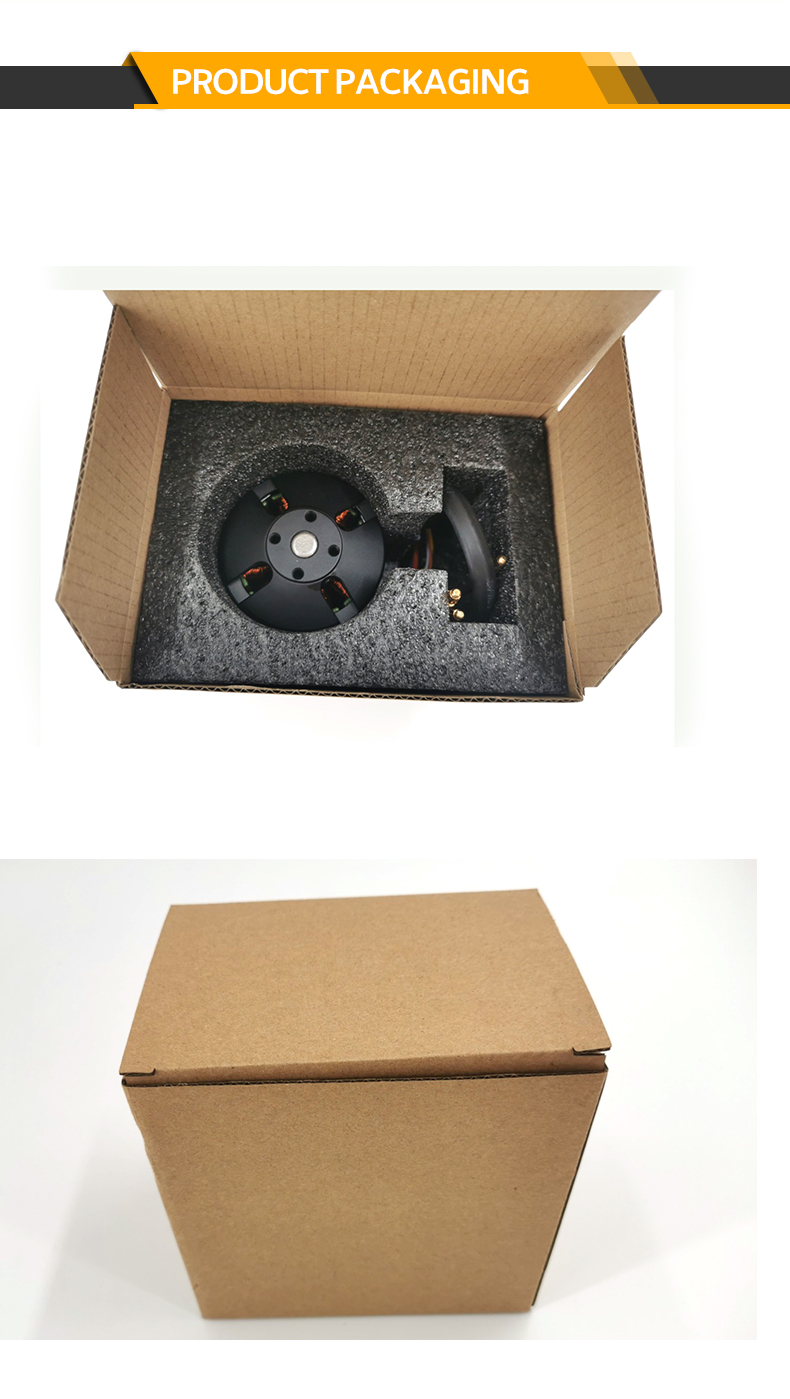

Product packaging
Factory&Customizable &Balanced Brushless 6374 Motor W/Hall Sensor for Electric Scooter E-Bike Surfboard Skateboard Longboard CNC
Company Profile
Factory&Customizable &Balanced Brushless 6374 Motor W/Hall Sensor for Electric Scooter E-Bike Surfboard Skateboard Longboard CNC
FAQ
1.Are you a manufacturer?
Yes, as the original factory supplier in mainland China, we are mainly engaged in the research and development and production of brushless motors, covering aeromodelling brushless motors, electric remote control scooter brushless motors, surfboard brushless motors, and logistics sorting equipment brushless motors. A company specializing in the production and processing of outer-rotating brushless motors, inner-rotating brushless motors, and peripheral accessories and hardware accessories.

2.How to order？
Step 1.please tell us product items and quantity you need. Step 2.we will make a PI with shipping cost for your reference. Step 3.payment can be arranged after we confirm everything in details. Step 4.we will deliver the goods within stipulated time.

3.What are the payment methods?
PayPal, T/T, Western Union, Moneygram, Escrow, etc. Beside, we accept Trade Assurance, which can protect your payment if you will not get the goods, so you can just place order in without any wories.

4.Do you provide OEM/ODM services?
Yes! Welcome to send us inquiries about OEM&ODM custom design.
