Specifications
Model Number :
HTSC8.0
norm :
8T
MOQ :
1 set
Delivery Time :
5-14 work days
Wire Rope Specifications :
Φ12mm×80m
Payment Terms :
L/C,D/A,D/P,T/T
Boom angle/time :
0-78°/13sec
Brand Name :
Hightop
Model :
HTSC8.0
Packaging Details :
Wooden case
Price :
Negotiation
Boom form :
5m x 5-section boom (customizable)
Certification :
CE，EPA，ISO，TUV

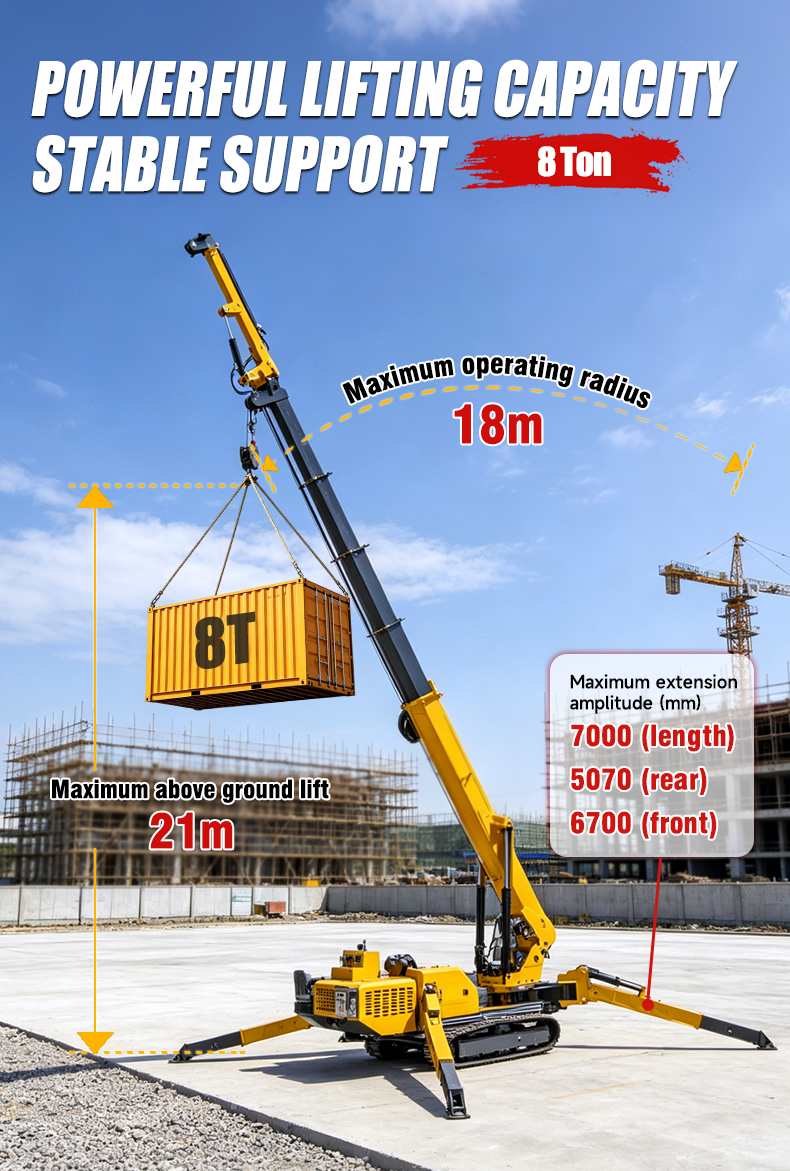

Maximum operating radius :
18m
Supply Ability :
100 set per month
Rotation angle/speed :
0-360° (continuous)/38sec
Place of Origin :
China
Maximum above ground lift :
21m
Description

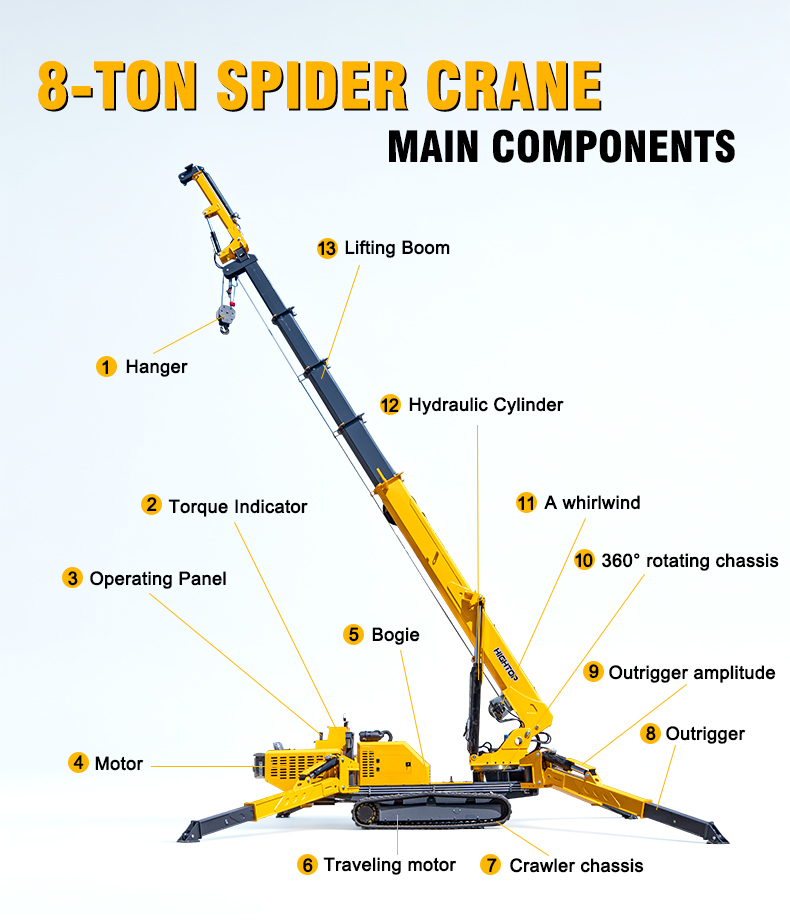

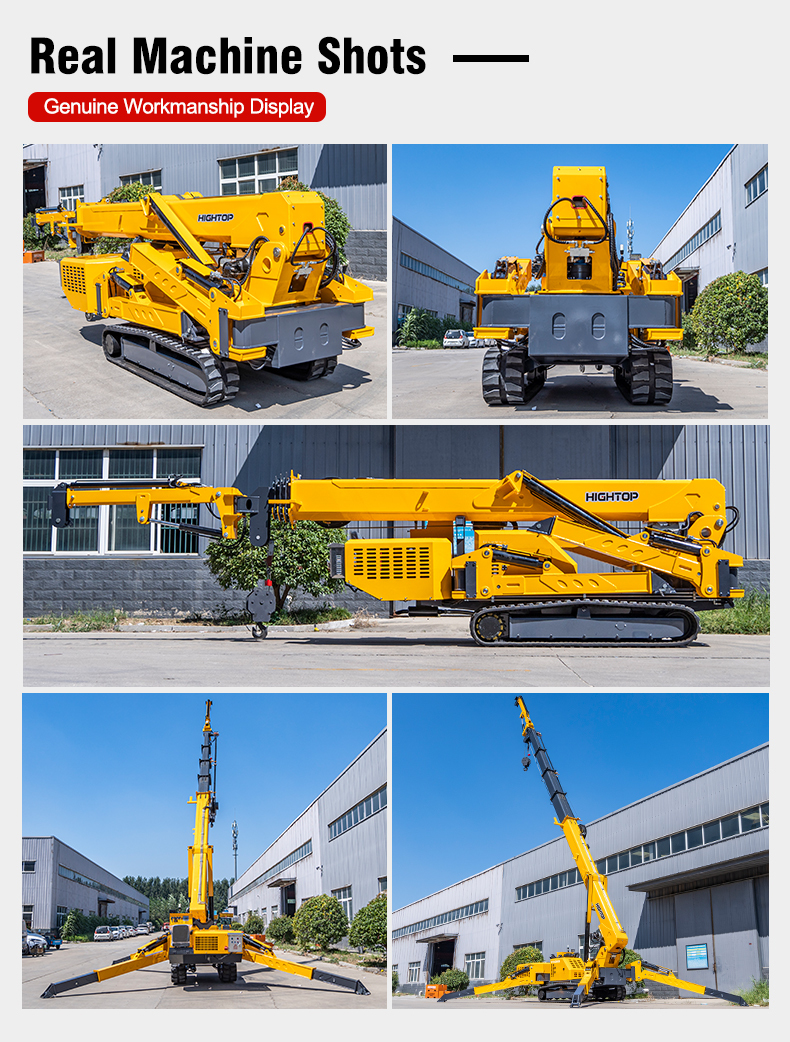

HTSC8.0 Crawler Spider Crane
The HTSC8.0 tracked spider crane is an 8-ton micro tracked crane produced by Hightop. It features a rubber tracked movement system with expandable hydraulic legs in a spider structure. The compact body is equipped with both diesel and electric power options, supports 360° continuous rotation, and offers wireless remote control operations. With a maximum lifting height of 17.5 meters, it can access indoor spaces, narrow corridors, basements, and other areas traditional cranes cannot reach. Safety features include torque limit and overload protection systems.

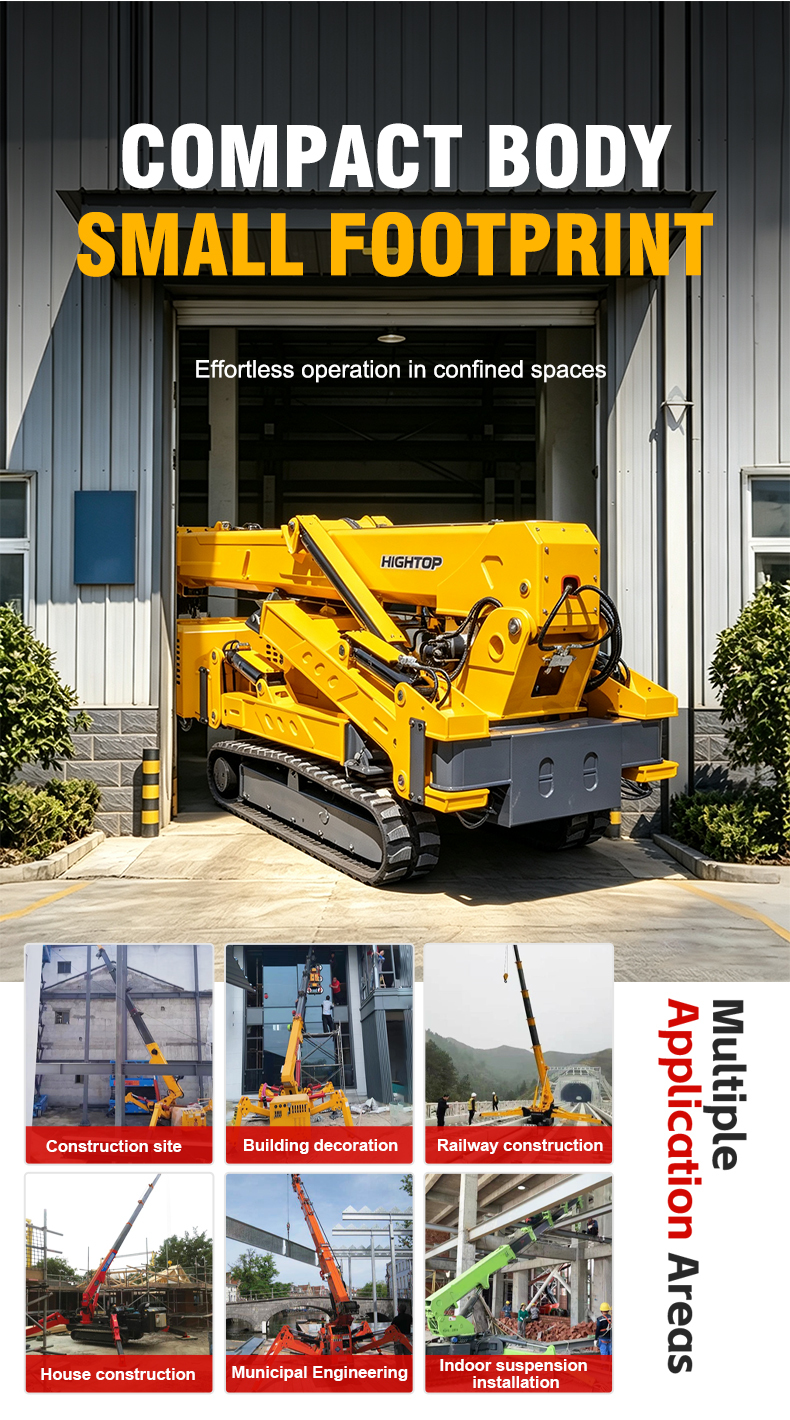

Key Applications
  • Curtain wall installation
  • Factory equipment hoisting
  • Steel structure construction
  • Maintenance and repair in restricted spaces

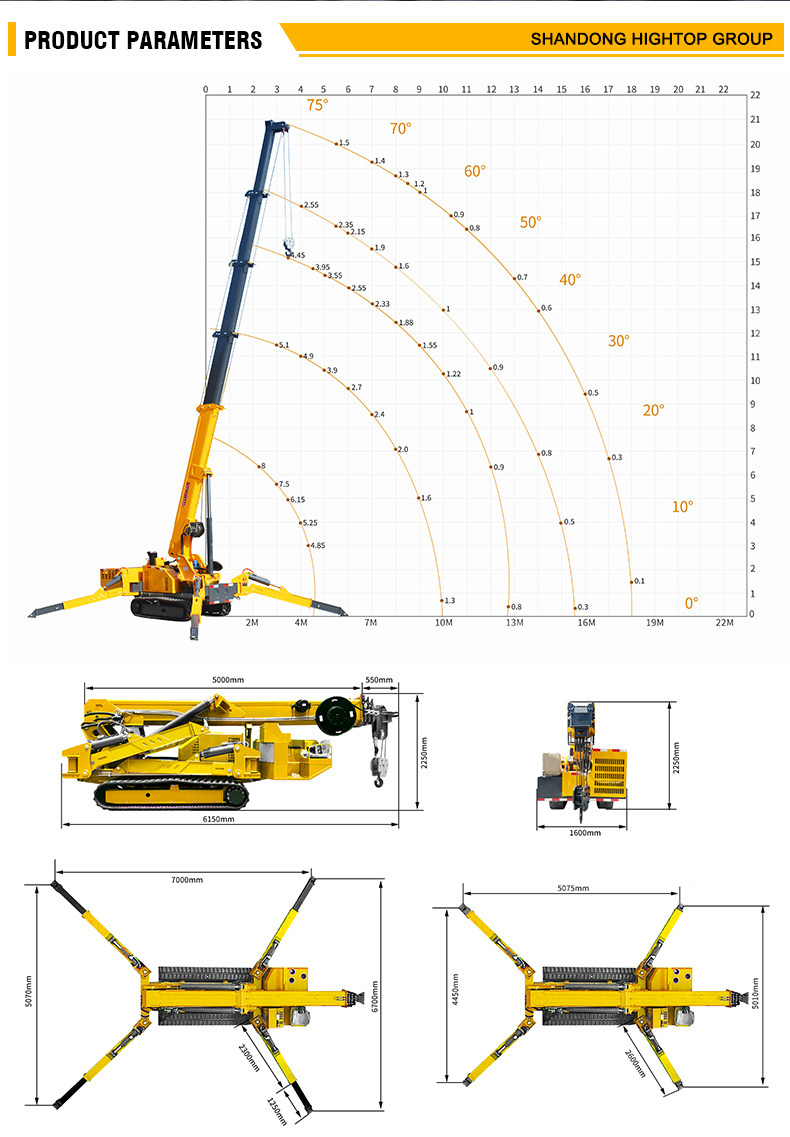

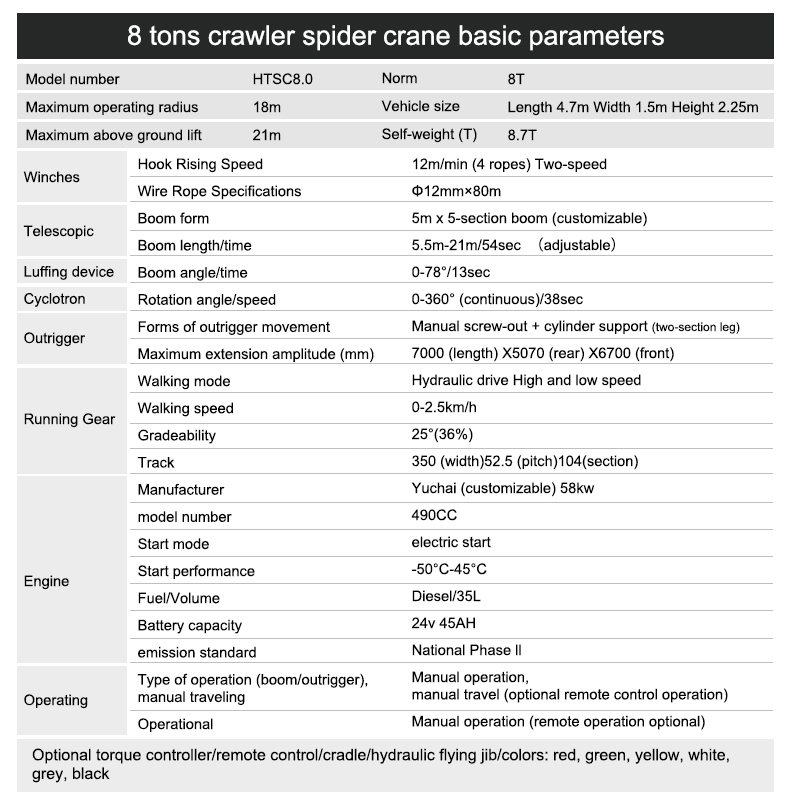

Technical Specifications
Parameter Specification
Capacity 8 tons
Maximum Operating Radius 18 meters
Maximum Above Ground Lift 21 meters
Hook Rising Speed (4 ropes) 12 m/min (Two-speed)
Wire Rope Specifications Φ12mm × 80m

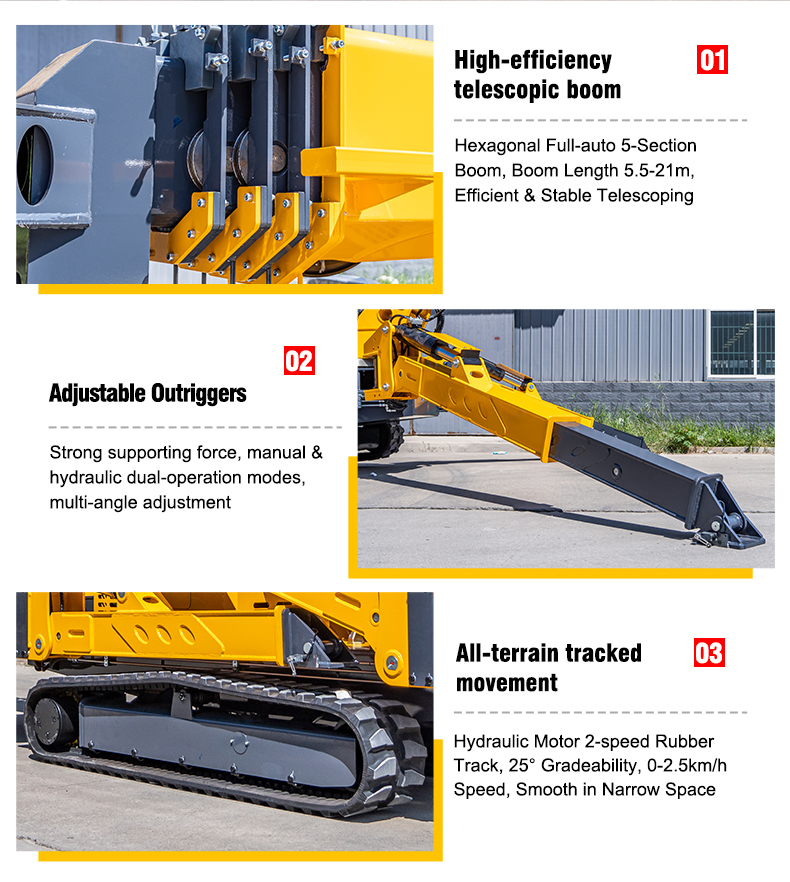

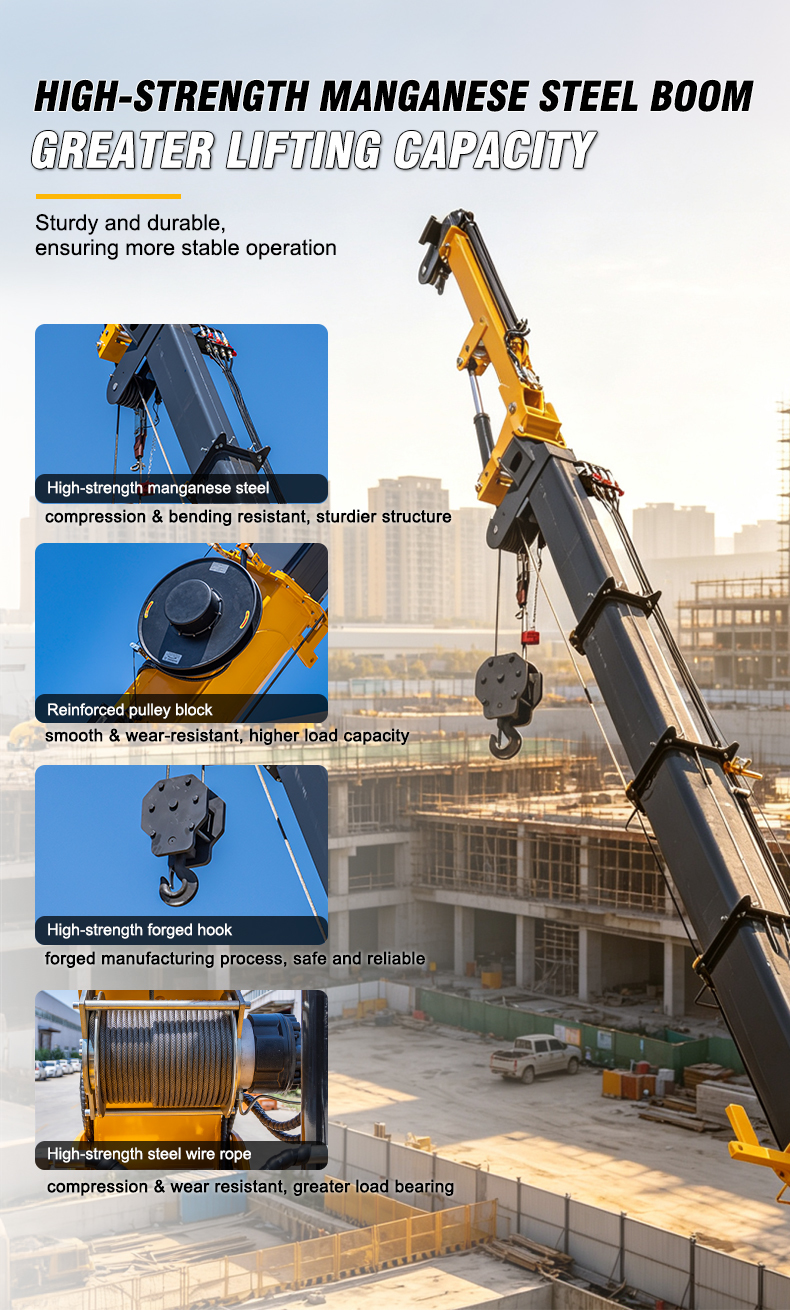

Boom Configuration 5m × 5-section boom (customizable)
Boom Length/Extension Time 5.5m-21m / 54 seconds (adjustable)
Boom Angle/Luffing Time 0-78° / 13 seconds

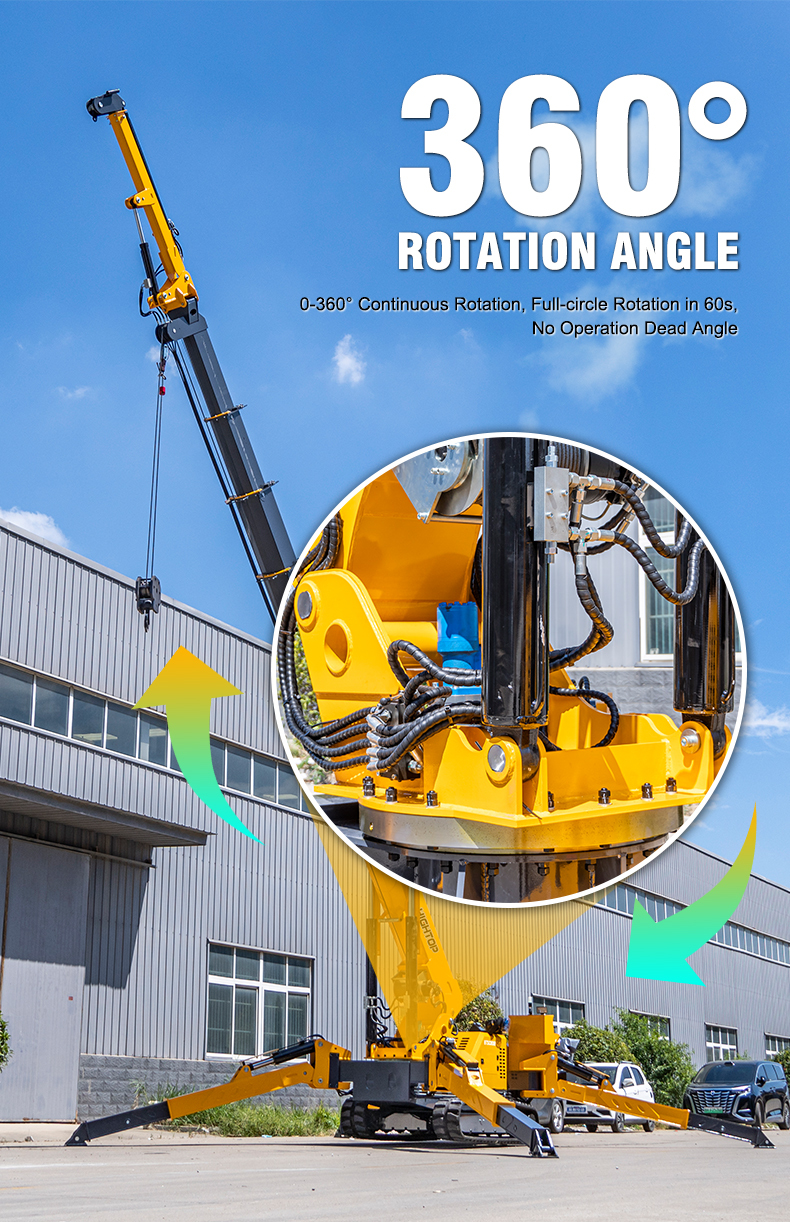

Rotation Angle/Speed 0-360° continuous / 38 seconds
Outrigger System Manual screw-out + cylinder support (two-section leg)
Maximum Extension Amplitude 7000mm (length) × 5070mm (rear) × 6700mm (front)
Walking Mode Hydraulic drive with high and low speed
Walking Speed 0-2.5 km/h
Gradeability 25° (36%)
Track Specifications 350mm (width) × 52.5mm (pitch) × 104 (section)
Engine Manufacturer Yuchai (customizable) 58kw
Model Number 490CC
Start Mode Electric start
Operating Temperature Range -50°C to 45°C
Fuel Type/Capacity Diesel / 35L
Battery Capacity 24V 45AH
Emission Standard National Phase II
Operation Type Manual operation, manual travel (remote control operation optional)
Vehicle Dimensions Length 6.15m × Width 1.6m × Height 2.25m
Self-weight 8.7 tons
Optional Features
  • Torque controller
  • Remote control system
  • Cradle attachment
  • Hydraulic flying jib
  • Color options: red, green, yellow, white, grey, black

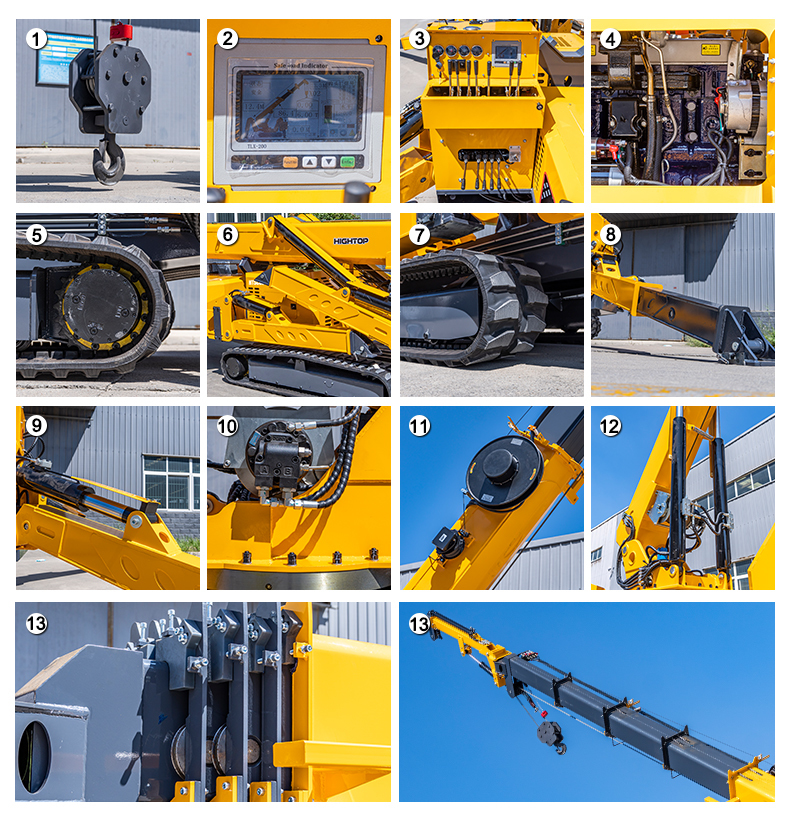

Product Gallery
