Specifications
Supply Ability :
100 set per month
Boom angle/time :
0-78°/13sec
Brand Name :
Hightop
Model Number :
HTSC2.0
Maximum operating radius :
6m
Certification :
CE，EPA，ISO，TUV
Maximum above ground lift :
6.5m
Price :
Negotiation
Packaging Details :
Wooden case
Boom form :
2m x 4-section boom (customizable)
MOQ :
1 set
Wire Rope Specifications :
Φ8mm×45m
Payment Terms :
L/C,D/P,D/A,T/T
Boom length/time :
6.5m/20sec （Support customization）
Delivery Time :
5-14 work days
Rotation angle/speed :
0-360° (continuous)/60sec
Place of Origin :
China
Hook Rising Speed :
0-8m/min(4 ropes)
Description
2 Tons Crawler Spider Crane Basic
Product Overview

This compact crawler spider crane features a small size, light weight, and compact structure, making it ideal for confined spaces such as floor roof lifting and substation maintenance.

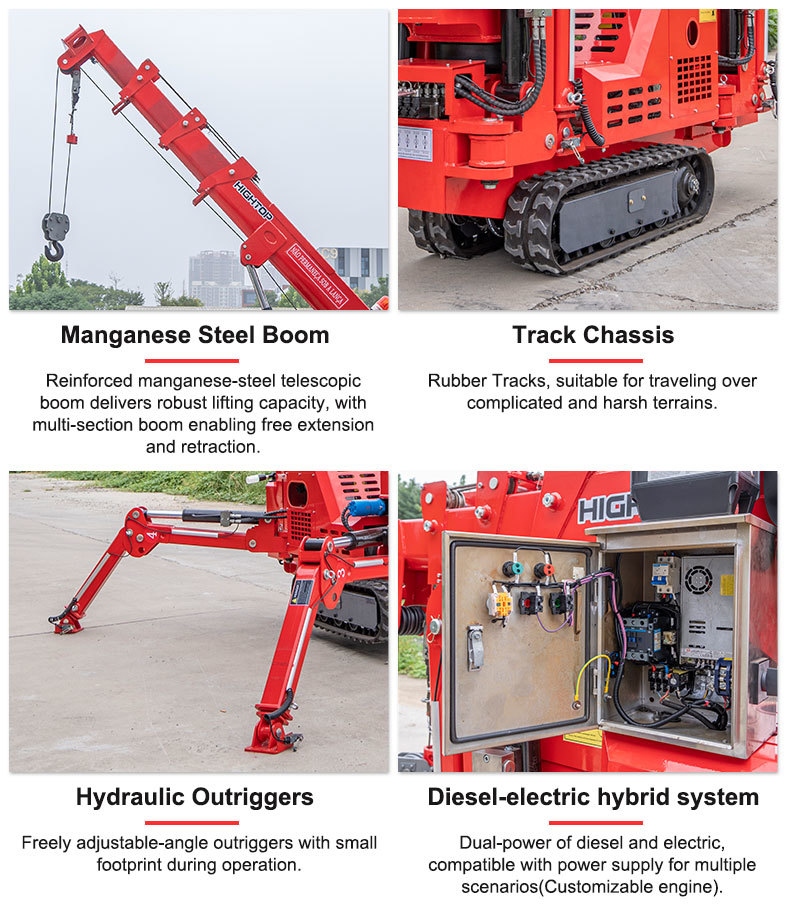

  • Rubber tracked chassis prevents ground damage and adapts to various surfaces
  • High-strength manganese steel boom for superior lifting capacity
  • Optional remote control for convenient operation

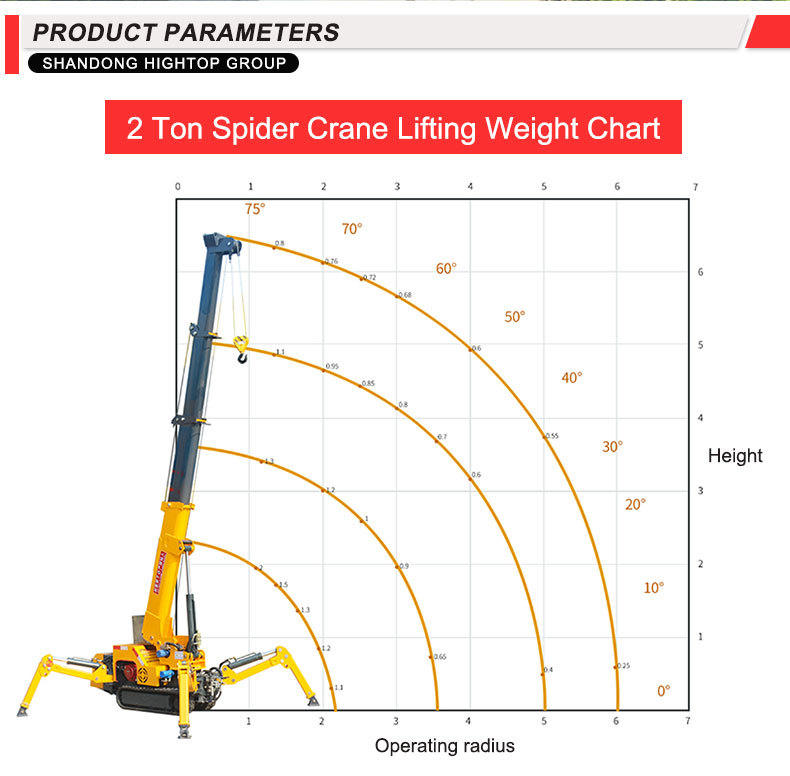

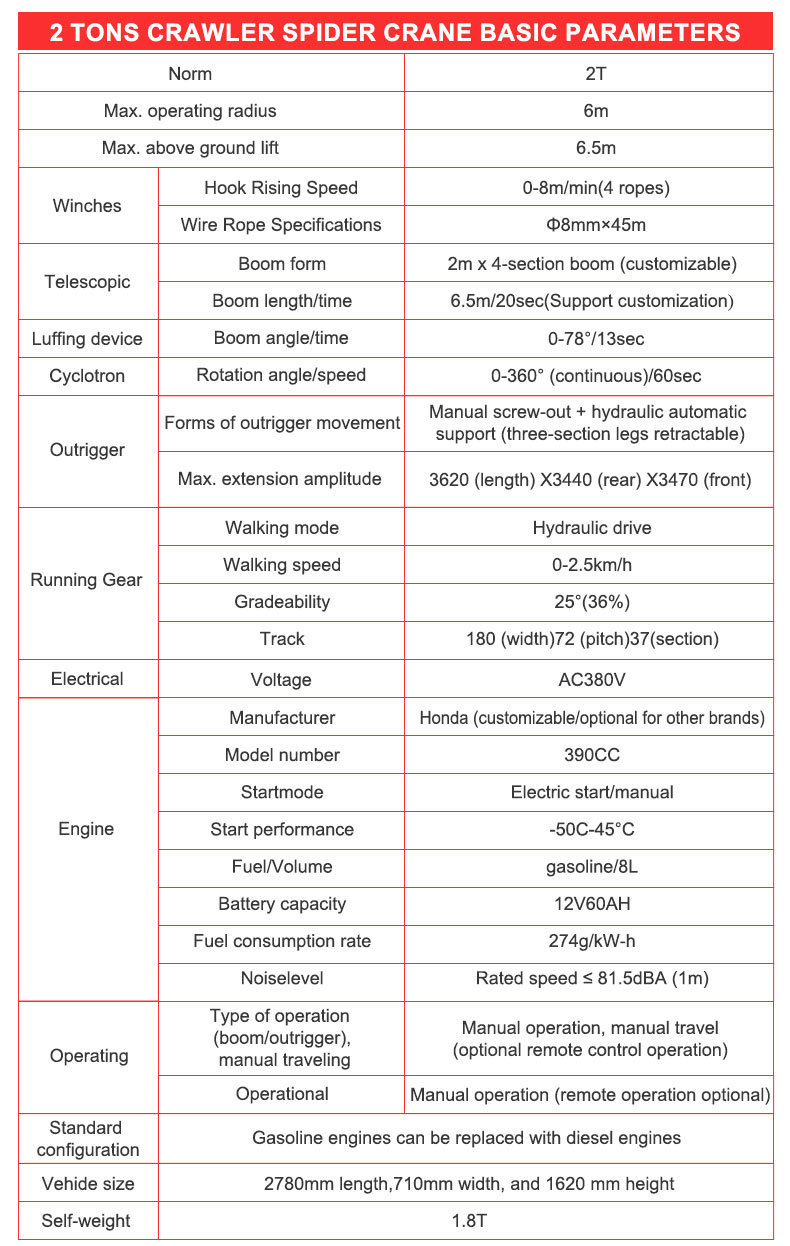

Technical Specifications
Parameter Specification
Capacity 2T
Maximum Operating Radius 6m
Maximum Above Ground Lift 6.5m
Winches
Parameter Specification
Hook Rising Speed (4 ropes) 0-8m/min
Wire Rope Specifications Φ8mm*45m
Telescopic Boom
Parameter Specification
Boom Form 2m x 4-section boom (customizable)
Boom Length/Time 6.5m/20sec (Support customization)
Luffing Device
Parameter Specification
Boom Angle/Time 0-78°/13sec

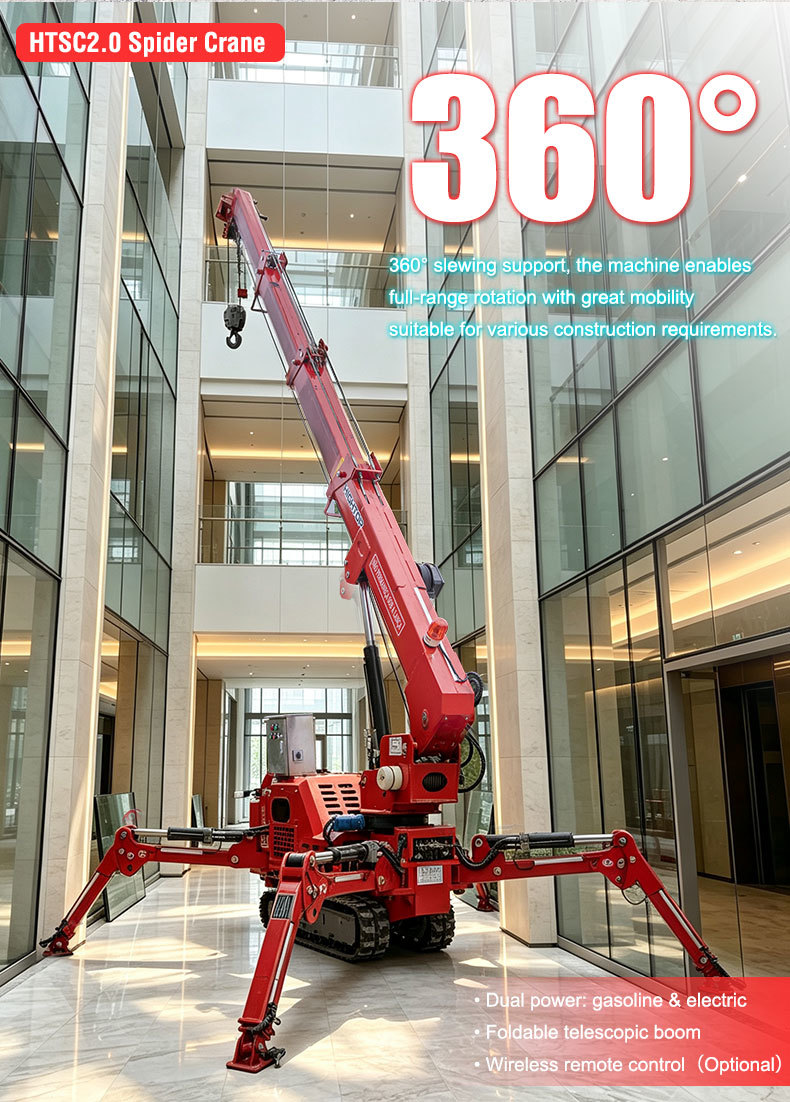

Cyclotron
Parameter Specification
Rotation Angle/Speed 0-360° (continuous)/60sec

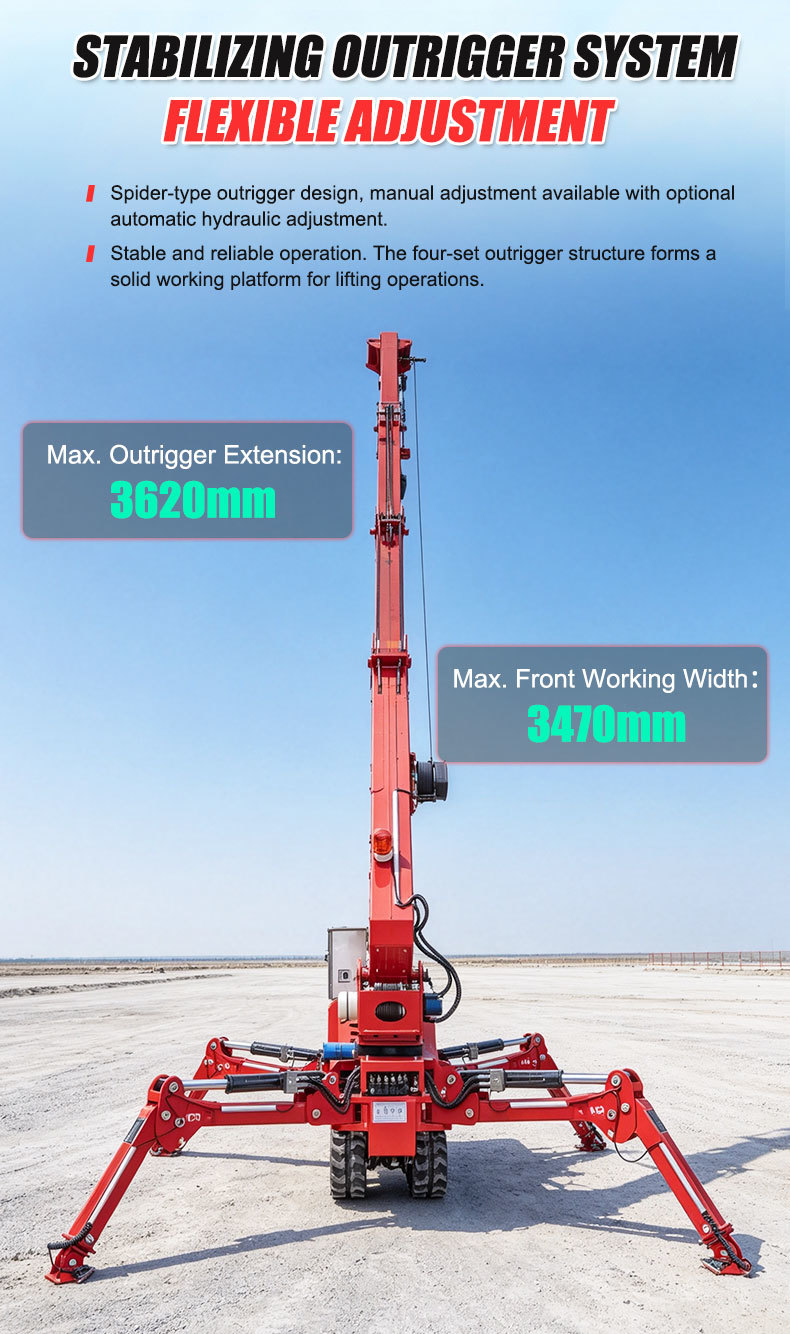

Outrigger
Parameter Specification
Forms of Outrigger Movement Manual screw-out + hydraulic automatic support (three-section legs retractable)
Maximum Extension Amplitude 3620 (length) X3440 (rear) X3470 (front) mm

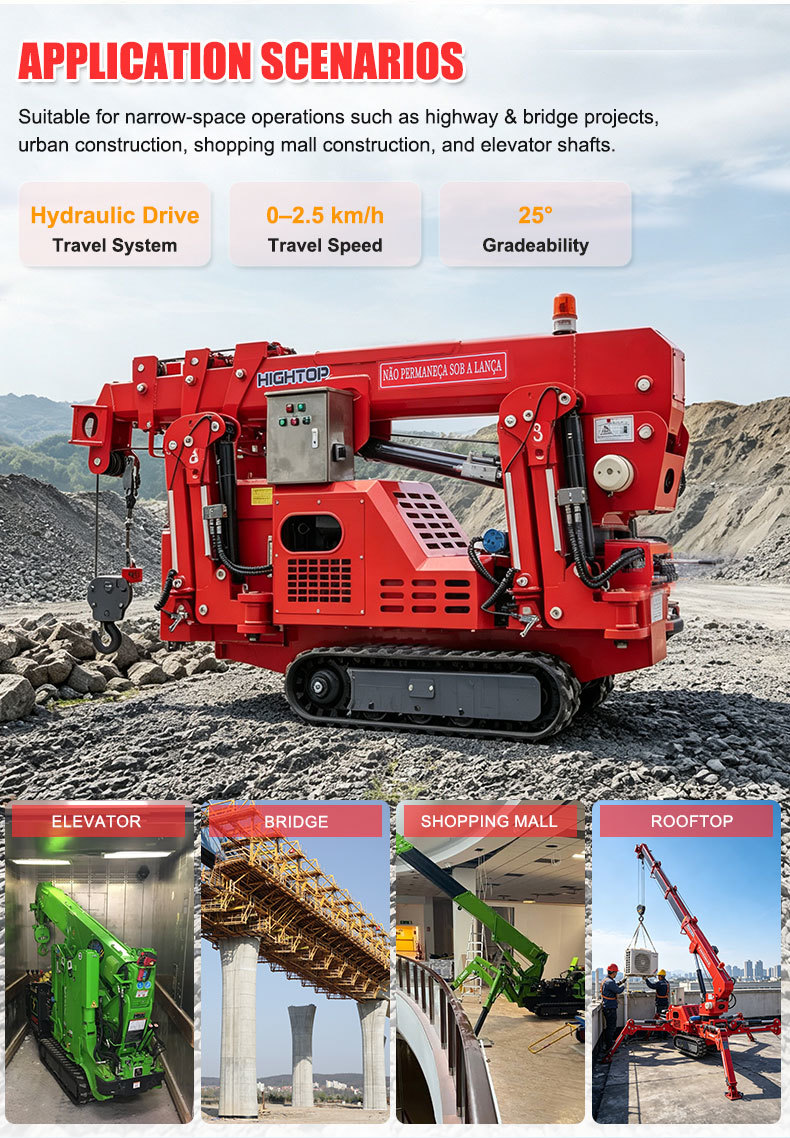

Running Gear
Parameter Specification
Walking Mode Hydraulic drive
Walking Speed 0-2.5km/h
Gradeability 25°(36%)
Track 180 (width) 72 (pitch) 37 (section)
Electrical System
Parameter Specification
Voltage AC380V
Engine
Parameter Specification
Manufacturer Honda (customizable/optional for other brands)
Model Number 390CC
Start Mode Electric start/manual
Start Performance -50°C-45°C
Fuel/Volume Gasoline/8L
Battery Capacity 12V60AH
Fuel Consumption Rate 274g/kW-h
Noise Level Rated speed ≤ 81.5dBA (1m)
Operation
Parameter Specification
Type of Operation (boom/outrigger) Manual operation, manual travel (optional remote control operation)
Operational Mode Manual operation (remote operation optional)

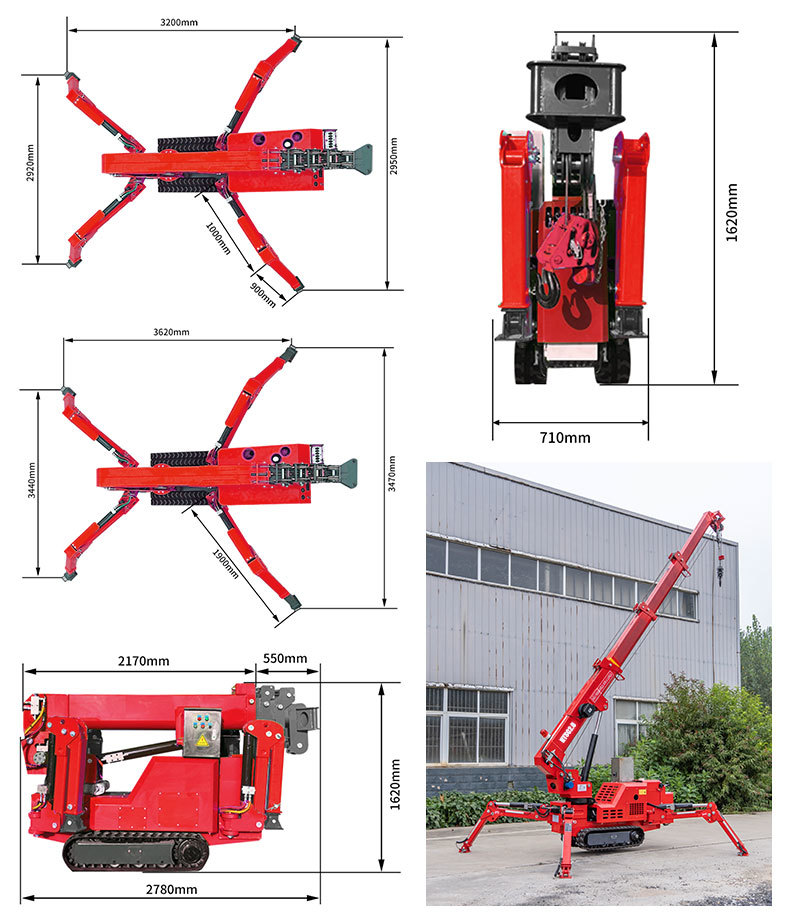

Physical Dimensions
Parameter Specification
Vehicle Size 2.78m length, 0.71m width, 1.62m height
Self-weight 1.8T

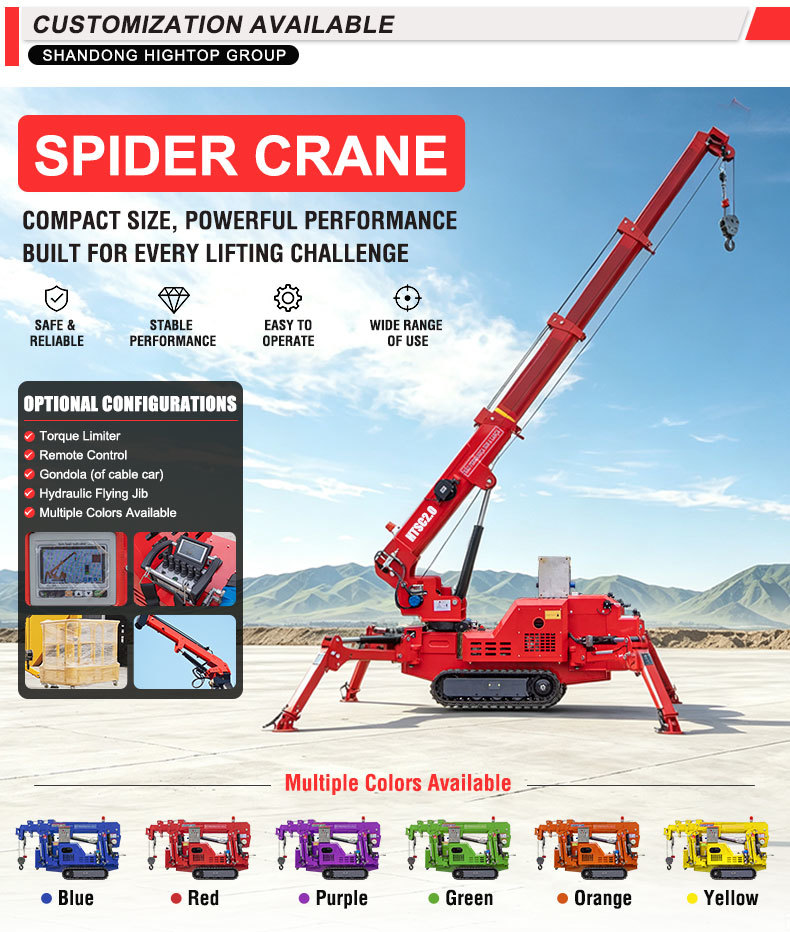

Standard Configuration & Options

Standard Configuration: Gasoline engines can be replaced with diesel engines

Optional Accessories: Torque controller, remote control, cradle, hydraulic flying jib

Available Colors: Red, green, yellow, white, grey, black

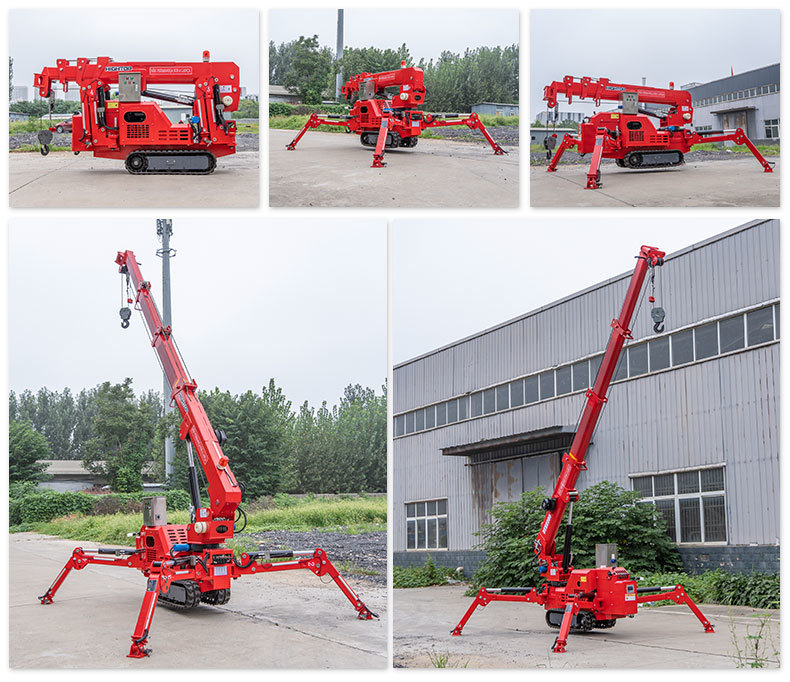

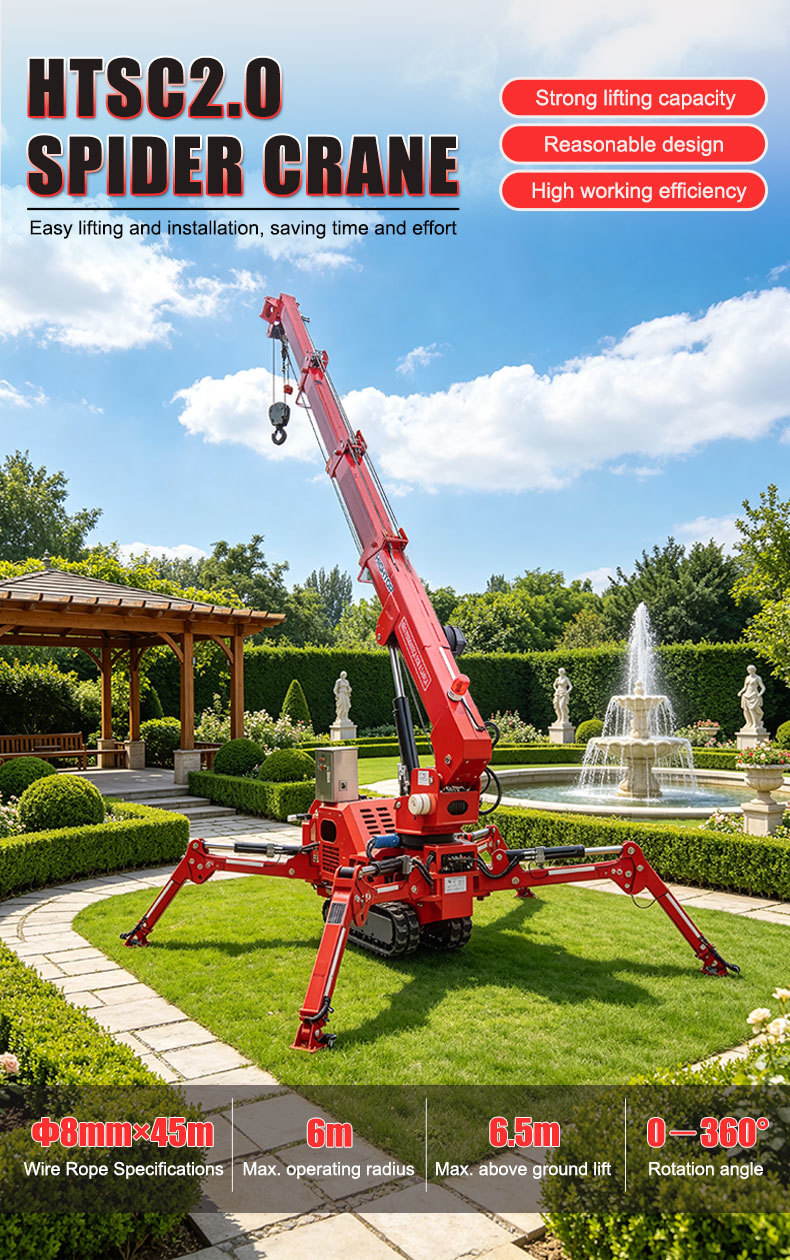

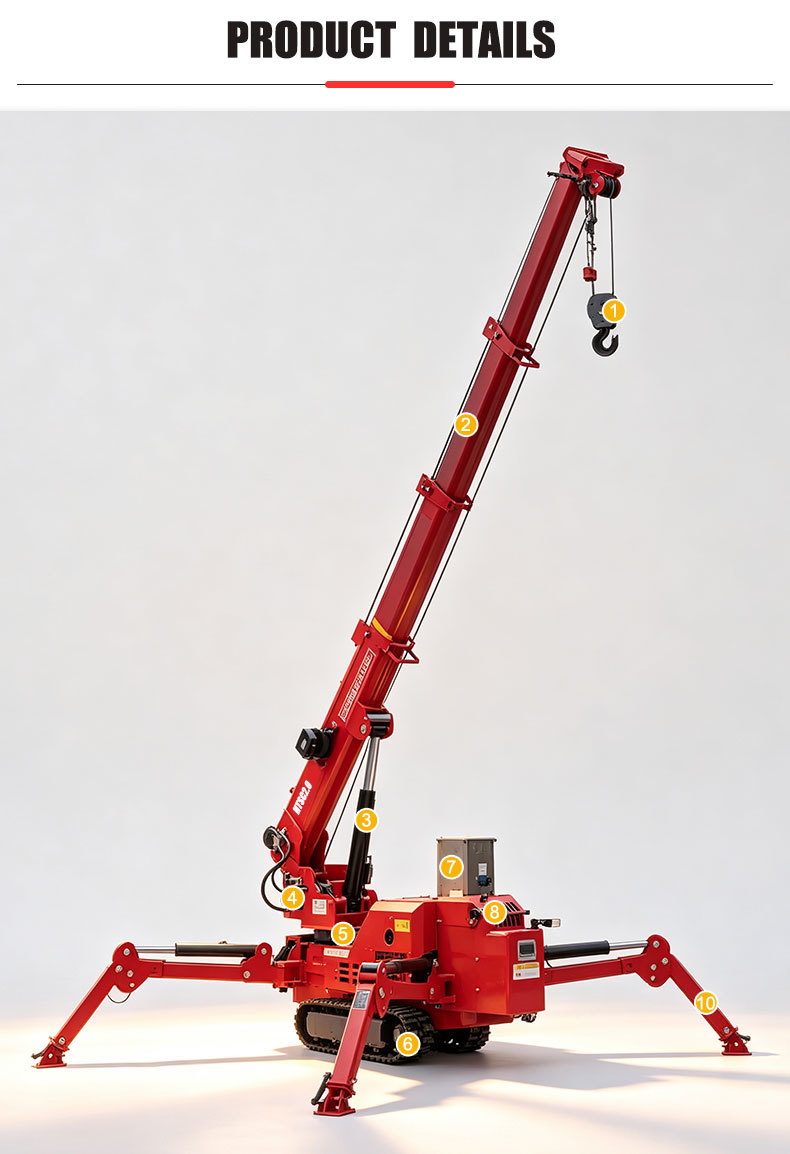

Product Images
