Specifications
Model Number :
HTSC800
Max ground lifting height :
17.5m
MOQ :
1 set
Delivery Time :
5-14 work days
Weight :
7800kg
Payment Terms :
L/C,D/A,D/P,T/T
Boom length :
5m-16.8m
Brand Name :
Hightop
Max working radius :
16m*0.6t
Packaging Details :
Wooden case
Price :
Negotiation
Boom type :
Hexagonal fully automatic 5-section
Certification :
CE，EPA，ISO，TUV
Standard :
Diesel engine and electric motor (dual power)
Supply Ability :
100 set per month
Time for boom to fully extend :
50 ses
Place of Origin :
China
Size :
5010*1600*2200(mm)
Description

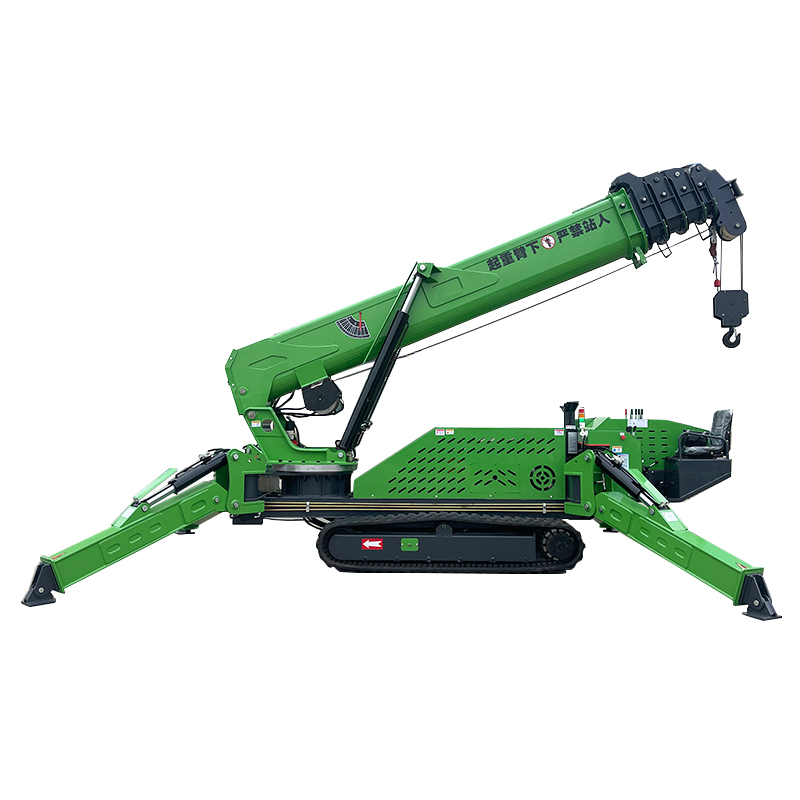

HTSC800 Spider Crane

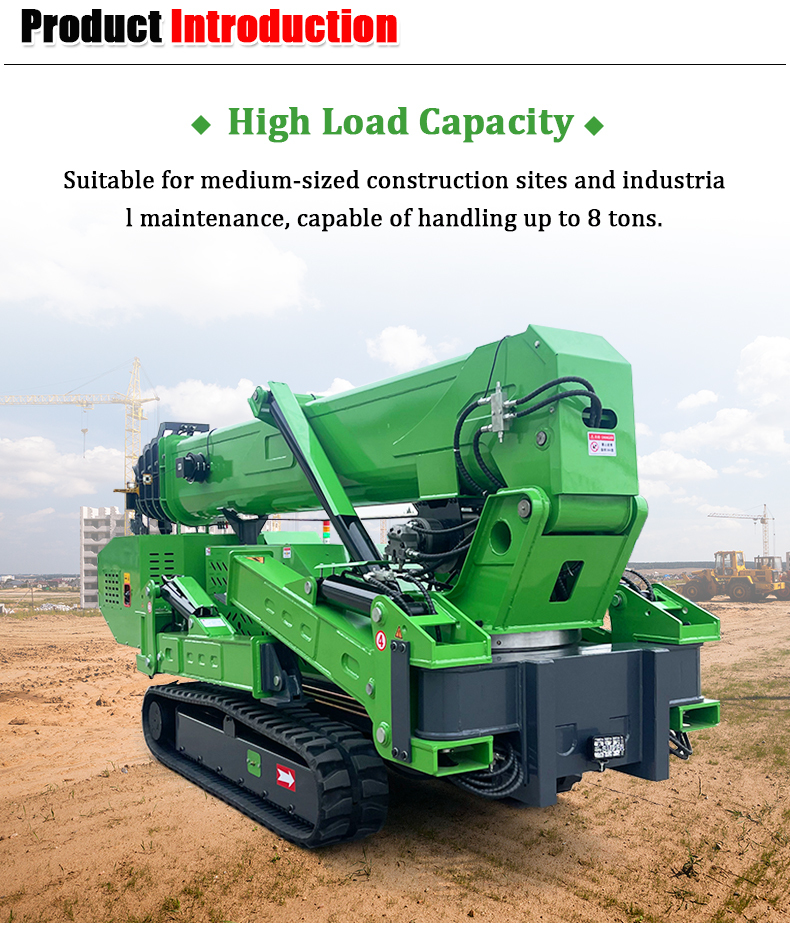

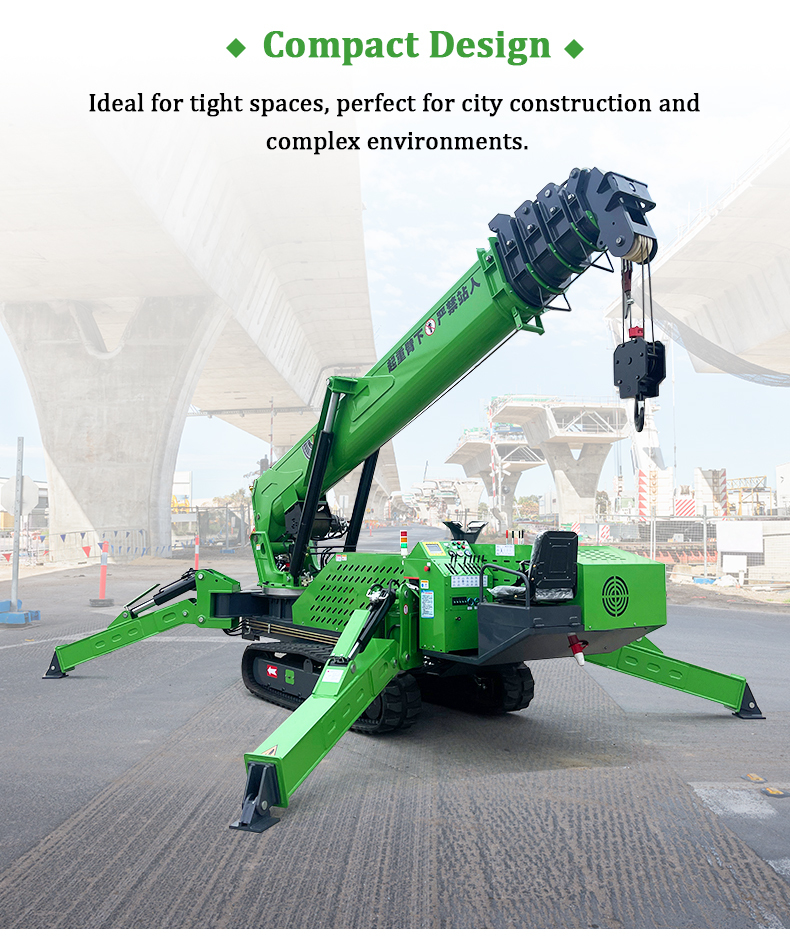

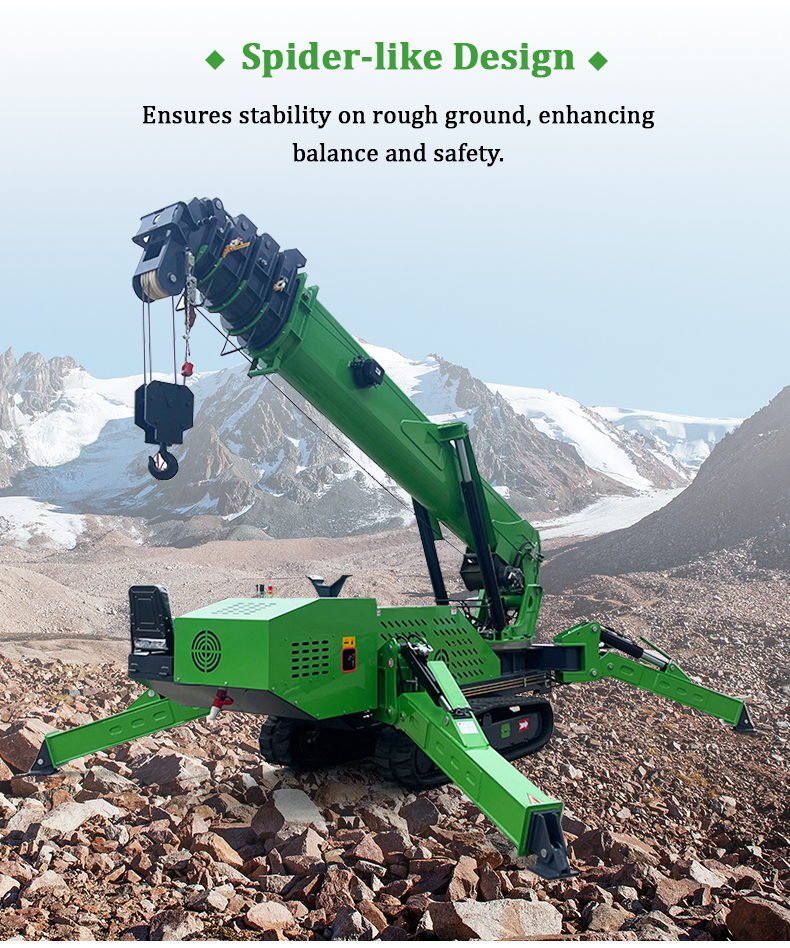

The HTSC800 is a hybrid (diesel-electric) tracked spider crane with a compact and lightweight design. It moves on rubber tracks, making it ideal for working in confined spaces. This crane is widely used in lifting operations where large cranes cannot access the site, such as inside factory buildings, for installing building curtain walls, in steel structure projects, in basements, and on narrow construction sites.

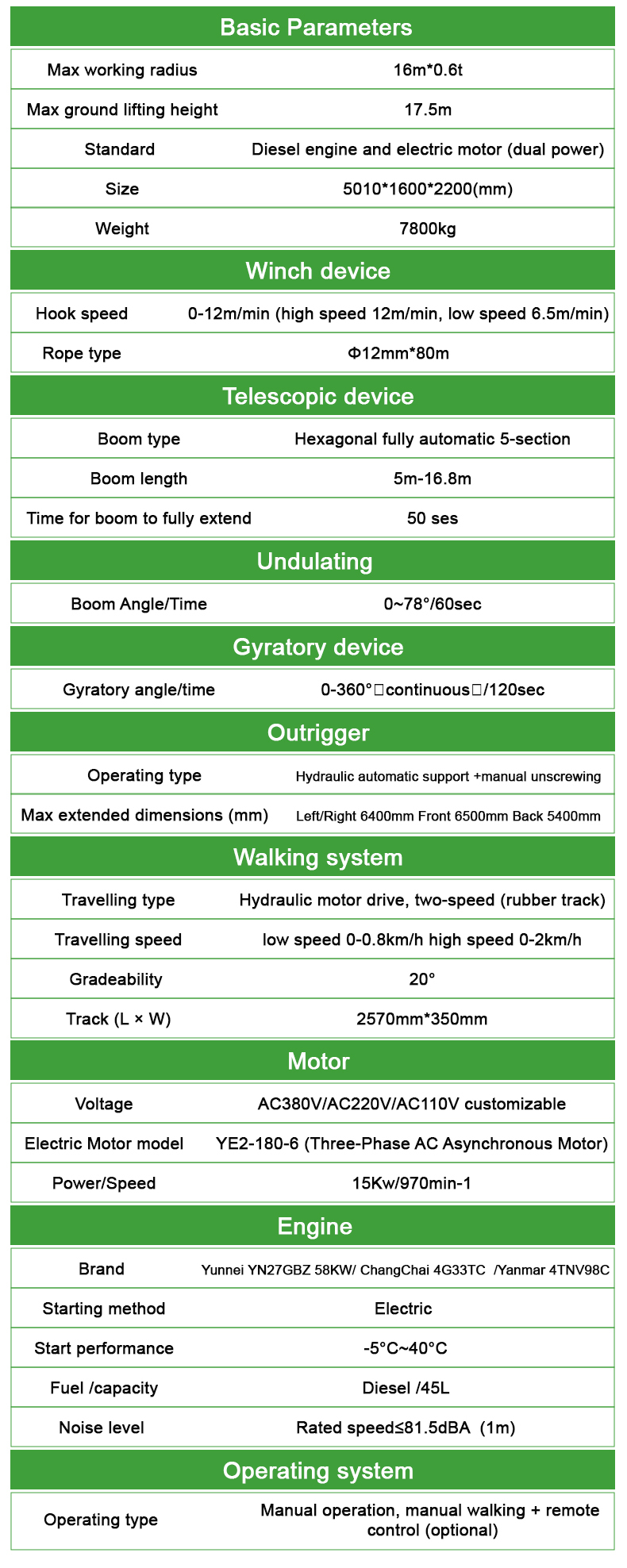

Basic Parameters

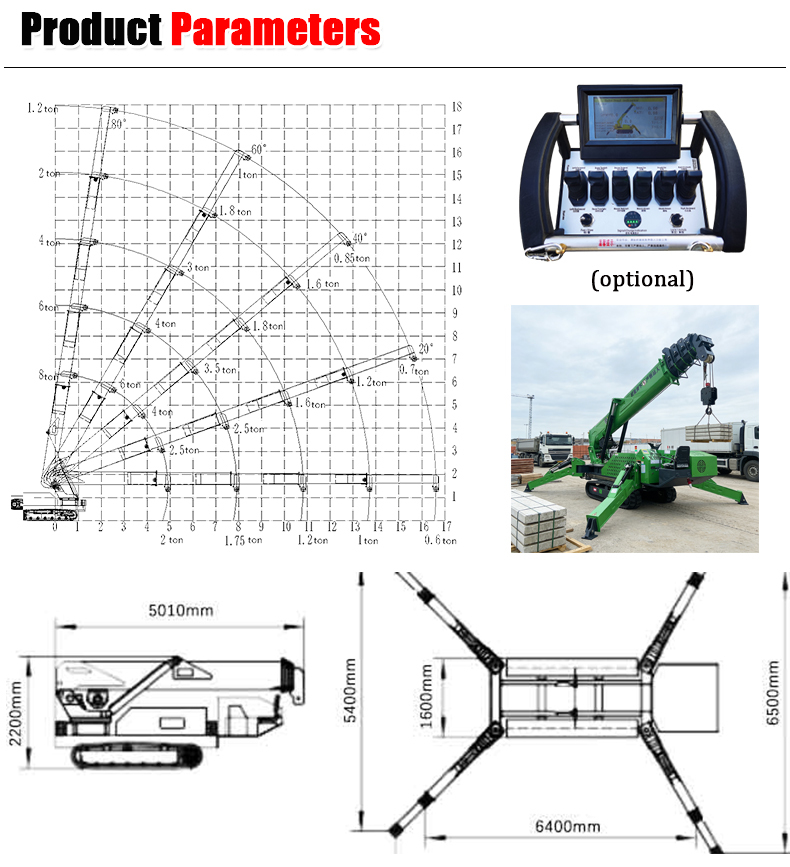

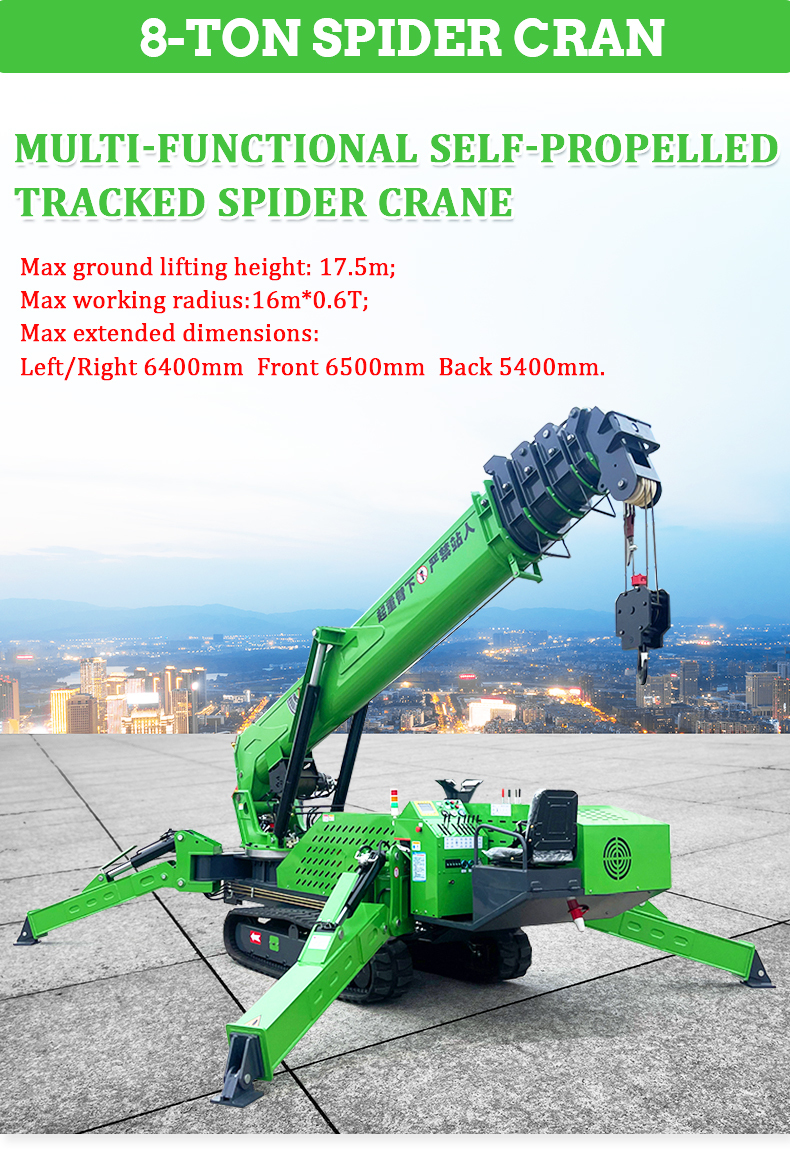

Max working radius 16m*0.6t
Max ground lifting height 17.5m
Standard Diesel engine and electric motor (dual power)
Size 5010*1600*2200(mm)
Weight 7800kg
Winch Device
Hook speed 0-12m/min (high speed 12m/min, low speed 6.5m/min)
Rope type Φ12mm*80m
Telescopic Device
Boom type Hexagonal fully automatic 5-section
Boom length 5m-16.8m
Time for boom to fully extend 50 sec
Undulating
Boom Angle/Time 0~78°/60sec
Gyratory Device
Gyratory angle/time 0-360° continuous/120sec
Outrigger
Operating type Hydraulic automatic support + manual unscrewing
Max extended dimensions (mm) Left/Right 6400mm Front 6500mm Back 5400mm
Walking System
Travelling type Hydraulic motor drive, two-speed (rubber track)
Travelling speed low speed 0-0.8km/h high speed 0-2km/h
Gradeability 20°
Track (L * W) 2570mm*350mm
Motor
Voltage AC380V/AC220V/AC110V customizable
Electric Motor model YE2-180-6 (Three-Phase AC Asynchronous Motor)
Power/Speed 15Kw/970min-1
Engine
Brand Yunnei YN27GBZ 58KW/ ChangChai 4G33TC /Yanmar 4TNV98C
Starting method Electric
Start performance -5°C~40°C
Fuel / capacity Diesel / 45L
Noise level Rated speed ≤81.5dBA (1m)
Operating System
Operating type Manual operation, manual walking + remote control (optional)

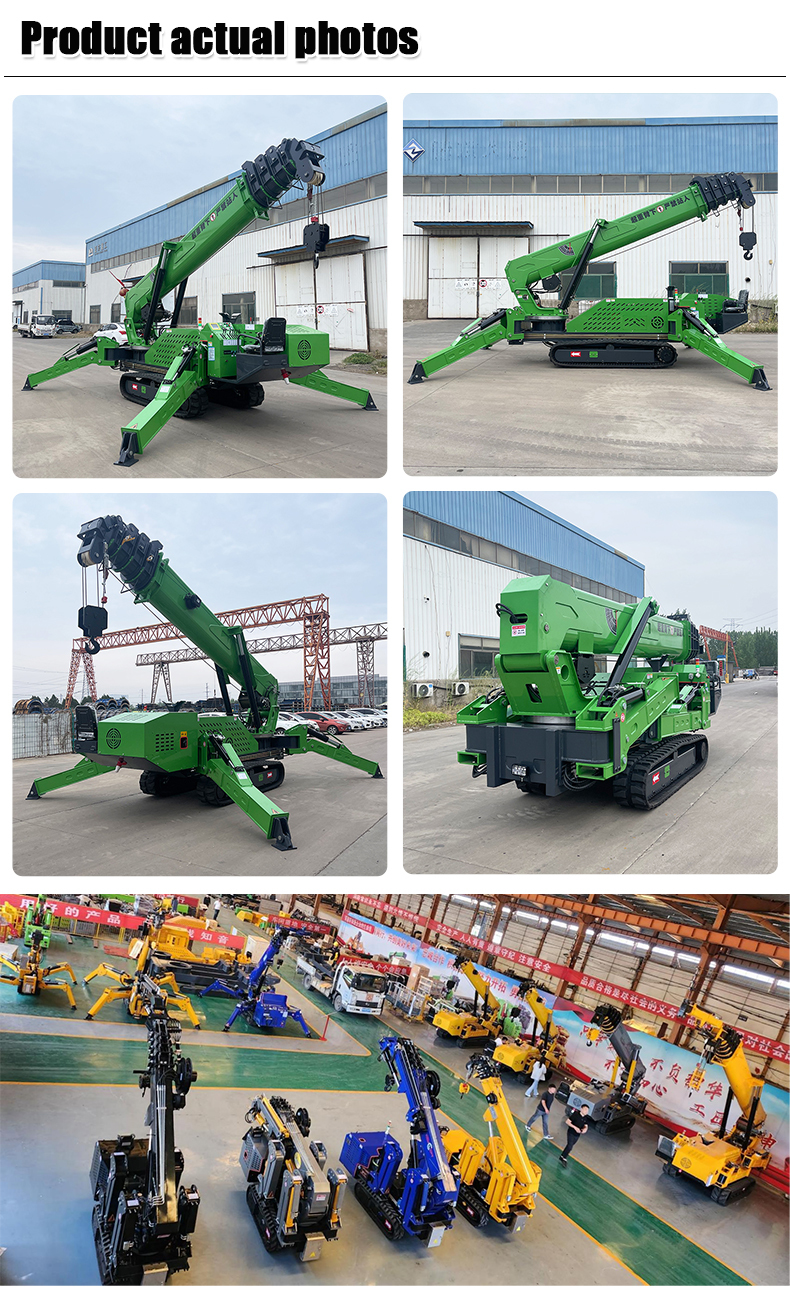

Product Images
