Specifications
Model Number :
HTSC5.0
norm :
5T
MOQ :
1 set
Delivery Time :
5-14 work days
Boom form :
4m x 5-section boom (customizable)
Payment Terms :
L/C,D/A,D/P,T/T
Boom angle/time :
0-78°/13sec
Brand Name :
Hightop
Model :
HTSC5.0
Packaging Details :
Wooden case
Price :
Negotiation
Boom length/time :
4.5m-17m/54sec （adjustable）
Supply Ability :
100 set per month
Rotation angle/speed :
0-360° (continuous)/38sec
Certification :
CE，EPA，ISO，TUV
Maximum operating radius :
15m
Place of Origin :
China
Maximum above ground lift :
17m
Description

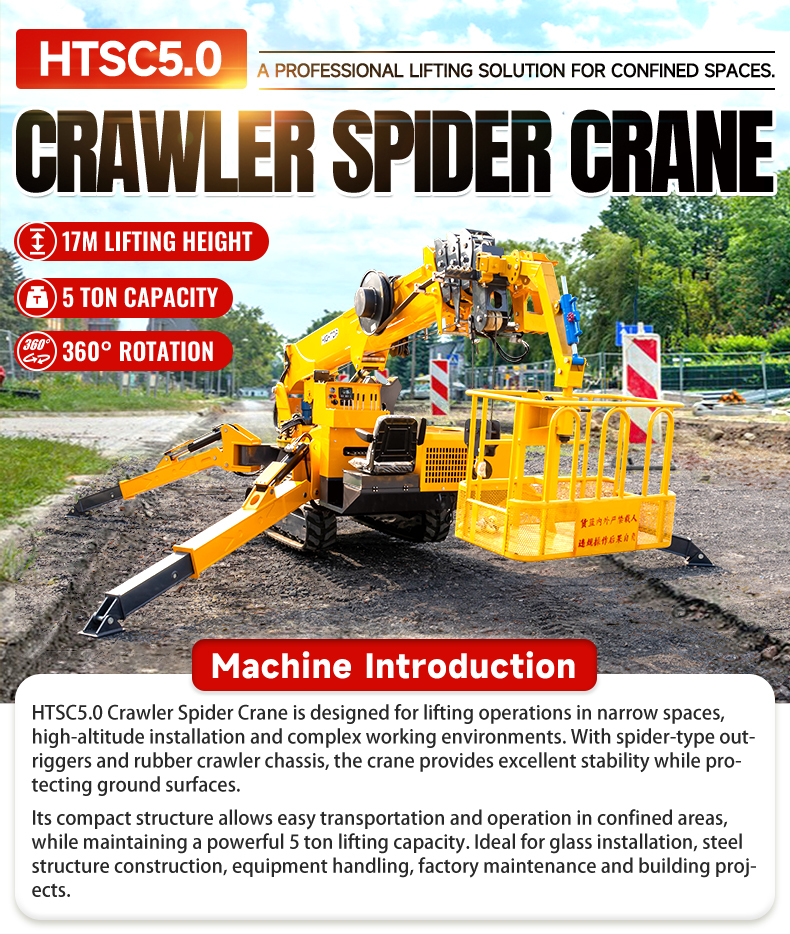

HTSC5.0 5 Tons Crawler Spider Crane

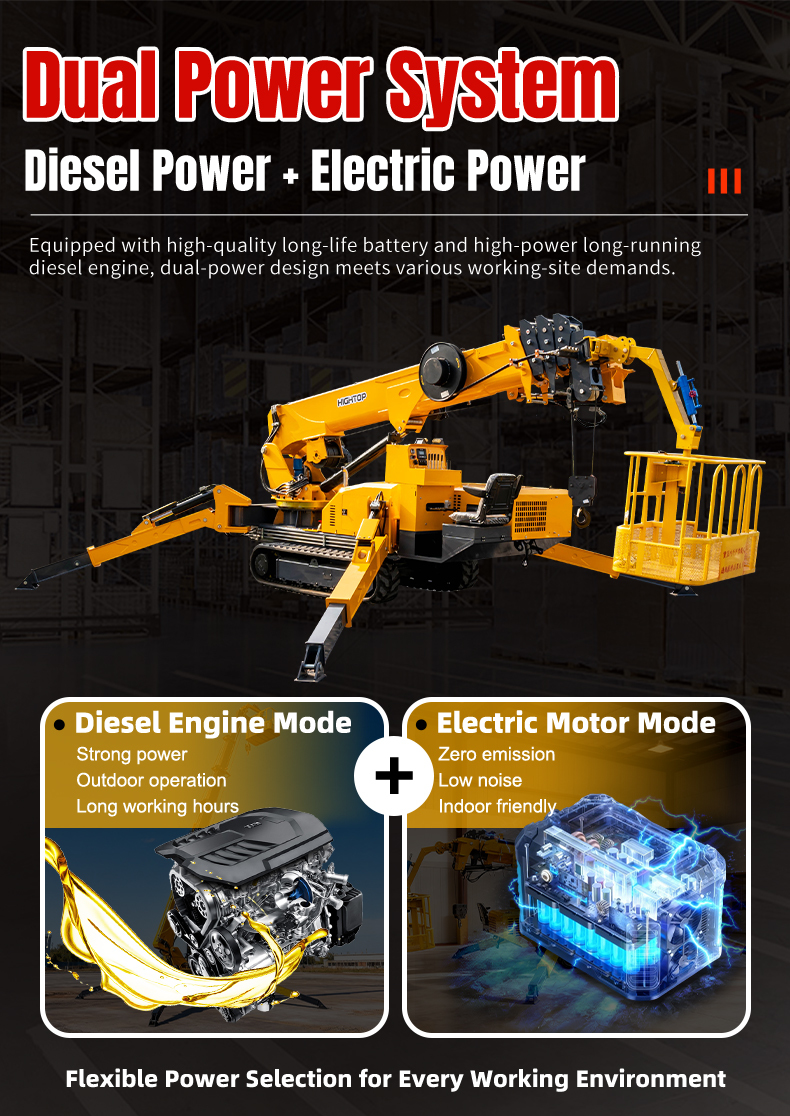

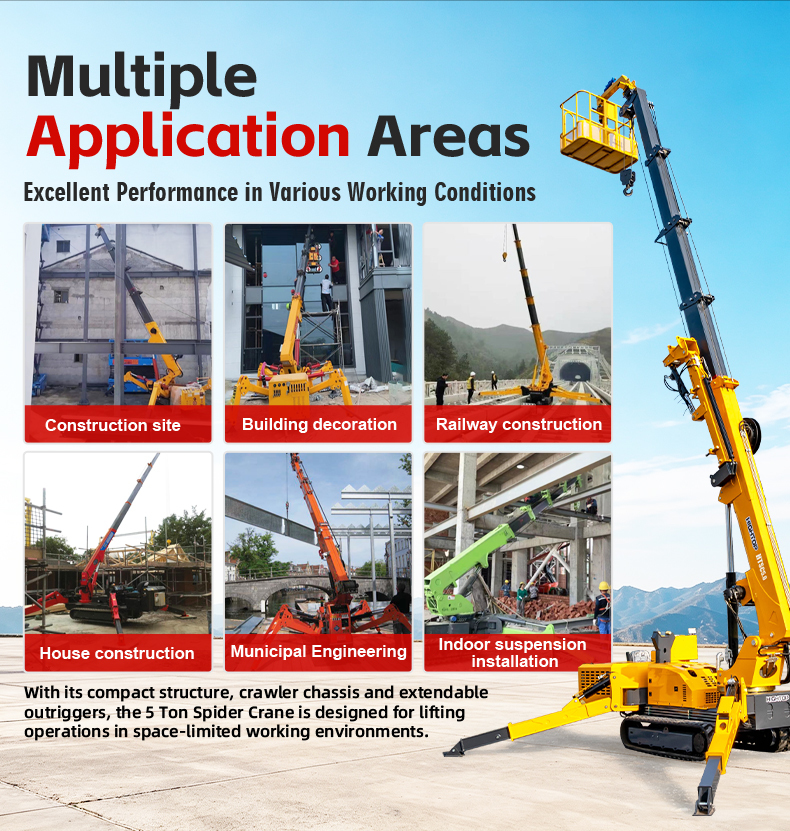

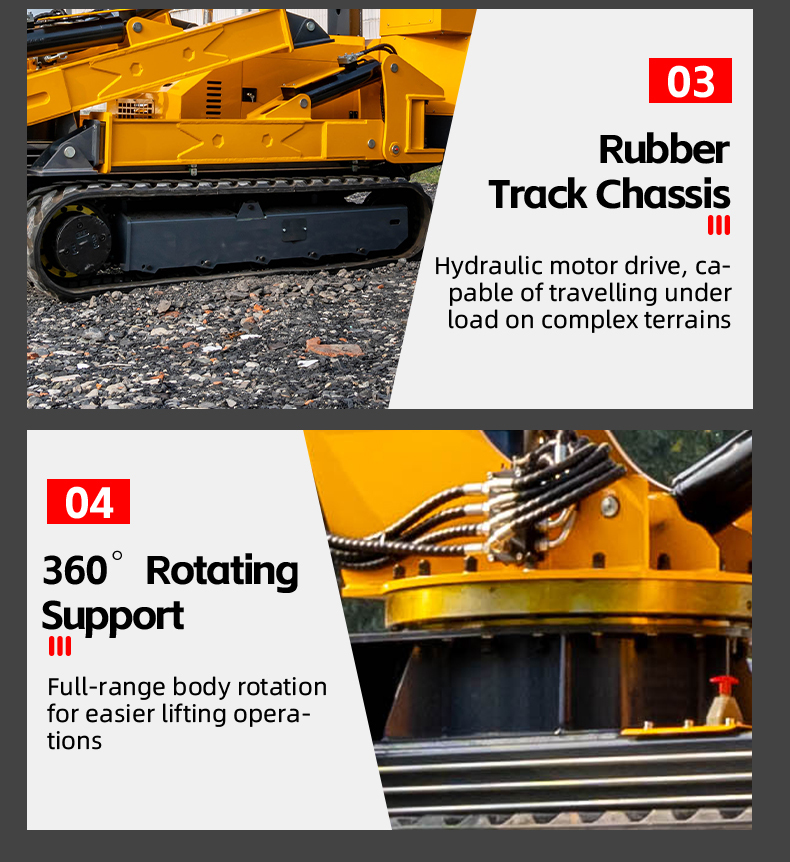

The HTSC5.0 is a compact 5-ton crawler-mounted spider crane, featuring a mini hydraulic telescopic boom lifting system. Its name derives from the four multi-stage hydraulic outriggers that extend like spider legs. The rubber crawler chassis enables navigation through narrow passages, elevators, indoor workshops, and rooftops where conventional cranes cannot operate. This model supports dual-power operation (diesel engine + 380V electric motor), wireless remote control, and full-range 360° continuous slewing, making it ideal for confined-space hoisting applications.

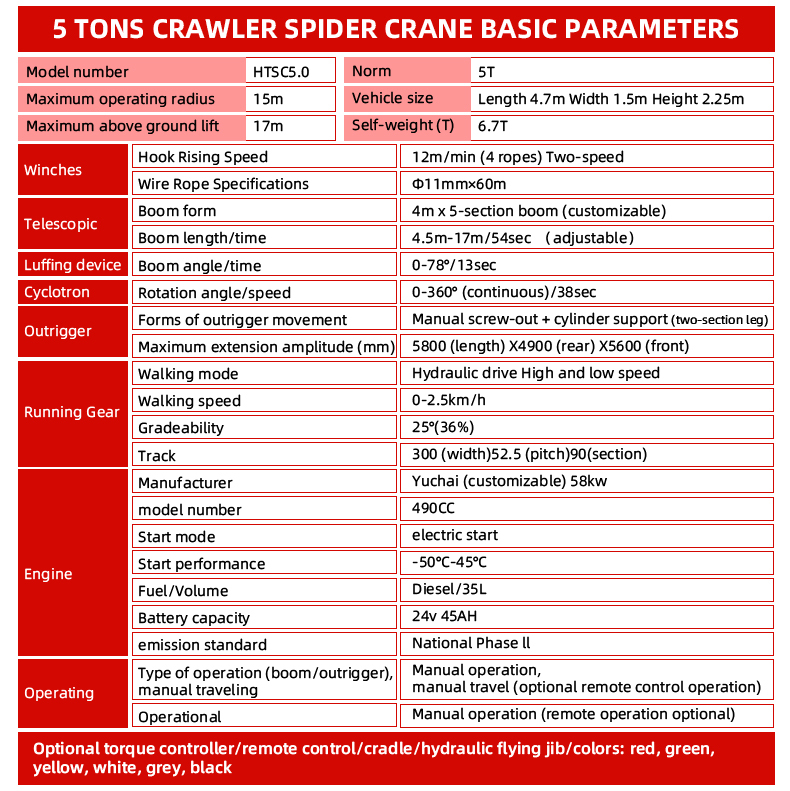

Key Specifications
Parameter Specification
Capacity 5 Tons

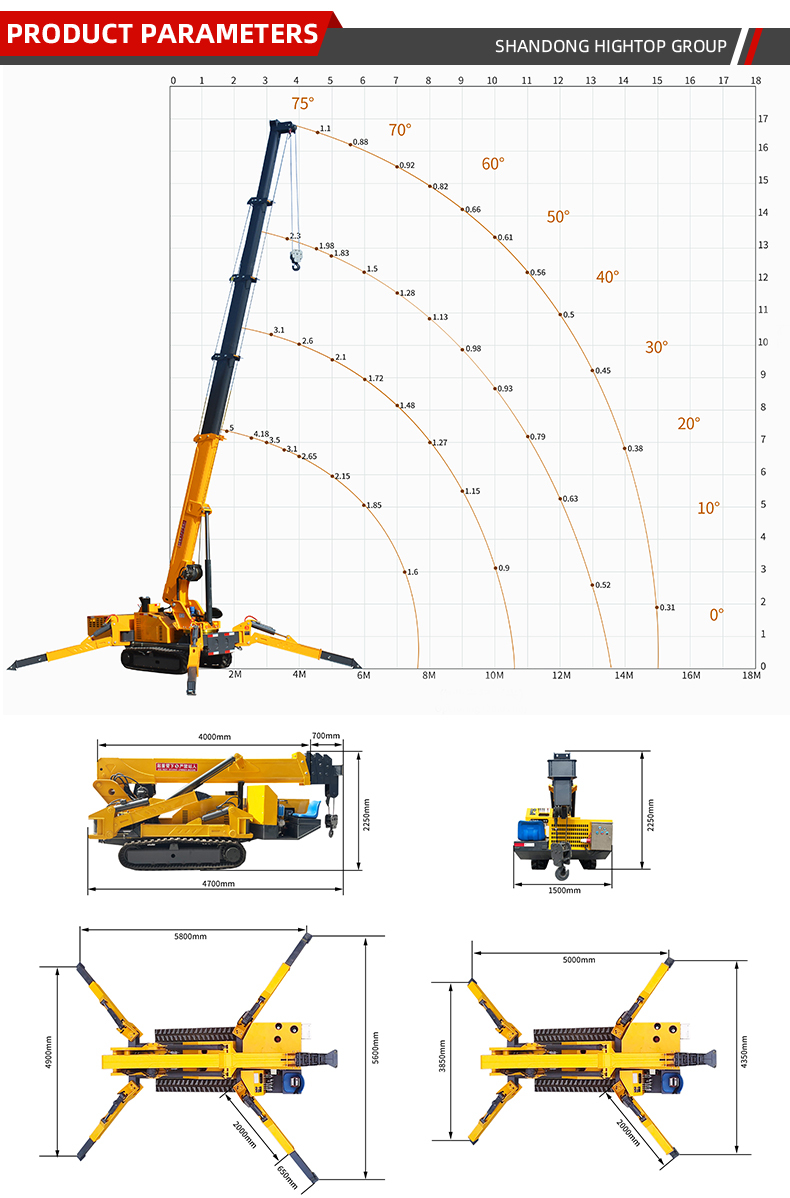

Maximum Operating Radius 15m
Maximum Above Ground Lift 17m
Boom Configuration 4m x 5-section boom (customizable)
Boom Extension Time 4.5m-17m / 54 seconds (adjustable)
Boom Luffing 0-78° / 13 seconds
Slewing 0-360° continuous / 38 seconds
Outrigger Extension 5800mm (length) * 4900mm (rear) * 5600mm (front)
Travel Speed 0-2.5 km/h
Gradeability 25° (36%)

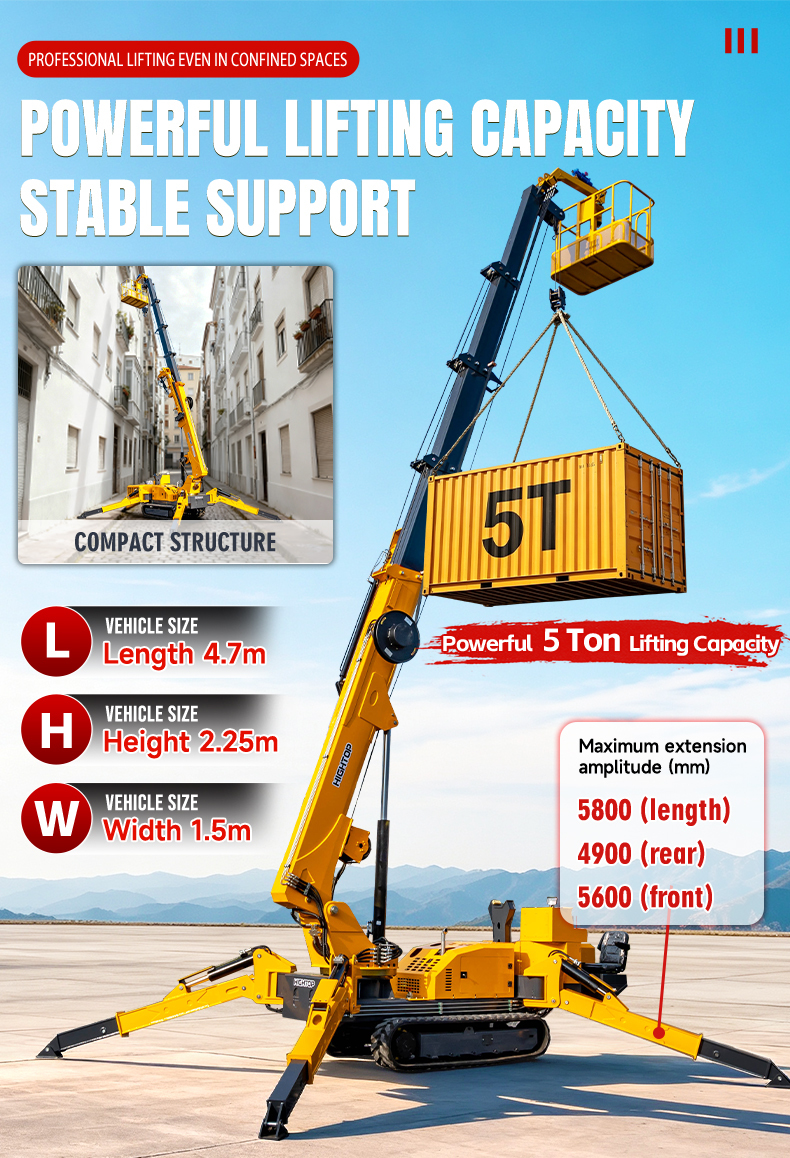

Vehicle Dimensions Length 4.7m * Width 1.5m * Height 2.25m
Self-weight 6.7 Tons
Winch System
Hook Rising Speed 12 m/min (4 ropes) Two-speed
Wire Rope Specifications Φ11mm * 60m
Power System
Engine Manufacturer Yuchai (customizable) 58kw
Model Number 490CC
Start Mode Electric Start
Operating Temperature Range -50°C to 45°C
Fuel Capacity Diesel / 35L
Battery Capacity 24V 45AH
Emission Standard National Phase II
Operation & Control
Standard operation includes manual control for boom, outrigger, and travel functions. Optional remote control operation available for enhanced convenience and safety.

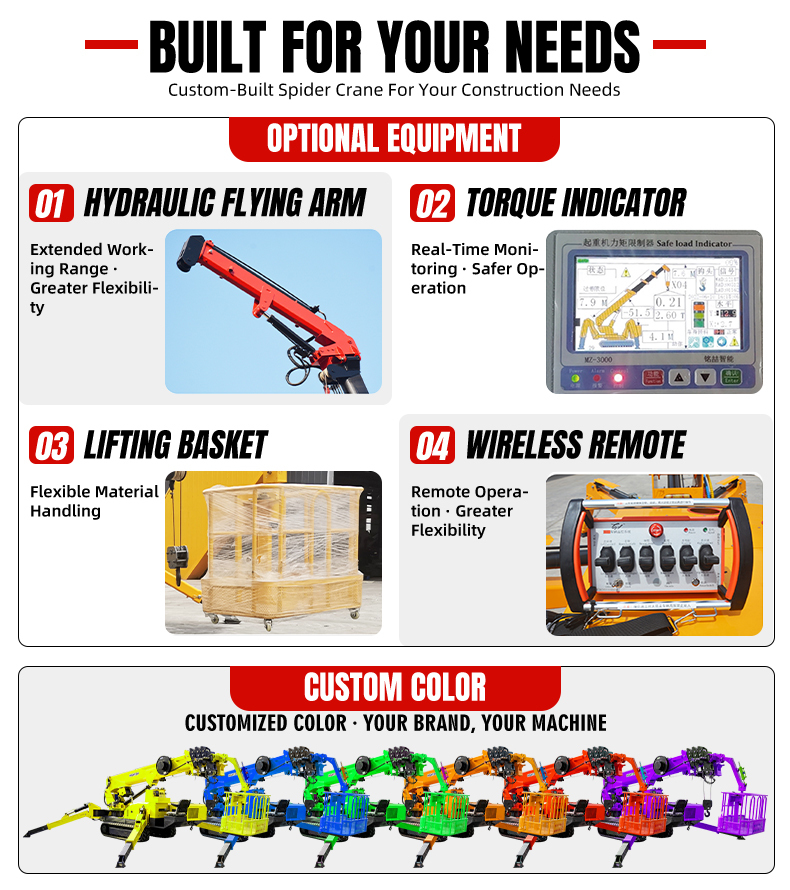

Optional Features
  • Torque Controller
  • Remote Control System
  • Cradle Attachment
  • Hydraulic Flying Jib
  • Custom Colors: Red, Green, Yellow, White, Grey, Black

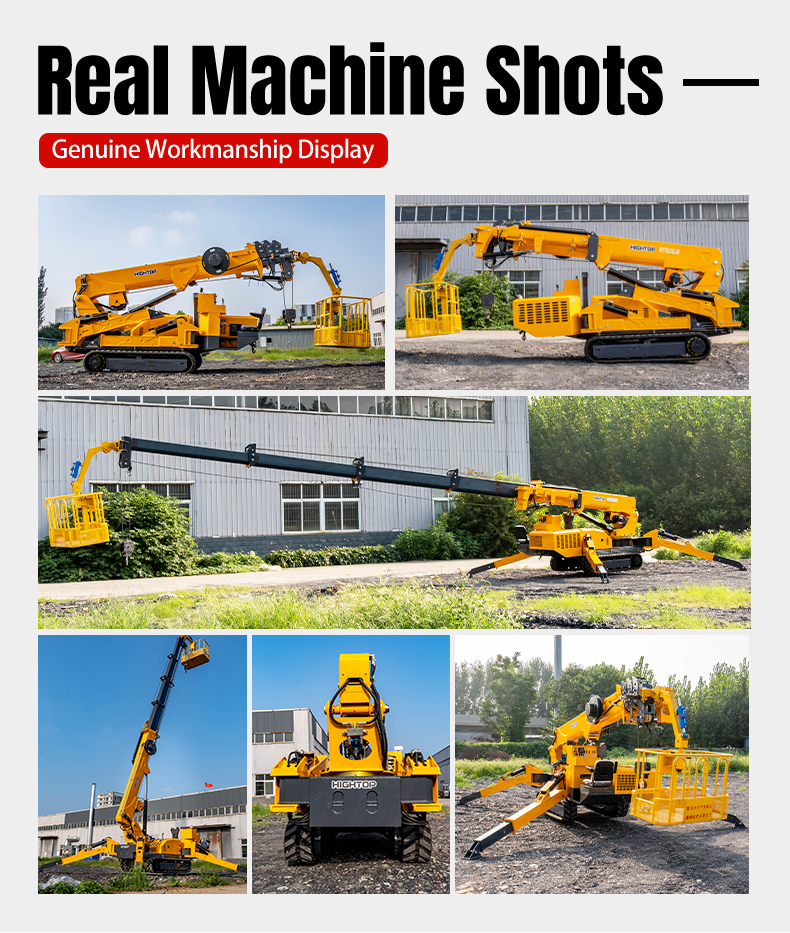

Product Gallery
