Specifications
Model Number :
HTSC3.0
Maximum operating radius :
10m
MOQ :
1 set
Delivery Time :
5-14 work days
Hook Rising Speed :
0-8m/min(4 ropes)
Payment Terms :
L/C,D/A,D/P,T/T
Model :
HTSC3.0
Brand Name :
Hightop
Rotation angle/speed :
0-360° (continuous)/60sec
Packaging Details :
Wooden case
Price :
Negotiation
Maximum above ground lift :
10.8m
Supply Ability :
100 set per month
Voltage :
AC380V
Certification :
CE，EPA，ISO，TUV
Boom angle/time :
0-78°/13sec
Place of Origin :
China
norm :
3T
Description

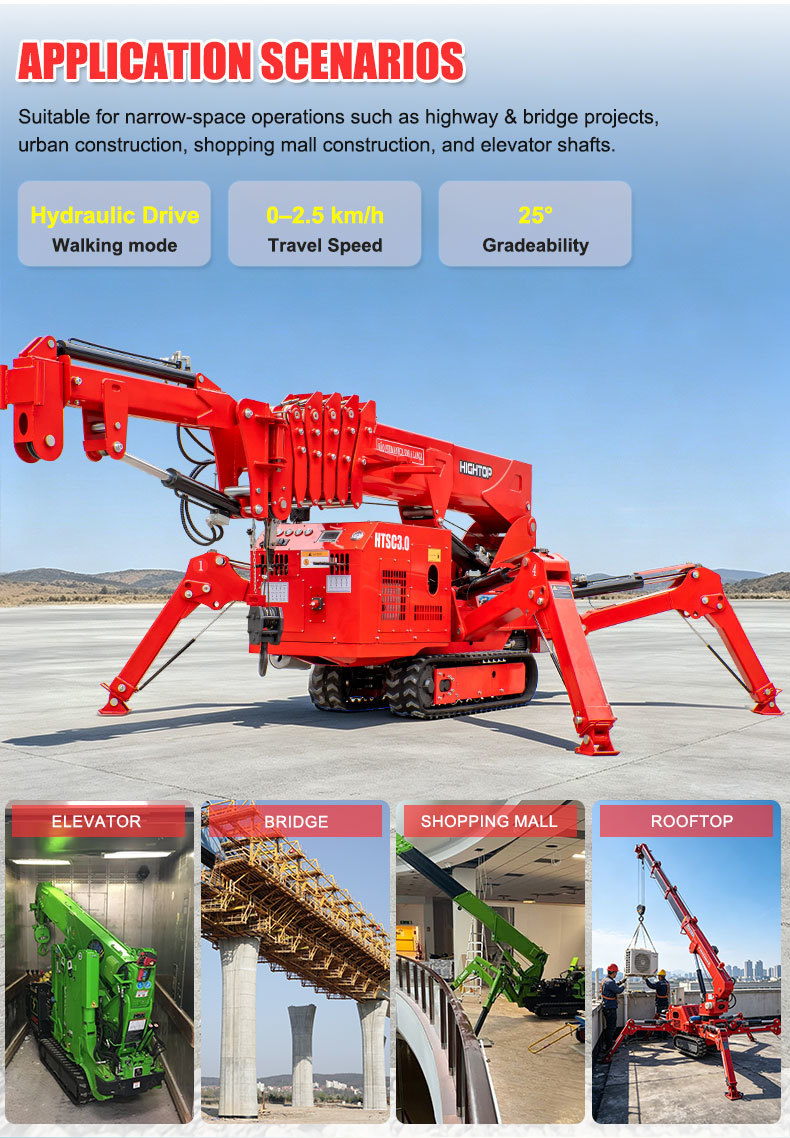

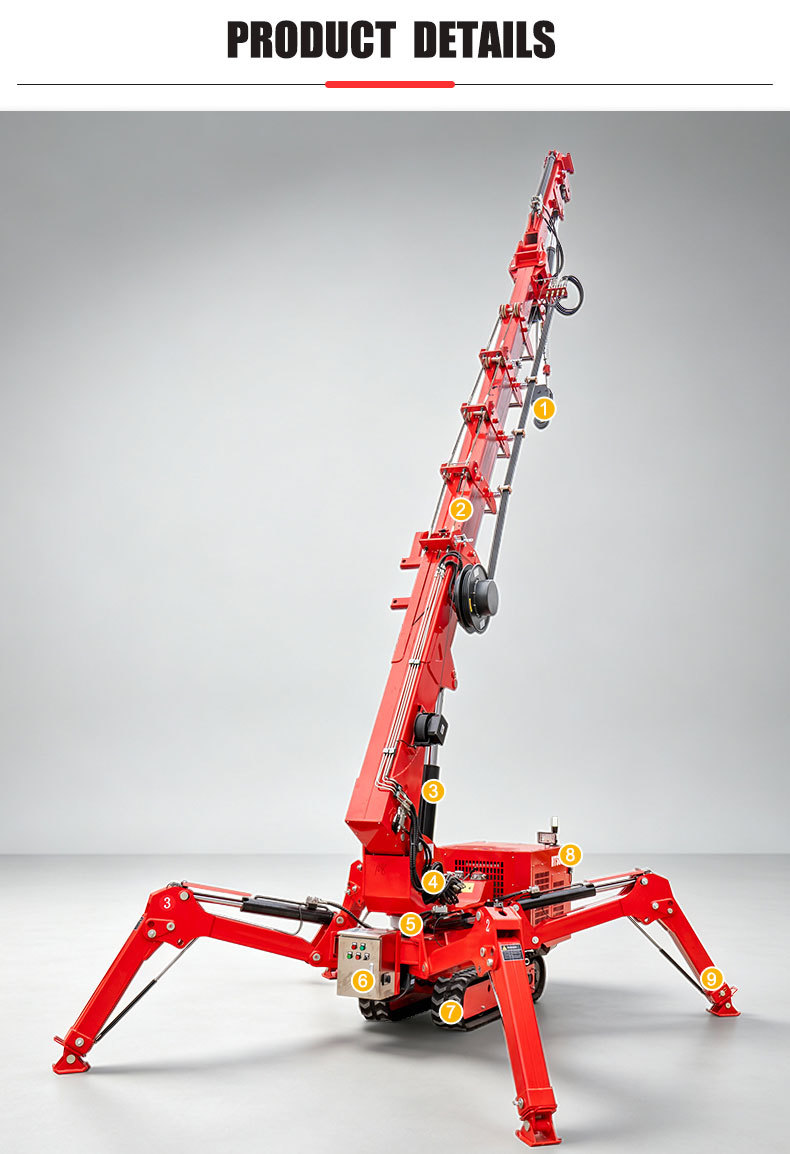

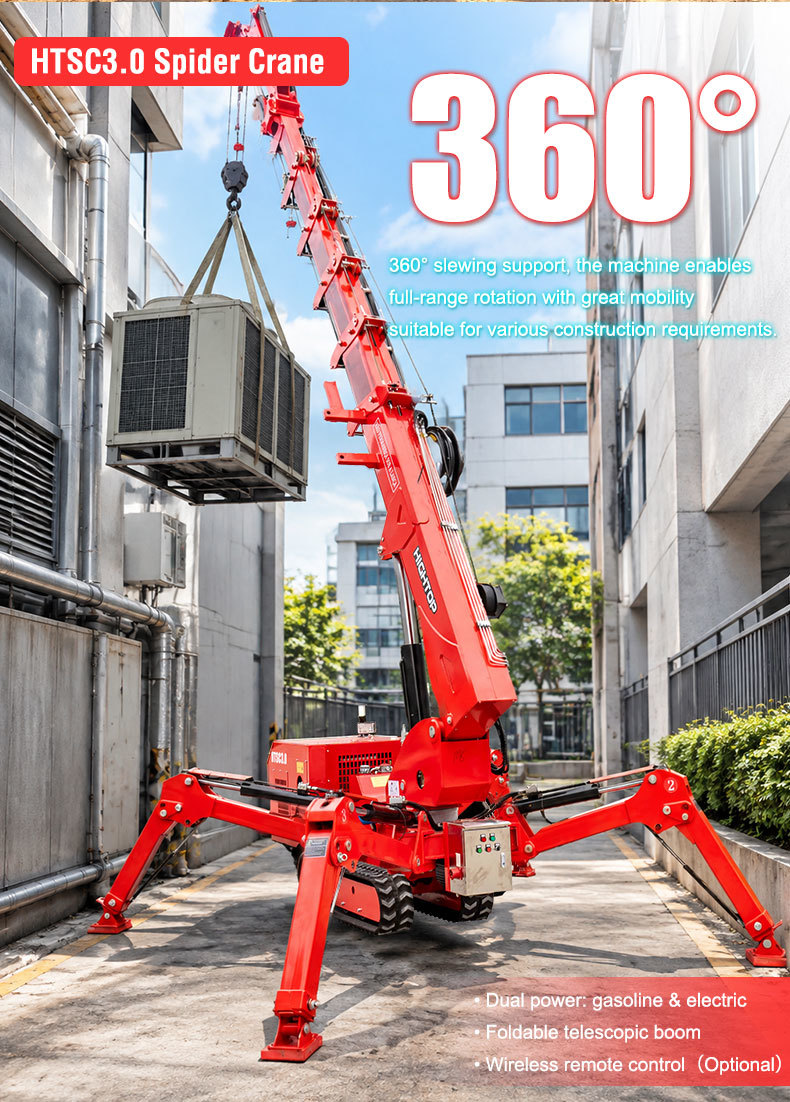

The 3-ton crawler spider crane is a miniature fully-hydraulic telescopic crawler crane. Due to its four independently extendable and foldable hydraulic legs resembling the limbs of a spider, it is named the Spider Crane. Core positioning: A specialized lifting equipment for narrow spaces, solving the lifting problems that ordinary truck cranes and large cranes cannot handle when entering indoor areas or narrow passages.

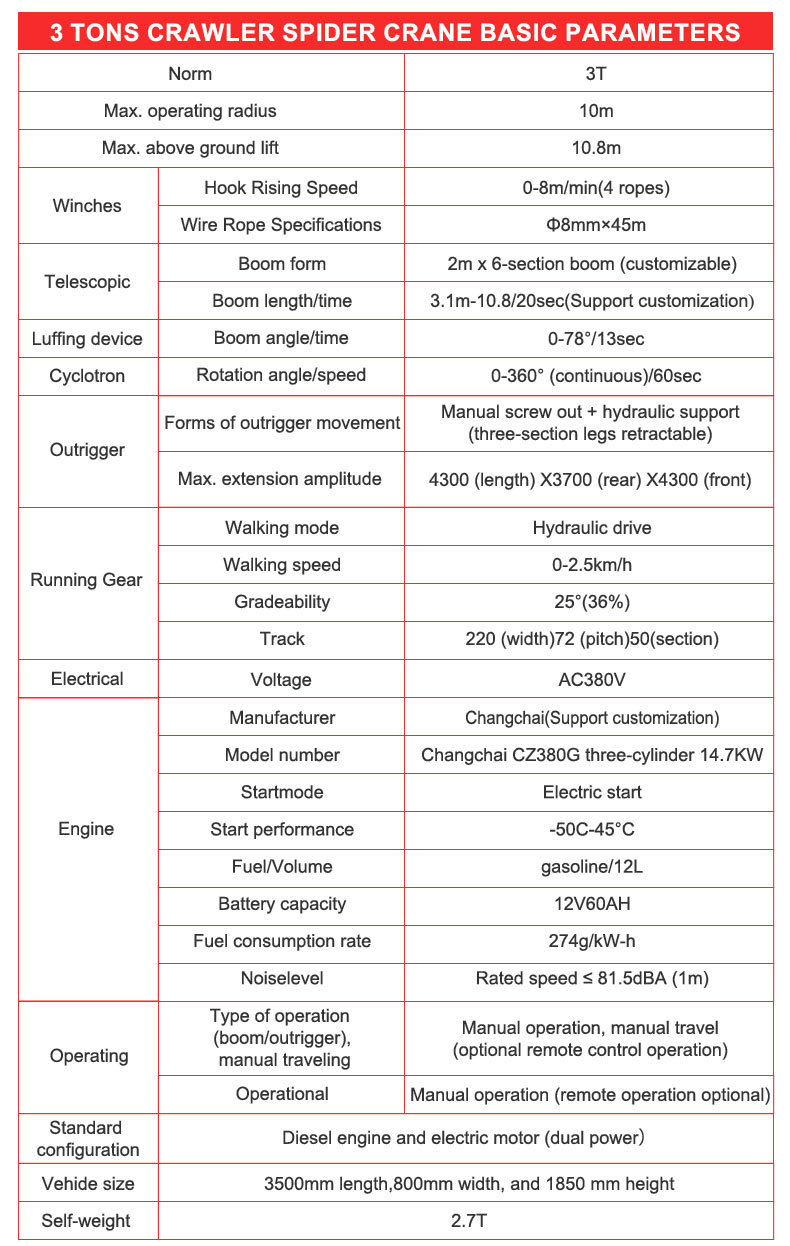

3 tons crawler spider crane basic parameters

norm

3T

Maximum operating radius

10m

Maximum above ground lift

10.8m

winches

Hook Rising Speed

0-8m/min(4 ropes)

Wire Rope Specifications

Φ8mm×45m

Telescopic

Boom form

2.4m x 6-section boom (customizable)

Boom length/time

3.1m-10.8m/20sec(adjustable)

luffing device

Boom angle/time

0-78°/13sec

cyclotron

Rotation angle/speed

0-360° (continuous)/60sec

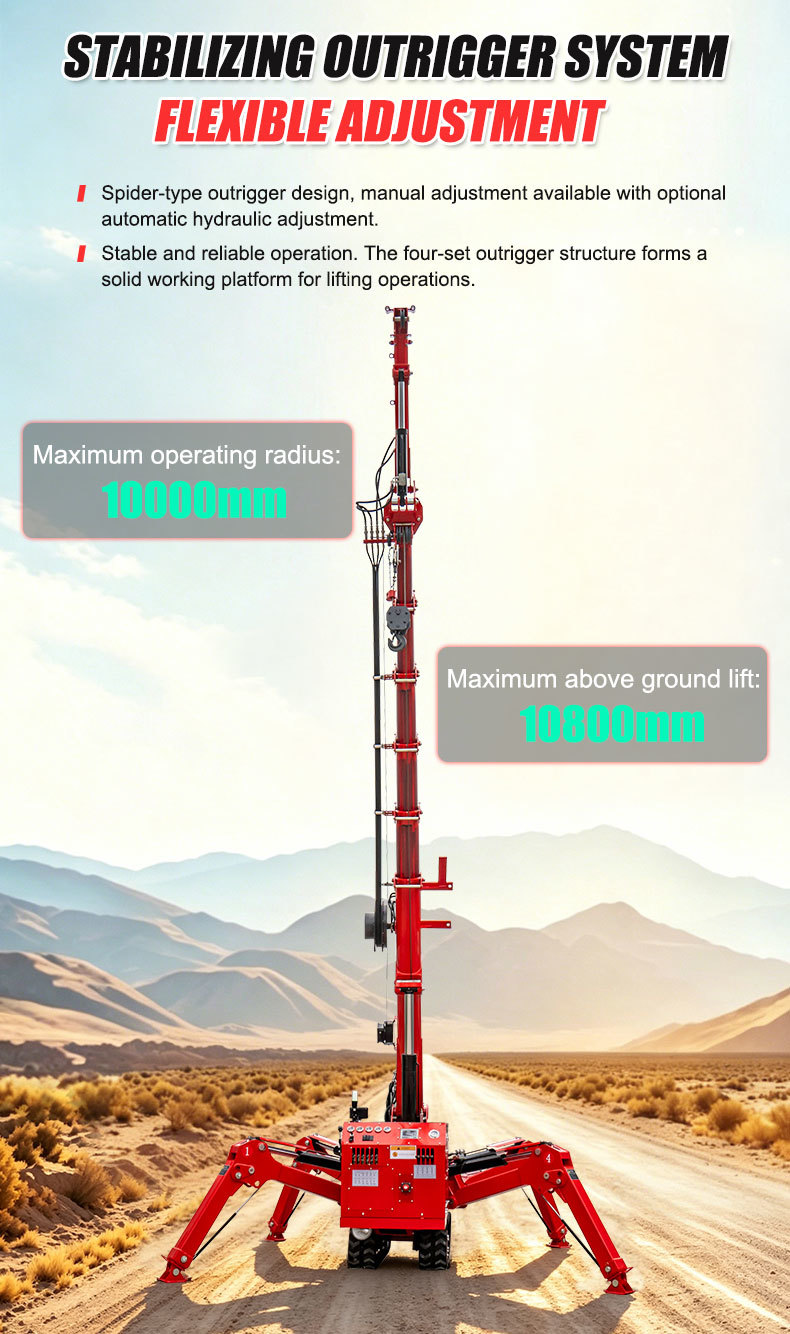

Outrigger

Forms of outrigger movement

Manual screw out + hydraulic support
(three-section legs retractable)

Maximum extension amplitude (mm)

4300 (length) X3700 (rear) X4300 (front)

Running Gear

Walking mode

hydraulic drive

Walking speed

0-2.5km/h

Gradeability

25°(36%)

Track

220 (width)72 (pitch)50(section)

Electrical

Voltage

AC380V

Engine

Manufacturer

Changchai(Support customization)

model number

Changchai CZ380G three-cylinder 14.7KW

Start mode

electric start

Start performance

-50°C-45°C

Fuel/Volume

Diesel/12L

Battery capacity

12V60AH

Fuel consumption rate

274g/kW-h

Noise level

Rated speed ≤ 81.5dBA (1m)

Operating

Type of operation (boom/outrigger),
 manual traveling

Manual operation, manual travel
(optional remote control operation)

Operational

Manual operation (remote operation optional)

standard configuration

Diesel engine and electric motor (dual power)

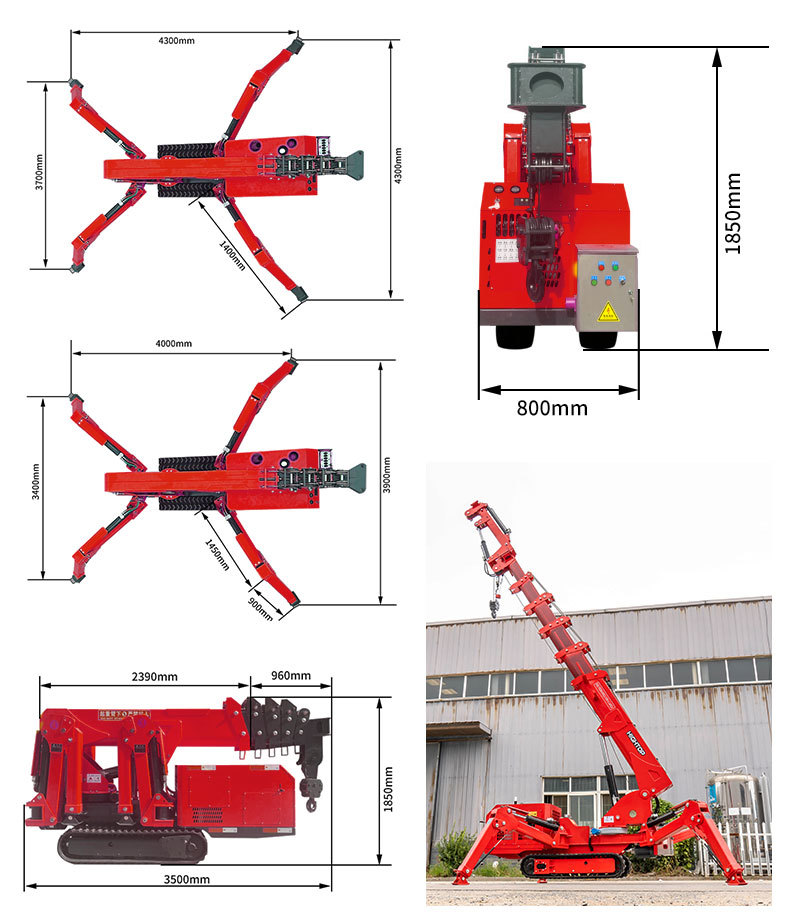

Vehicle size

Length 3.5m Width 0.8m Height 1.85m

Self-weight (T)

2.7T

Optional

Optional torque controller/remote control/cradle/hydraulic flying jib/colors: red, green, yellow, white, grey, black
