HTSC300-3 Ton Crawler Spider Crane with 10.5m Max Working Radius
HTSC300-3 Ton Crawler Spider Crane with 10.5m Max Working Radius
HTSC300-3 Ton Crawler Spider Crane with 10.5m Max Working Radius
HTSC300-3 Ton Crawler Spider Crane with 10.5m Max Working Radius
HTSC300-3 Ton Crawler Spider Crane with 10.5m Max Working Radius
HTSC300-3 Ton Crawler Spider Crane with 10.5m Max Working Radius
HTSC300-3 Ton Crawler Spider Crane with 10.5m Max Working Radius
HTSC300-3 Ton Crawler Spider Crane with 10.5m Max Working Radius
HTSC300-3 Ton Crawler Spider Crane with 10.5m Max Working Radius
HTSC300-3 Ton Crawler Spider Crane with 10.5m Max Working Radius
HTSC300-3 Ton Crawler Spider Crane with 10.5m Max Working Radius
HTSC300-3 Ton Crawler Spider Crane with 10.5m Max Working Radius
Specifications
Model Number :
HTSC300-3
Max working radus :
10.5m
MOQ :
1 set
Delivery Time :
5-14 work days
Gyratory angle/time :
0-360 (continuous) /60sec
Payment Terms :
L/C,D/A,D/P,T/T
Travelling speed :
0-2.5km/h
Brand Name :
Hightop
Specification :
3 ton
Packaging Details :
Wooden case
Price :
Negotiation
Operating type :
Hydraulic automatic support +manual unscrewing
Certification :
CE，EPA，ISO，TUV
Max ground Ifting height :
10.8m
Supply Ability :
100 set per month
Track size :
2420mm
Place of Origin :
China
Boom angle/time :
0-78°/13sec
Description

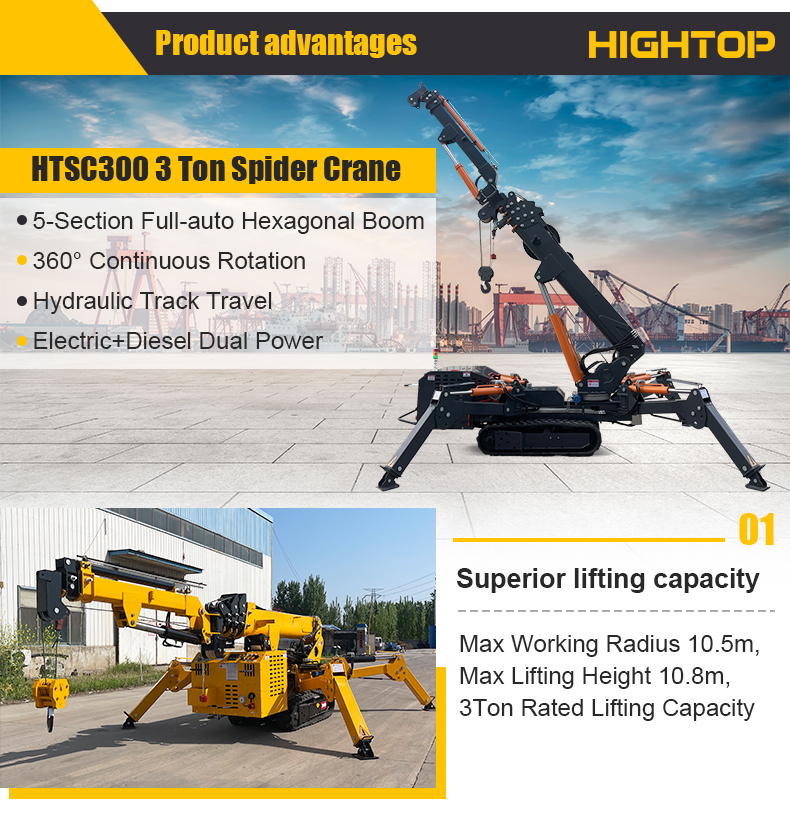

HTSC300-3 Ton Spider Crane

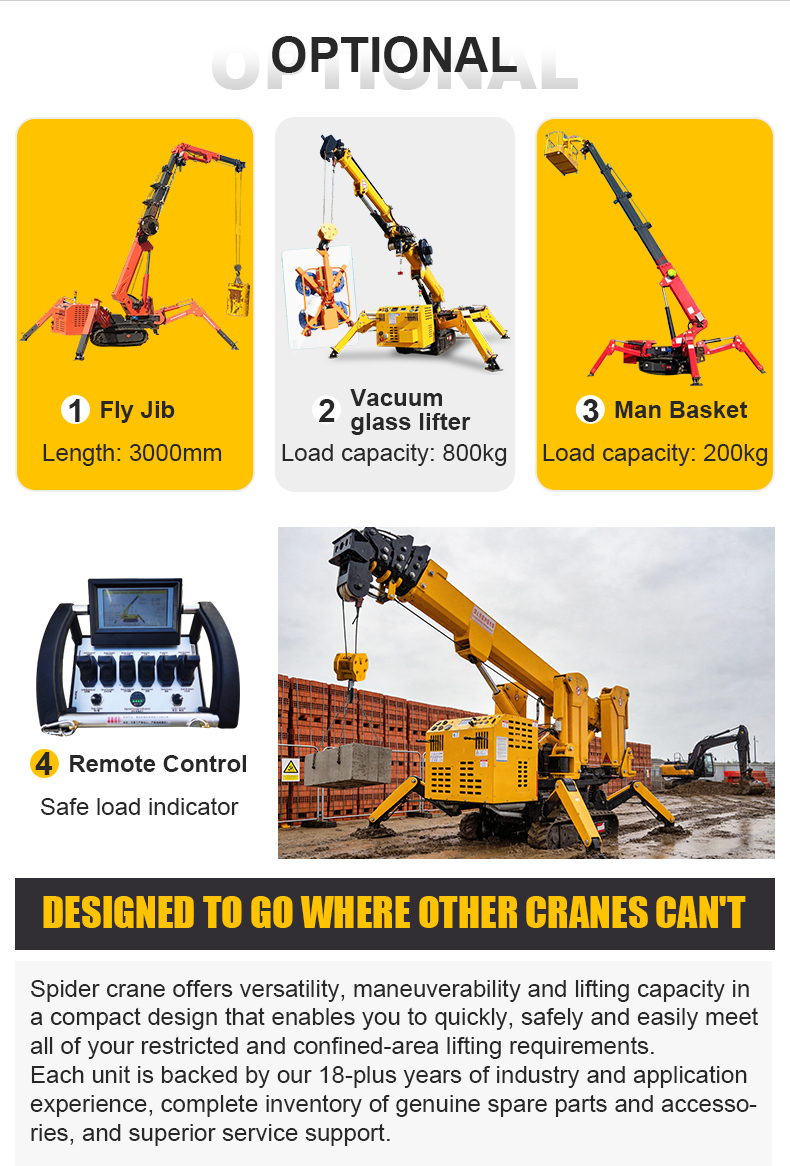

The spider crane offers versatility, maneuverability, and lifting capacity in a compact design that enables you to quickly, safely, and easily meet all of your restricted and confined-area lifting requirements. Each unit is backed by our 18-plus years of industry and application experience, complete inventory of genuine spare parts and accessories, and superior service support.

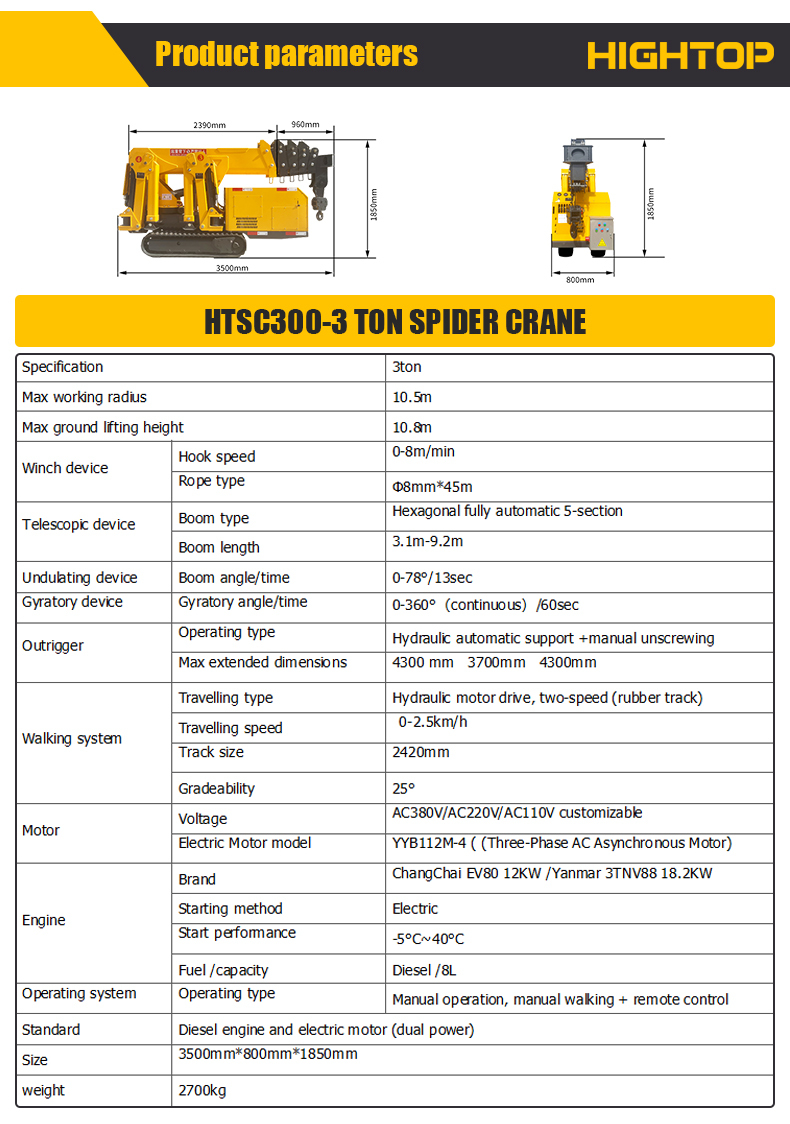

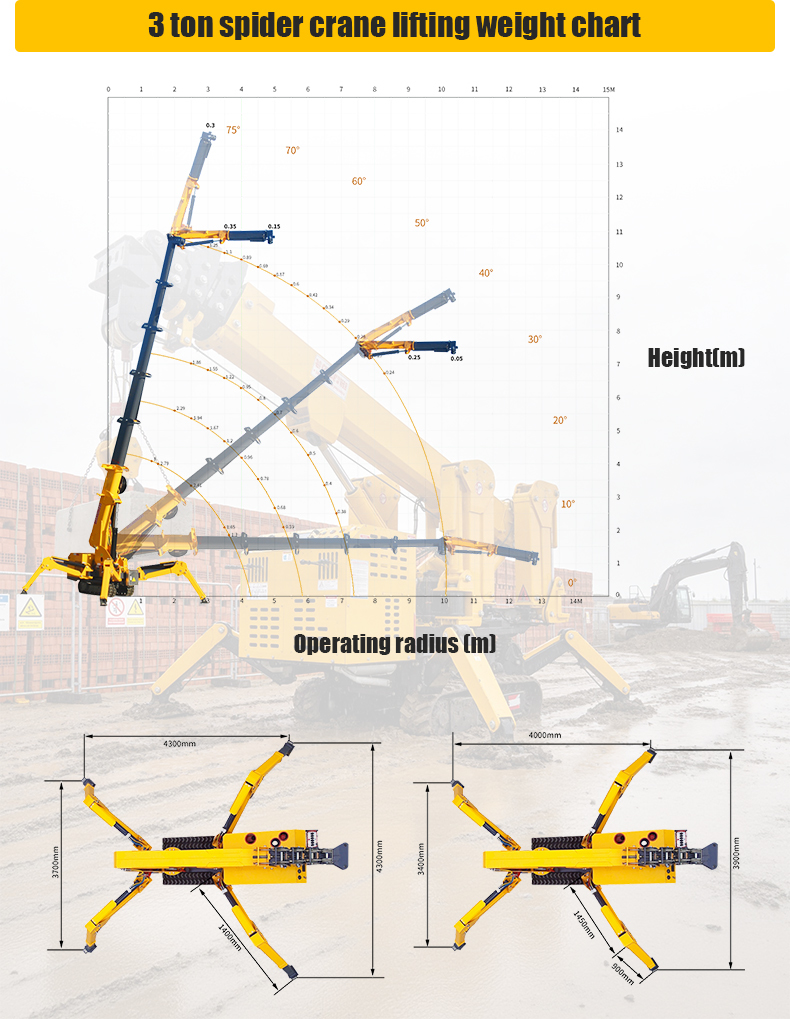

Technical Specifications
Specification Details
Capacity 3 ton
Max Working Radius 10.5 m
Max Ground Lifting Height 10.8 m
Winch Device Hook Speed: 0-8 m/min
Rope Type: Φ8mm × 45m

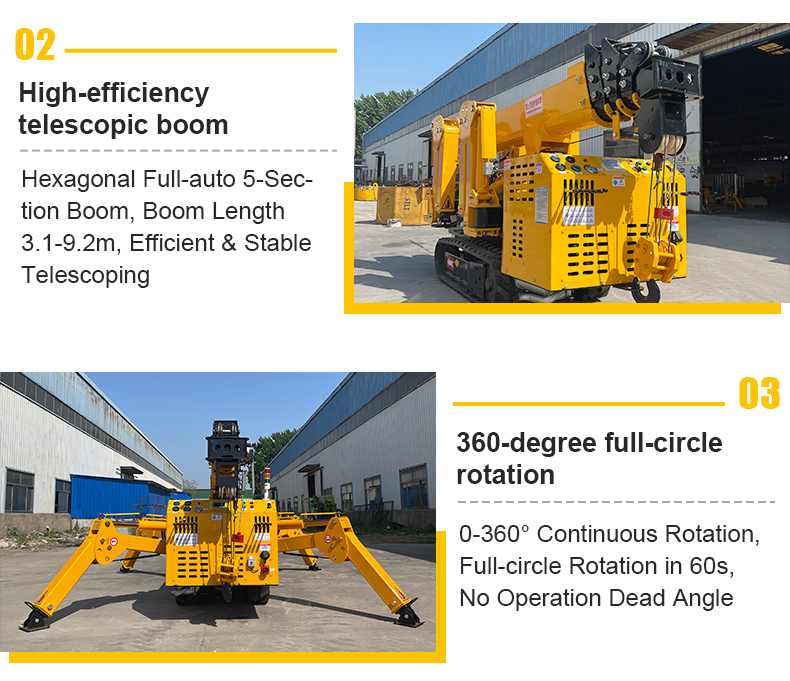

Telescopic Device Boom Type: Hexagonal fully automatic 5-section
Boom Length: 3.1m - 9.2m
Undulating Device Boom Angle/Time: 0-78°/13 sec
Gyratory Device Gyratory Angle/Time: 0-360° (continuous)/60 sec
Outrigger Operating Type: Hydraulic automatic support + manual unscrewing
Max Extended Dimensions: 4300 mm × 3700 mm × 4300 mm

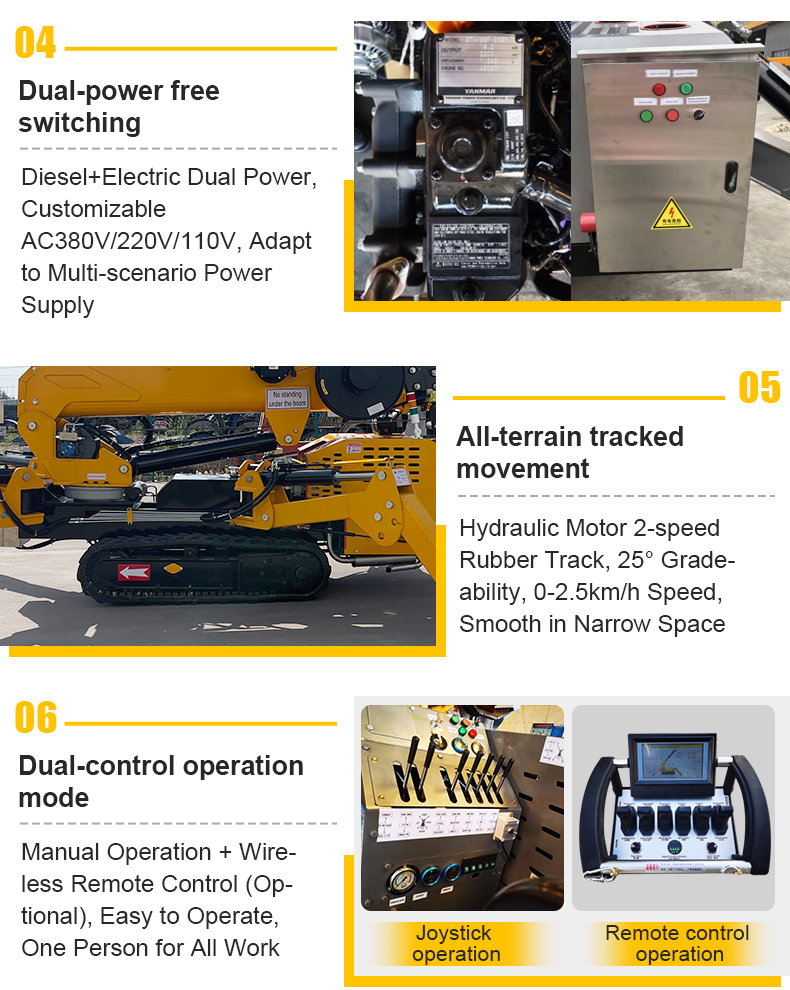

Walking System Travelling Type: Hydraulic motor drive, two-speed (rubber track)
Travelling Speed: 0-2.5 km/h
Track Size: 2420 mm
Gradeability: 25°
Motor Voltage: AC380V/AC220V/AC110V customizable
Electric Motor Model: YYB112M-4 (Three-Phase AC Asynchronous Motor)
Engine Brand: ChangChai EV80 12KW / Yanmar 3TNV88 18.2KW
Starting Method: Electric
Start Performance: -5°C to 40°C
Fuel/Capacity: Diesel/8L
Operating System Operating Type: Manual operation, manual walking + remote control
Standard Diesel engine and electric motor (dual power)
Size 3500 mm × 800 mm × 1850 mm
Weight 2700 kg

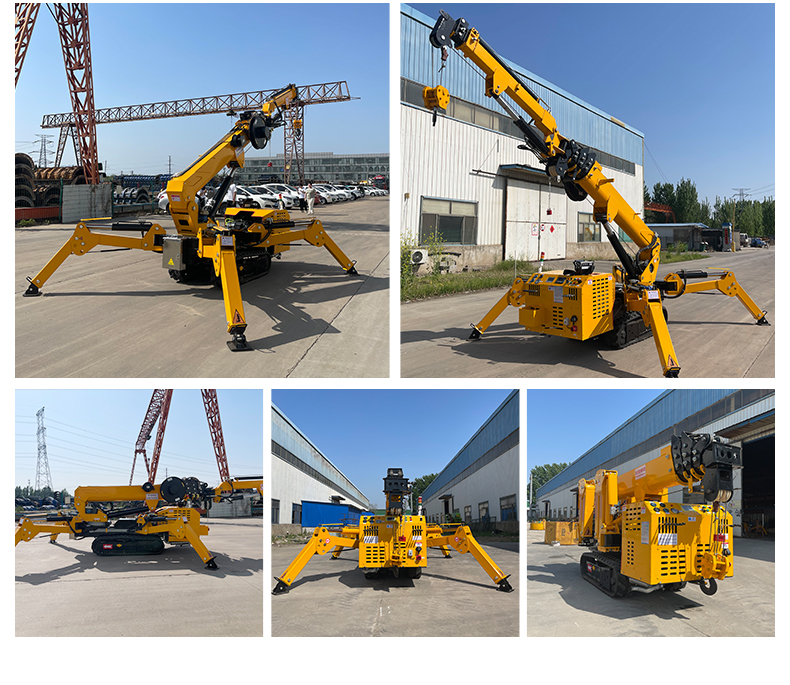

Product Gallery
