Indoor Wireless 4G LTE Antenna Signal Coverage Multi Band Panel Antenna
Indoor Wireless 4G LTE Antenna Signal Coverage Multi Band Panel Antenna
Indoor Wireless 4G LTE Antenna Signal Coverage Multi Band Panel Antenna
Indoor Wireless 4G LTE Antenna Signal Coverage Multi Band Panel Antenna
Indoor Wireless 4G LTE Antenna Signal Coverage Multi Band Panel Antenna
Indoor Wireless 4G LTE Antenna Signal Coverage Multi Band Panel Antenna
Specifications
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSW-700-2700-10
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product name :
Multi band Antenna
Feature :
High Gain, Lower VSWR
Application :
GSM/CDMA/PCS/3G/WLAN system
Frequency rang-MHz :
806～960/1710～2700
beam width -° :
H:70/60 V:55/45
VSWR :
≤1.5
Description

Indoor Wireless 4G LTE Antenna Signal Coverage Multi Band Panel Antenna

Feature:

● Good appearance
● Durable, corrosion resistance
● Full day for working ,waterproof
● Optimized dimension
● High Gain, Lower VSWR, Strongly Anti-interference


Application:


● Indoor signal coverage
● GSM/CDMA/PCS/3G/WLAN system
● 700-2700MHZ frequency band
● Wireless transmission
● 4G LTE communication system

Specification

Model NO

RSW-700-2700-10

Electric Spec

Frequency rang-MHz

698～960/1710～2700

Bandwidth -MHz

262/990

Gain -dBi

7/10

beam width -°

H:70/60 V:55/45

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

50

Lightning protection

DC ground

Connector model

N Female

Mechanical Specification

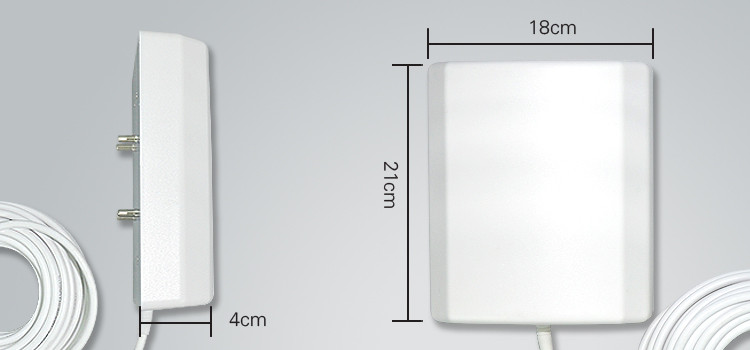

Size -mm

210*180*45

Antenna weight-kg

0.57

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Radome color

white

Mounting way

mount on the wall or hold in the pole

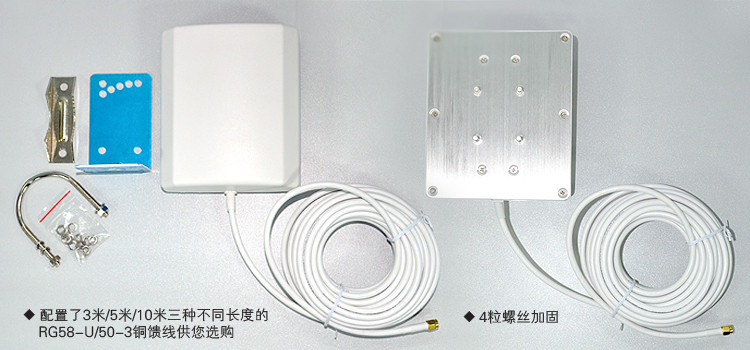

Antenna details :

Application Example :

Install demonstration

View of us ;
