Multiband Vertical 4G LTE Antenna GSM WLAN for Outside , Waterpoof
Multiband Vertical 4G LTE Antenna GSM WLAN for Outside , Waterpoof
Multiband Vertical 4G LTE Antenna GSM WLAN for Outside , Waterpoof
Multiband Vertical 4G LTE Antenna GSM WLAN for Outside , Waterpoof
Multiband Vertical 4G LTE Antenna GSM WLAN for Outside , Waterpoof
Multiband Vertical 4G LTE Antenna GSM WLAN for Outside , Waterpoof
Specifications
Model Number :
RSL-800-2500-9
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product name :
Multiband Antenna
Feature :
Provide with mount kits
Application :
800-2500MHZ frequency band/Wireless transmission
Frequency rang-MHz :
806～960/1710～2500
Bandwidth -MHz :
154/790
Gain -dBi :
8/9
Description


Multiband Vertical 4G LTE Antenna GSM WLAN for Outside , Waterpoof


Feature:
● Good appearance
● Durable corrosion resistance
● Provide with mount kits
● Optimized dimension
● Designed by board band technology


Application:
● GSM/CDMA/PCS/3G/WLAN system
● 800-2500MHZ frequency band
● Wireless transmission

Specification

Model NO

RSL-800-2500-9

Electric Spec

Frequency rang-MHz

806～960/1710～2500

Bandwidth -MHz

154/790

Gain -dBi

8/9

beam width -°

H:95/75 V:60/55

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

50

Lightning protection

DC ground

Connector model

N Female

Mechanical Specification

Size -mm

295*205*65

Antenna weight-kg

0.75

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Radome color

white

Mounting way

hold in the pole




Antenna details :













Application Example :

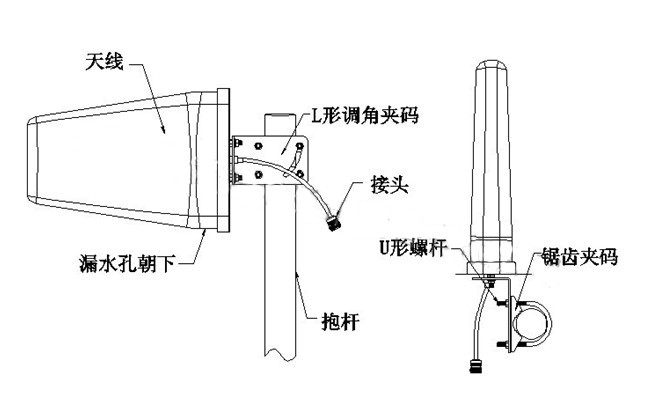

Install demonstration




View of us ;
