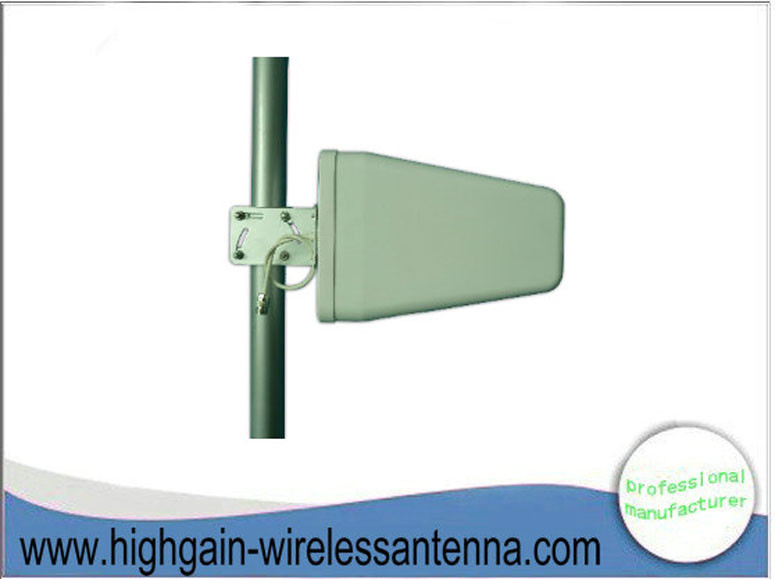

4G LTE Vertical Multiband Antennas / Log Periodic Antennas Broadband
4G LTE Vertical Multiband Antennas / Log Periodic Antennas Broadband
Specifications
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSL-700-2700-9
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product name :
Multiband Antennas
Feature :
Durable corrosion resistance,Optimized dimension
Application :
4G LTE communication system
Frequency rang-MHz :
806～960/1710～2700
Bandwidth -MHz :
154/990
Gain -dBi :
8/9
Description


4G LTE Vertical Multiband Antennas / Log Periodic Antennas Broadband

Feature:


● Good appearance
● Durable corrosion resistance
● Provide with mount kits
● Optimized dimension
● Designed by board band technology

Application:


● GSM/CDMA/PCS/3G/WLAN system
● 698-2700MHZ frequency band
● Wireless transmission

● 4G LTE communication system

Specification

Model NO

RSL-700-2700-9

Electric Spec

Frequency rang-MHz

698～960/1710～2700

Bandwidth -MHz

262/990

Gain -dBi

8/9

beam width -°

H:95/75 V:60/55

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

50

Lightning protection

DC ground

Connector model

N Female

Mechanical Specification

Size -mm

295*205*65

Antenna weight-kg

0.75

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Radome color

white

Mounting way

hold in the pole

Antenna details :

Application Example :

Install demonstration

View of us ;
