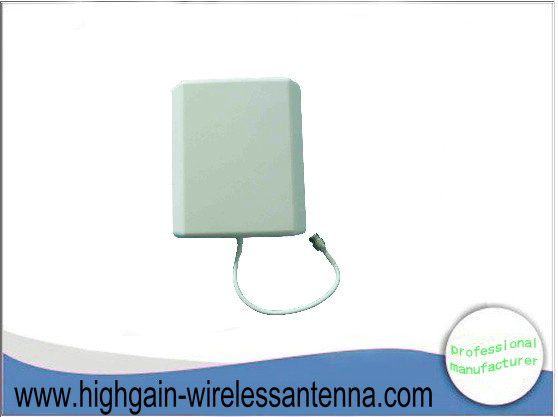

Signal CDMA 800 / GSM900 Multiband Antenna Panel Indoor 7dBi 10dBi
Signal CDMA 800 / GSM900 Multiband Antenna Panel Indoor 7dBi 10dBi
Specifications
Model Number :
RSW-800-2500-10
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product name :
Multiband Antenna
Feature :
High Gain, Lower VSWR, Strongly Anti-interference
Application :
Indoor signal coverage,CDMA800/GSM900/3G/WLAN
Frequency rang-MHz :
806～960/1710～2500
Bandwidth -MHz :
154/790
beam width -° :
H:70/60 V:55/45
Description

Signal CDMA 800 / GSM900 Multiband Antenna Panel Indoor 7dBi 10dBi

Feature:

● Good appearance
● Durable, corrosion resistance
● Full day for working ,waterproof
● Optimized dimension
● High Gain, Lower VSWR, Strongly Anti-interference

Application:


● Indoor signal coverage
● CDMA800/GSM900/3G/WLAN system
● Wireless transmission

Specification

Model NO

RSW-800-2500-10

Electric Spec

Frequency rang-MHz

806～960/1710～2500

Bandwidth -MHz

154/790

Gain -dBi

7/10

beam width -°

H:70/60 V:55/45

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

50

Lightning protection

DC ground

Connector model

N Female

Mechanical Specification

Size -mm

210*180*45

Antenna weight-kg

0.57

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Radome color

white

Mounting way

mount on the wall or hold in the pole

Antenna details :

Application Example :

Install demonstration

View of us ;
