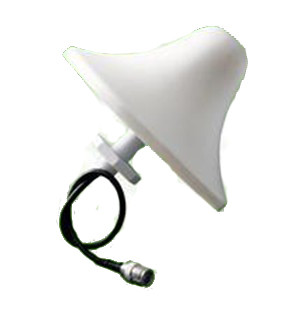

Omni Directional Ceiling Mount 4G LTE Antenna High Gain Φ 165 x 95mm
Omni Directional Ceiling Mount 4G LTE Antenna High Gain Φ 165 x 95mm
Omni Directional Ceiling Mount 4G LTE Antenna High Gain Φ 165 x 95mm
Omni Directional Ceiling Mount 4G LTE Antenna High Gain Φ 165 x 95mm
Specifications
Model Number :
RSC-800-2500-3
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product name :
Multiband Antenna
Feature :
Common ceiling mount, Multi-band
Application :
Indoor Omni-directional coverage
Frequency rang-MHz :
806～960/1710～2500
beam width -° :
H:360 V:55
Polarization :
Vertical
Description

Omni Directional Ceiling Mount 4G LTE Antenna High Gain Φ 165 x 95mm

Feature:


● Good appearance
● Full day for working ,waterproof
● Optimized dimension
● Common ceiling mount, Multi-band
● High Gain, Lower VSWR, Strongly Anti-interference

Application:


● Indoor Omni-directional coverage
● GSM/CDMA/PCS/3G/WLAN

Specification

Model NO

RSC-800-2500-3

Electric Spec

Frequency rang-MHz

806～960/1710～2500

Bandwidth -MHz

154/790

Gain -dBi

3

beam width -°

H:360 V:55

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

50

Lightning protection

DC ground

Connector model

N Female

Mechanical Specification

Size -mm

Φ165*95

Antenna weight-kg

0.2

Working Temperature -°c

-40～60

Radome color

white

Mounting way

twisted with screw

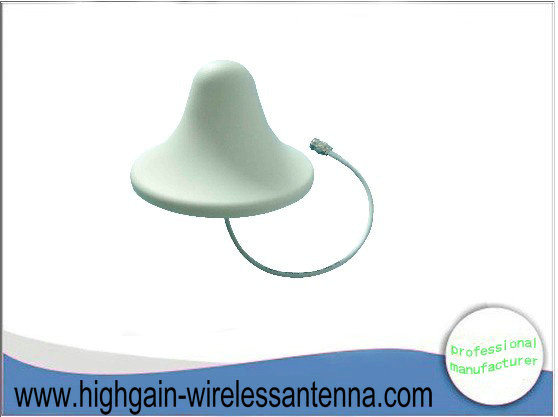

Antenna details :

Application Example :

Install demonstration

View of us ;
