Outdoor Multiband 4G LTE Antenna for Wireless Transmission N Female
Outdoor Multiband 4G LTE Antenna for Wireless Transmission N Female
Outdoor Multiband 4G LTE Antenna for Wireless Transmission N Female
Outdoor Multiband 4G LTE Antenna for Wireless Transmission N Female
Outdoor Multiband 4G LTE Antenna for Wireless Transmission N Female
Outdoor Multiband 4G LTE Antenna for Wireless Transmission N Female
Specifications
Model Number :
RSL-800-2500-11
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product name :
Multiband Antenna
Feature :
Provide with mount kits,Durable
Application :
GSM/CDMA/PCS/3G/WLAN system
beam width -° :
H:65/50 V:55/40
VSWR :
≤1.5
Polarization :
Vertical
Description


Outdoor Multiband 4G LTE Antenna for Wireless Transmission N Female



Application:
● GSM/CDMA/PCS/3G/WLAN system
● 800-2500MHZ frequency band
● Wireless transmission


Feature:
● Good appearance
● Durable corrosion resistance
● Provide with mount kits
● Optimized dimension
● Designed by board band technology


Specification

Model NO

RSL-800-2500-11

Electric Spec

Frequency rang-MHz

806～960/1710～2500

Bandwidth -MHz

154/790

Gain -dBi

10/11

beam width -°

H:65/50 V:55/40

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

50

Lightning protection

DC ground

Connector model

N Female

Mechanical Specification

Size -mm

445*210*65

Antenna weight-kg

0.91

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Radome color

white

Mounting way

hold in the pole

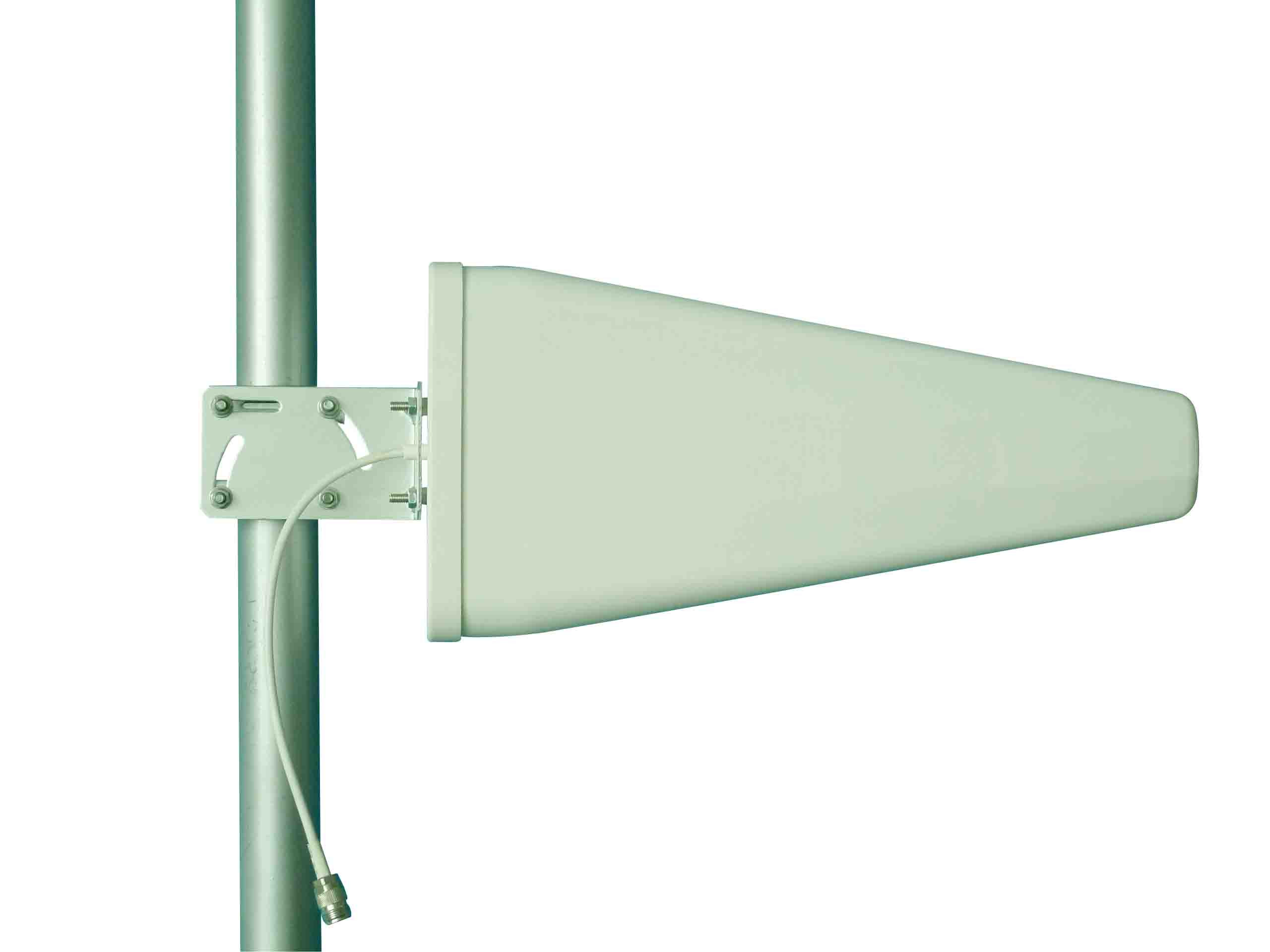

Antenna details :









Application Example :

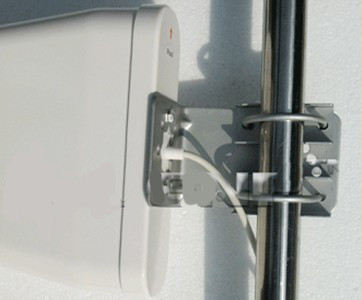

Install demonstration
