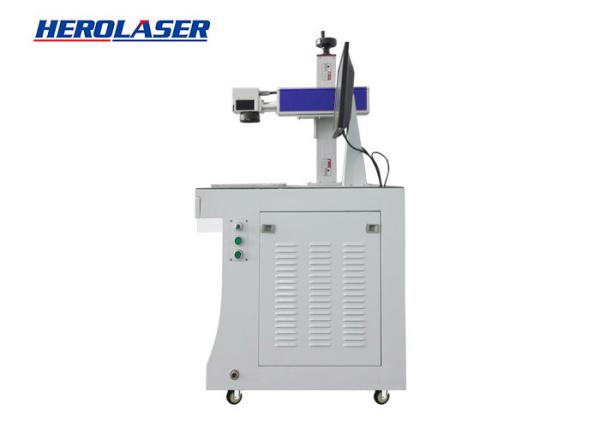

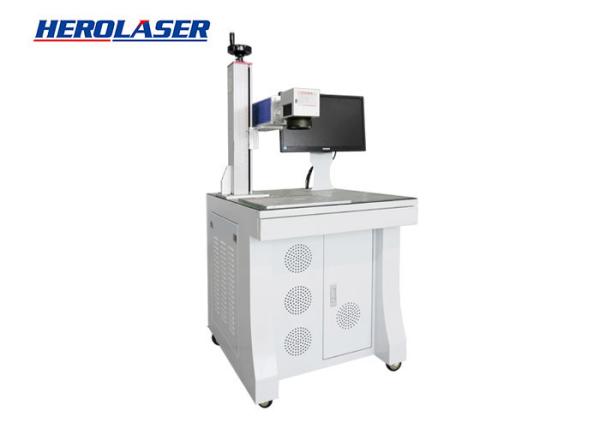

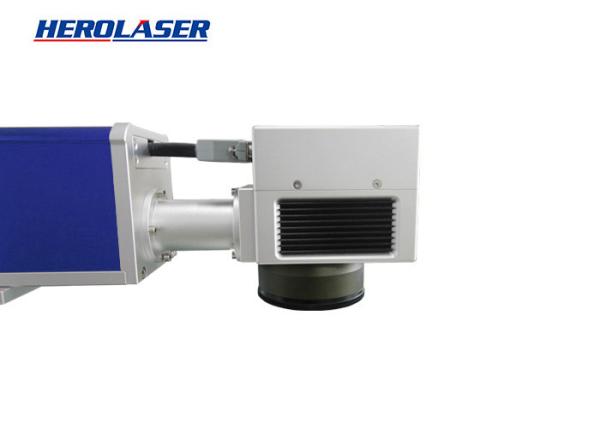

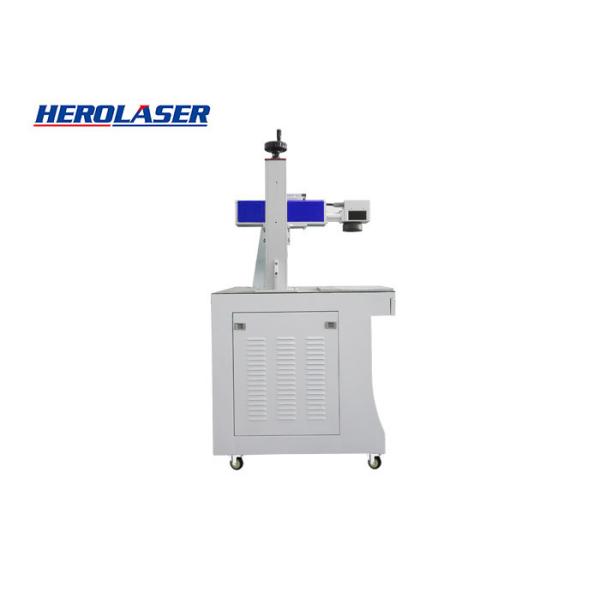

High Accuracy 1064nm 10W Portable Fiber Laser Marking Machine For Metal
High Accuracy 1064nm 10W Portable Fiber Laser Marking Machine For Metal
High Accuracy 1064nm 10W Portable Fiber Laser Marking Machine For Metal
High Accuracy 1064nm 10W Portable Fiber Laser Marking Machine For Metal
High Accuracy 1064nm 10W Portable Fiber Laser Marking Machine For Metal
High Accuracy 1064nm 10W Portable Fiber Laser Marking Machine For Metal
High Accuracy 1064nm 10W Portable Fiber Laser Marking Machine For Metal
High Accuracy 1064nm 10W Portable Fiber Laser Marking Machine For Metal
Specifications
Brand Name :
Herolaser
Model Number :
ML-ML-TY-02-HW20
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
600 sets/month
Delivery Time :
12 days
Packaging Details :
1110mm x 860mm x 1520mm in wood box
Laser power :
10 watt 20 watt 30 watt 50watt
Laser wavelength :
10.64 um
Working accuracy :
0.01 mm
Laser type :
fiber laser
Product name :
Fiber laser marking machine for metal
Marking depth :
0~0.5 mm
Warranty :
24 months
Applicable material :
Metal Plastic
Description

Mopa Fiber Laser Color Laser Marking Machine for Colorful Marking on Stainless

Product introdution:

Herolaser 20W Laser Marker delivers excellent laser beam quality with the latest technology. Our pulsed fiber optic systems provide superior performance and reliability.Our 20W Laser Marker provides an industrial solution for product identification and traceability, allowing manufacturers to mark serial numbers, bar codes, 2D data matrices and graphics on the widest range of materials, including metals, plastics and ceramics.

Characteristics of fiber laser marking machine:

  • High-tech, can be made on metal and non-metal.
  • Clean the system
  • More than 100,000 hours of life.
  • Good accuracy and speed.
  • The price of this kind of fiber laser marking machine is economical and reasonable.

Technical details:

Description Parameter
Marking area 110*110mm(option:150*150mm,200*200mm,300*300mm)
Laser power 10W
Marking speed ≤8000mm/S
Max.Marking Depth ≤0.4mm
Laser Wavelength 1064nm
Marking lines 1-10 marking lines(in the marking area)
Minimum line width 0.01mm
Minimum character 0.15mm
Resolution ratio 0.01mm
Repeatability accuracy ±0.002mm
Operating temperature 5-40℃
Unit Power ≤500W
Graphic format supported BMP,JGP,PNG,DXF, etc.
Supply Voltage 110V/50HZ/10A(option:220V)

Application:

This fiber laser marking machine is economical and of the best quality and is mainly used for marking metal and non-metallic materials, it can be marked buttons on the phone, plastic translucent buttons, electronic components, integrated circuits, electrical appliances, communications products, sanitary ware, tools, accessories, cutting tools, medical equipment industry, jewelry, glass and watches, auto parts, luggage buckles, cooking utensils, stainless steel products and other industries.

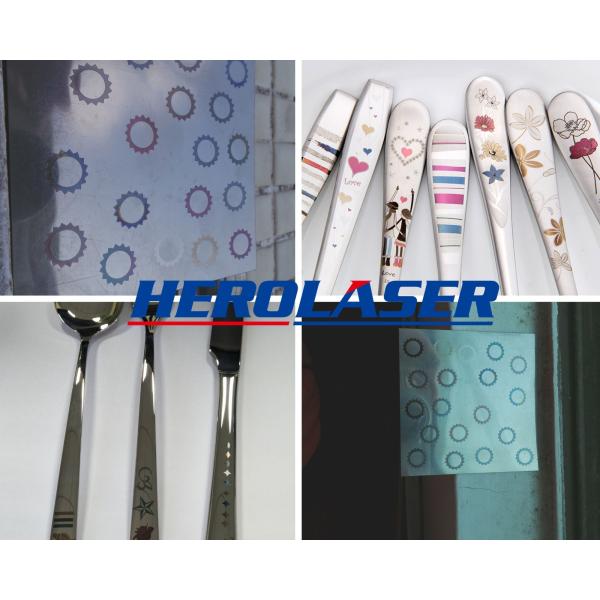

Marking samples for reference:
High Accuracy 1064nm 10W Portable Fiber Laser Marking Machine For Metal
FAQ
1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hous quick response and free consulting.
  • Free sample marking or testing is avaiable
  • Progressing solution design to all clients, including distributors and end users.

High Accuracy 1064nm 10W Portable Fiber Laser Marking Machine For Metal
