3D Fiber Laser Marking Machine
3D Fiber Laser Marking Machine
3D Fiber Laser Marking Machine
3D Fiber Laser Marking Machine
3D Fiber Laser Marking Machine
3D Fiber Laser Marking Machine
Specifications
Brand Name :
Herolaser
Model Number :
ML-MF-TY-02-HW10
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
600 sets/month
Delivery Time :
12 days
Packaging Details :
1110mm x 860mm x 1520mm in wood box
Power supply :
AC220V 50/60Hz
Supported graphic format :
PCX, BMP, PLT, DXF
Dimension :
600*935*1600 mm
Net weight :
120 kg
Working temperature :
10-30 ℃
Working humidity :
5-85%
Power consumption :
1KW
Applicable material :
Metal Plastic,Aluminum,Cooper,iron,Stainless Steel
Description

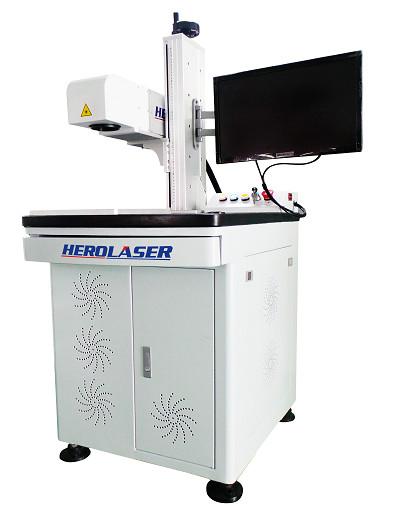

3D Dynamic Focusing Fiber Laser Marking Machine 3D Curve Surface for Metals

Product introdution:

Three-dimensional surface of three-dimensional laser marking: have three-dimensional surface of three-dimensional laser marking function, can in 60 mm height range is focused on the fine spot, make laser marking effect is consistent;Competent for large-format laser marking: 60 mm height within the scope of "capricious" marking, and the light spot fine, consistent distance laser marking effect;·. The triaxial dynamic focusing technology: digital triaxial dynamic focusing technology, arbitrary zoom, real-time control, with high performance fiber laser, and thick marble table, make the whole machine performance is stable, marking speed and marking effect is good.

Characteristics and advantages:

  1. With stereo 3 d surfaces marking function, guarantee within 0 ~ 60 mm highly focused spot fine, marking effect is consistent;
  2. With a large-format marking function, marking width 400 mmx400mm, breaking the traditional optical fiber marking machine marking wide limits;
  3. The first digital triaxial dynamic focusing technology, marking speed, high real-time performance, zoom control focus light evenly;
  4. A powerful software that can be introduced into the mainstream of 3 d design software output graphics, and can perform a simple 3 d graphics editor, have 2 d graphics turned 3 d function, the operation is simple and convenient.
  5. Adopts the modular design concept, can be and mainstream of fiber laser, product adaptability is strong;
  6. Use the marble work platform, good shock resistance and stress resistance, good flatness, high stability;

Technical details:

Model ML-MF-TY-02-HW10
Laser wavelength (μm) 1.6
Beam quality (㎡) ＜2
Laser power (w) 10/20/30/50 (optional)
Power supply AC220±10%
Cooling method Built-in air forced
Marking range (mm*mm) Max 400*400
Service Life >100,000 Hours
Min linewidth 0.02
Min character 0.15
Marking speed (m/s) 0~7000
Supported graphic format PCX, BMP, PLT, DXF
Frequency (Hz) 50/60
Dimension (mm*mm*mm) 600*935*1600
Net weight (kg) 120
Working temperature (℃) 10-30
Working humidity 5-85% (no condensation)
Power consumption (w) 1000

Application materials:

Stainless steel, aluminum, magnesium alloy, zinc alloy, copper, nickel plating, galvanized, alumina, plastics, cast iron, etc.

Application industry:

3 D laser marking machine is applied to handicrafts, watches and clocks jewelry, electronics, medical equipment, traffic equipment, lighting advertising lighting, food packaging materials, tobacco, leather, auto parts, tool accessories, plastic etc metal non-metal laser marking 3 D surfaces.

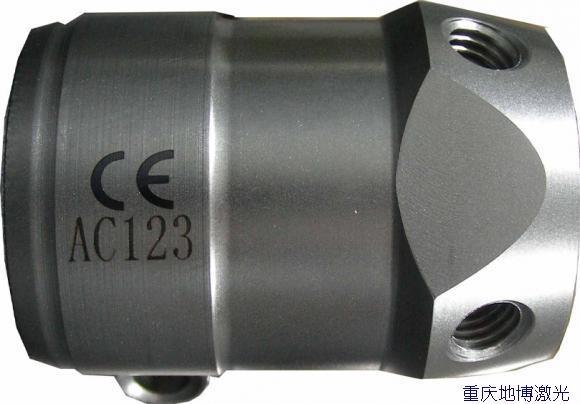

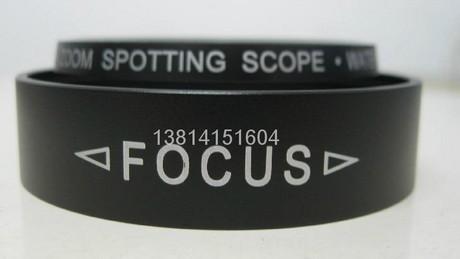

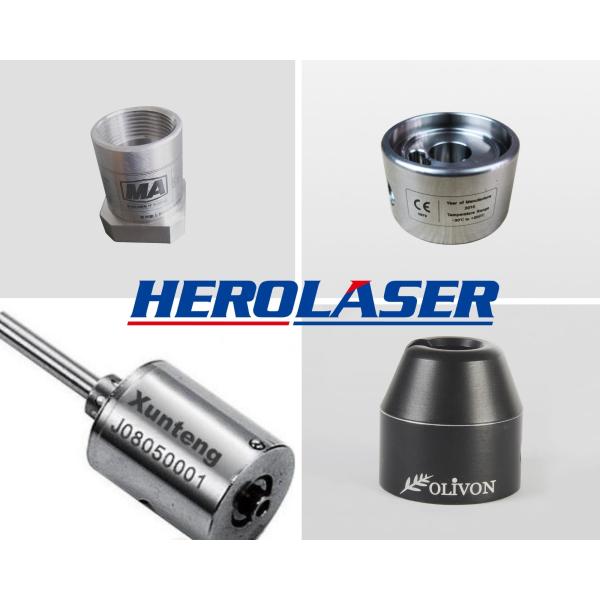

Marking samples for reference:
3D Fiber Laser Marking Machine
FAQ
1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample marking or testing is available
  • Progressing solution design to all clients, including distributors and end users.
