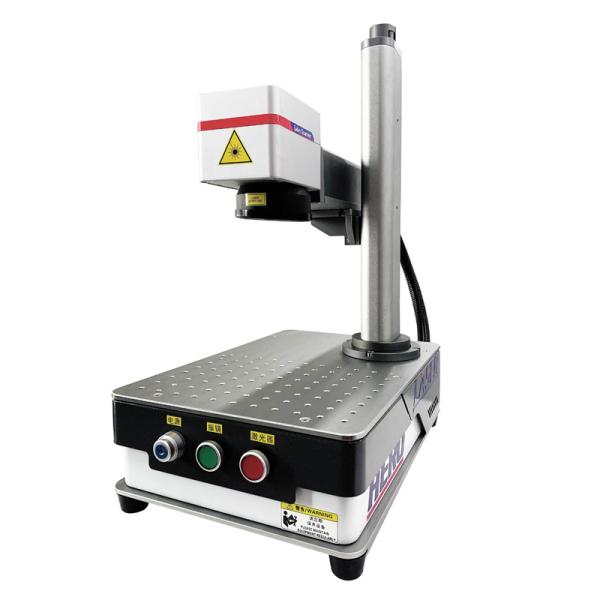

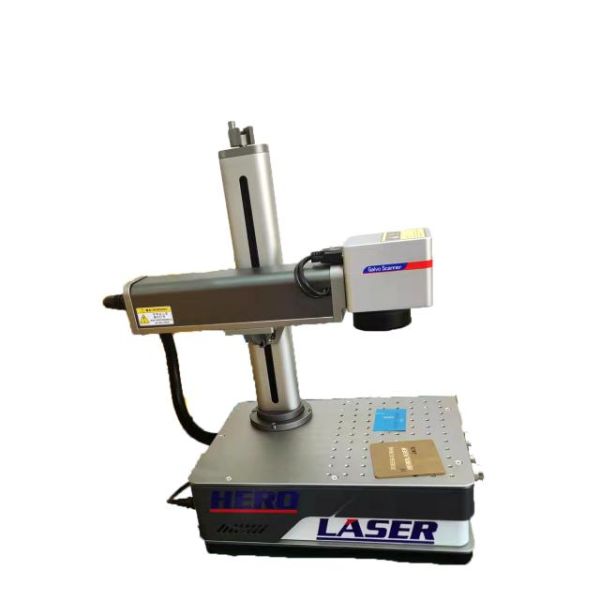

100w IPG Desktop Optical Fiber Laser Engraving Machine For Metal Spare Parts Label
100w IPG Desktop Optical Fiber Laser Engraving Machine For Metal Spare Parts Label
100w IPG Desktop Optical Fiber Laser Engraving Machine For Metal Spare Parts Label
100w IPG Desktop Optical Fiber Laser Engraving Machine For Metal Spare Parts Label
100w IPG Desktop Optical Fiber Laser Engraving Machine For Metal Spare Parts Label
100w IPG Desktop Optical Fiber Laser Engraving Machine For Metal Spare Parts Label
100w IPG Desktop Optical Fiber Laser Engraving Machine For Metal Spare Parts Label
100w IPG Desktop Optical Fiber Laser Engraving Machine For Metal Spare Parts Label
100w IPG Desktop Optical Fiber Laser Engraving Machine For Metal Spare Parts Label
100w IPG Desktop Optical Fiber Laser Engraving Machine For Metal Spare Parts Label
Specifications
Brand Name :
Herolaser
Model Number :
ML-MF-TY-02-HW30
Certification :
CE, FDA
Place of Origin :
China, Shenzhen
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
600 sets/month
Delivery Time :
15-20 days
Packaging Details :
wooden case
Laser wavelength :
1064nm
Minimum character :
0.25mm
Beam diameter :
8MM
Marking range :
110x110mm(Optional with others)
Cooling mode :
Air cooling
Power supply :
AC220V/50Hz
Description

Product Description
20w 30w 50w 100w IPG Desktop Optical Fiber Laser Engraving Printing Marking Engraver Machine for Metal Spare Parts Label

Overview:

Fiber laser marking machine uses laser beam to make permanent marks on different material surfaces. The effect of marking is to expose the deep material through either the evaporation of the surface material, or to engrave the trace through the chemical and physical changes of the surface material caused by light energy, or to burn off part of the material through light energy, and to show the required etched patterns, words, bar codes and other graphics. The so-called fiber laser marking machine refers to the type of marking machine that uses fiber laser, Fiber laser has the advantages of small volume (no water cooling device, but air cooling), good optical quality (basic mode) and maintenance free.

100w IPG Desktop Optical Fiber Laser Engraving Machine For Metal Spare Parts Label100w IPG Desktop Optical Fiber Laser Engraving Machine For Metal Spare Parts Label

Features:


* Stable laser output ;
* Speed of marking is 2-3 times of that of traditional YAG;
* No operating system restrictions, easy to operate, light path closed, stable and reliable, maintenance free;
* Super long life span, more than 100000 hours;
* Enviormental friendly;
* It can mark all metals and carve most non-metallic materials.


Application areas:
Any metal, engineering plastics, electroplating materials, coating materials, spraying materials, plastic rubber, epoxy resin, ceramics, etc

Main technical parameters:

Model ML-MC-A01
Laser wavelength 1064nm
Frequency range 10-400kHz
Minimum focus spot diameter (linewidth) 0.015mm
Marking speed ≤7000mm
Repeatability ±0.002mm
Minimum character 0.25mm
Beam diameter 8MM
Marking range 110x110mm(Optional with others)
Cooling mode Air cooling
Power supply AC220V/50Hz

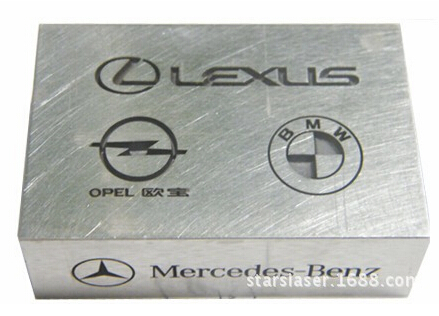

Sample pictures are as follow:

100w IPG Desktop Optical Fiber Laser Engraving Machine For Metal Spare Parts Label

100w IPG Desktop Optical Fiber Laser Engraving Machine For Metal Spare Parts Label
