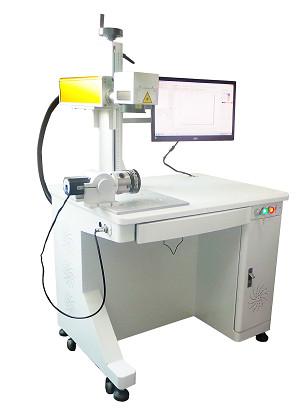

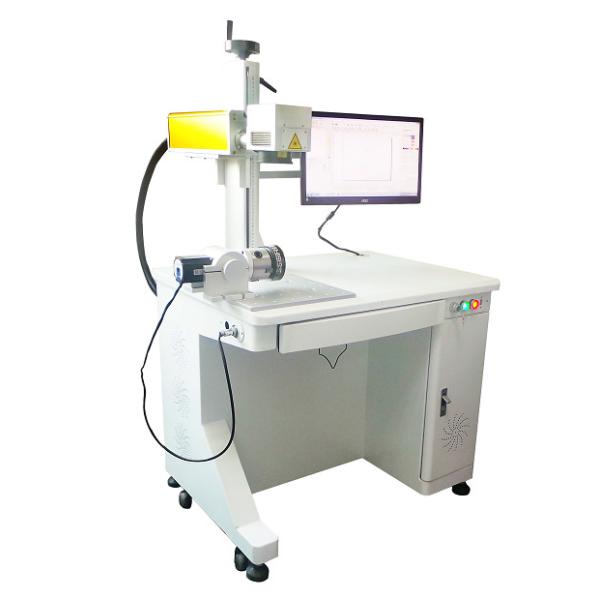

MOPA Fiber Laser Marking Machine
MOPA Fiber Laser Marking Machine
Specifications
Brand Name :
Herolaser
Model Number :
ML-ML-TY-02-HW50
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
600 sets/month
Delivery Time :
12 days
Packaging Details :
1110mm x 860mm x 1520mm in wood box
Laser power :
20 watt 30 watt 50watt
Laser wavelength :
10.64 um
Working accuracy :
0.01 mm
Laser type :
fiber laser
Product name :
Fiber laser marking machine for metal
Marking depth :
0~0.5 mm
Laser source :
JPT
After-sales service provided :
Professional technical team 24 hours online
Description

Industrial MOPA Fiber Laser Marking Machine Color Marking and Engraving on Metal

Product introdution:

MOPA Fiber Laser Marking Machine is a standalone, turnkey laser marking, engraving and cutting system.
The state-of-the-art 20W / 50W MOPA fiber laser produces high quality laser beams for marking and engraving a variety of materials. 50W fiber lasers have been shown to significantly increase the speed of black marking on aluminum and stainless steel anodes. The color marking of stainless steel and titanium materials, the marking quality of sensitive and key non-metallic materials is good, and the pulse width and frequency are varied.

Characteristics of fiber laser marking machine:

  • - The laser generator life of MOPA fiber laser marking machine can reach about 100,000 hours
  • - Low operating cost, almost maintenance-free laser system, reducing resource consumption
  • - Support CAD file (DXF), PLT/BMP/JPG/AI format
  • - MoPA fiber laser marking machine can mark 1D, 2D bar code, UDI (GS1 code), serial number, batch number, LOGO, company information
  • - Laser marking software can be customized to meet the unique needs of customers
  • -- Laser marking software supports serial port and TCP/IP communication between client and server

Technical details:

Description Parameter
Marking area 110*110mm(option:150*150mm,200*200mm,300*300mm)
Laser power 10W
Marking speed ≤8000mm/S
Max.Marking Depth ≤0.4mm
Laser Wavelength 1064nm
Marking lines 1-10 marking lines(in the marking area)
Minimum line width 0.01mm
Minimum character 0.15mm
Resolution ratio 0.01mm
Repeatability accuracy ±0.002mm
Operating temperature 5-40℃
Unit Power ≤500W
Graphic format supported BMP,JGP,PNG,DXF, etc.
Supply Voltage 220V/50HZ/10A

Application Industries:
  • - Industrial machinery laser marking, watches laser marking
  • - Electronic and communication products laser marking
  • - Aerospace devices laser marking, various automotive parts laser marking
  • - Home appliances laser marking, hardware tools laser marking, molds laser marking and engraving
  • - Wire and cable laser marking, food packaging laser marking, jewelry laser marking and engraving
  • - Laser fly marking of tobacco and military industry design

Application materials:
  • - Iron, Copper, Ceramic, Magnesium, Aluminum
  • - Gold, Silver, Titanium, Platinum, Stainless Steel
  • - Titanium alloy, Aluminum alloy, any high hardness alloys
  • - Oxide, Electroplating, coating, ABS, Epoxy Resin, Ink, Engineering, Plastic, etc.
Marking samples for reference:
MOPA Fiber Laser Marking Machine
FAQ
1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample marking or testing is available
  • Progressing solution design to all clients, including distributors and end users.

MOPA Fiber Laser Marking Machine
