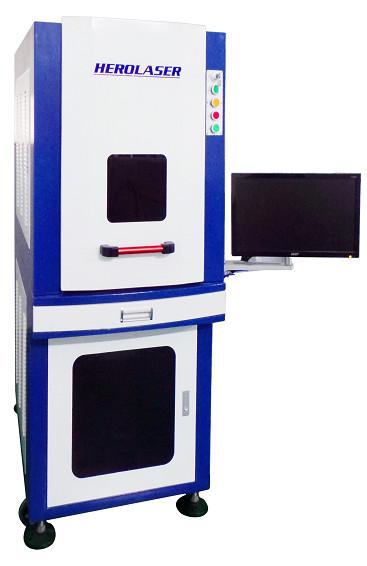

Industrial High Precision Enclosed 1064nm 10W Laser Engraver for steel
Industrial High Precision Enclosed 1064nm 10W Laser Engraver for steel
Specifications
Brand Name :
Herolaser
Model Number :
ML-MF-TY-FB-IW10
Certification :
CE, FDA, ISO
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
200 sets/month
Delivery Time :
12 days
Packaging Details :
1110mm x 860mm x 1520mm in wood box
Average output power :
10W
Central wavelength :
1064±4 nm
Fiber length :
1.9m
Control software :
EZCAD,JCZ(Ezcad)
Graphic format supported :
DXF,AI,PLT,DST,BMP
Laser head :
SCANZG,Scanning head,Galvo head
Laser source :
IPG,JPT, MAX & SPI
Cooling :
Forced air
Description

Enclosed Fiber Laser Marking Machine for Metal Marking Fine Processing

Model introduction:

Fiber lasers are a huge leap forward in the treatment of all metal and coated soft materials for applications. Compared to traditional lasers, our fiber lasers are easily integrated into industrial processes because:

  • State-of-the-art, air-cooled, ytterbium Q-switched fiber lasers for marking on almost any material;
  • Continuous wave or Q-switched fiber lasers with high repetition rate;
  • The beam quality was excellent (M2 < 1.5).
  • Extreme reliability, estimated at over 30,000 hours of maintenance-free operation;
  • A very high 100,000 hours of MTBF;
  • Optimized direct part marking (DPM) applications, including UDI/UID barcodes and 3D deep engraving;
  • Red diode pointer for easy application setup;
  • Manufacturer's one-year warranty on laser parts

Features:

1 Fast marking speed
2 Unique, foldable design
3 High speed scanner head. (Imported brand optional)
4 fiber laser with 100,000 hours of working life
5 Simple and convenient operation. Easy to learn and handle.
6 Fiber laser marking machine can make deep marking up to 1.0mm on stainless steel

Technical specifications:

Type Unit ML-MF-TY-FB-IW10
Central wavelength nm 1064±4
Average output power W 10
Peak power kW 4.2
Energy per pulse mJ 0.5~0.6
Beam quality ㎡ ＜1.5
Frenquency tunable range KHz 20~60
Power tuable range % 5~100
Fiber length m 9
Cooling Forced air
Operate temperature ℃ 0~35
Operating humidity 10~95
Power stability % ＜5
Polarization Random
Beam diameter mm 6~8

Common applications:

  • Aluminum (Anodized/polished/cast)
  • Stainless steel and mild steel
  • Titanium and nickel
  • Copper and brass
  • Carbide
  • Polycarbonate and polypropylene
  • Painted metal alloys
  • Chrome and cast Iron

Marking samples for refernce:

Industrial High Precision Enclosed 1064nm 10W Laser Engraver for steel

FAQ
1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hous quick response and free consulting.
  • Free sample marking or testing is avaiable
  • Progressing solution design to all clients, including distributors and end users.

Industrial High Precision Enclosed 1064nm 10W Laser Engraver for steel
