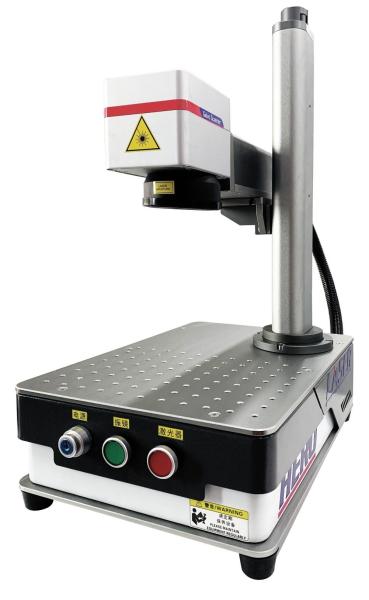

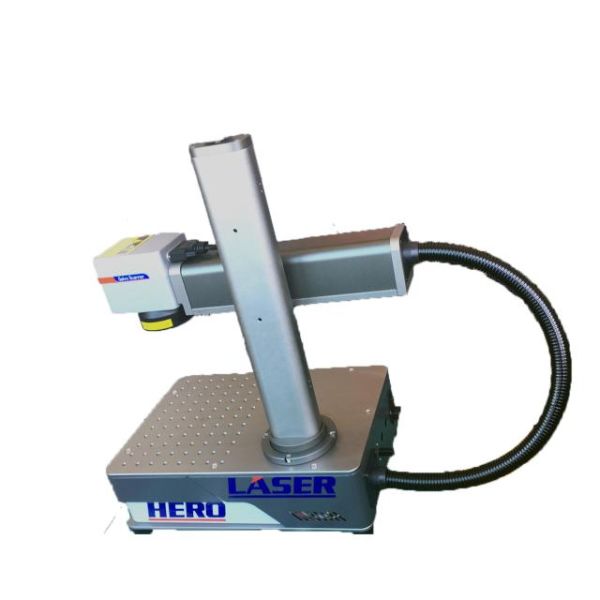

20W 30W 50W 1064nm Focus Lens fiber Engraving Machine With Raycus Laser
20W 30W 50W 1064nm Focus Lens fiber Engraving Machine With Raycus Laser
20W 30W 50W 1064nm Focus Lens fiber Engraving Machine With Raycus Laser
20W 30W 50W 1064nm Focus Lens fiber Engraving Machine With Raycus Laser
20W 30W 50W 1064nm Focus Lens fiber Engraving Machine With Raycus Laser
20W 30W 50W 1064nm Focus Lens fiber Engraving Machine With Raycus Laser
Specifications
Brand Name :
Herolaser
Model Number :
ML-MF-TY-02-HW50
Certification :
CE, FDA
Place of Origin :
China, Shenzhen
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
600 sets/month
Delivery Time :
15-20 days
Packaging Details :
wooden case
Laser wavelength :
1064nm
Frequency range :
10-400kHz
Minimum focus spot diameter (linewidth) :
0.015mm
Marking speed :
≤7000mm
Features :
High beam quality
Application :
Any metal, engineering plastics, electroplating materials
Description

Product Description


20W 30W 50W 1064nm Focus Lens for Engraving Machine with Raycus Laser

Overview:

The fiber laser marking machine adopts an integrated overall structure, which has no optical pollution and small power coupling loss. It has unique advantages in the application of laser marking.

20W 30W 50W 1064nm Focus Lens fiber Engraving Machine With Raycus Laser20W 30W 50W 1064nm Focus Lens fiber Engraving Machine With Raycus Laser

Features:


1. High beam quality: using German IPG and British SPI advanced fiber lasers, the beam quality is better than the traditional solid-state laser marking machine, the focusing spot diameter is less than 20um, and the divergence angle is 1/4 of the semiconductor pump laser, which is suitable for precision and fine marking;

2. Low cost: the electro-optical conversion efficiency is up to 30%, and the power consumption of the whole machine is less than 500, which is 1/10 of that of the lamp pumped solid-state laser marking machine, greatly saving energy consumption;

3. Long service life of laser: fiber laser marking machine uses laser diode as pump source, and its average working time can reach 100000 hours

4. Maintenance free operation: the laser does not need any maintenance, nor does it need to adjust or clean the lens


Application areas:
Any metal, engineering plastics, electroplating materials, coating materials, spraying materials, plastic rubber, epoxy resin, ceramics, etc

Main technical parameters:

Model ML-MF-TY-02-HW50
Laser wavelength 1064nm
Frequency range 10-400kHz
Minimum focus spot diameter (linewidth) 0.015mm
Marking speed ≤7000mm
Repeatability ±0.002mm
Minimum character 0.25mm
Beam diameter 8MM
Marking range 110x110mm(Optional with others)
Cooling mode Air cooling
Power supply AC220V/50Hz

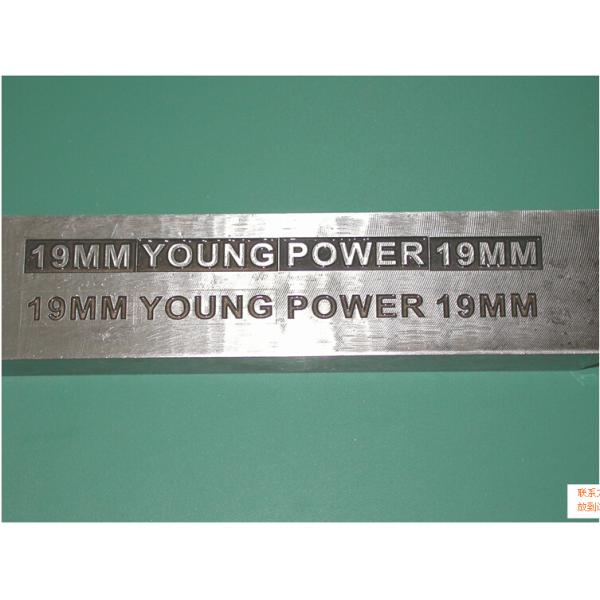

Sample pictures are as follow:

20W 30W 50W 1064nm Focus Lens fiber Engraving Machine With Raycus Laser

20W 30W 50W 1064nm Focus Lens fiber Engraving Machine With Raycus Laser
