Swing Aluminium Window And Door High Precision Aluminium Swing Window
Swing Aluminium Window And Door High Precision Aluminium Swing Window
Specifications
Brand Name :
Dimax
Model Number :
80 series Swing Door
Certification :
AS
Place of Origin :
China
MOQ :
1
Price :
1000-1200rmb
Payment Terms :
L/C,T/T
Supply Ability :
6000 square meters/month
Delivery Time :
45
Packaging Details :
Dimax standard
Opening Direction :
Inward/Outward
Sealing Structure :
Triple-Layer EPDM Pressure-Balanced Seal
Frame Material :
Thermal Break Aluminum Alloy 6063-T5
Applicable Scenarios :
Commercial Main Entrances/Residential Balconies/Office Partitions
Description

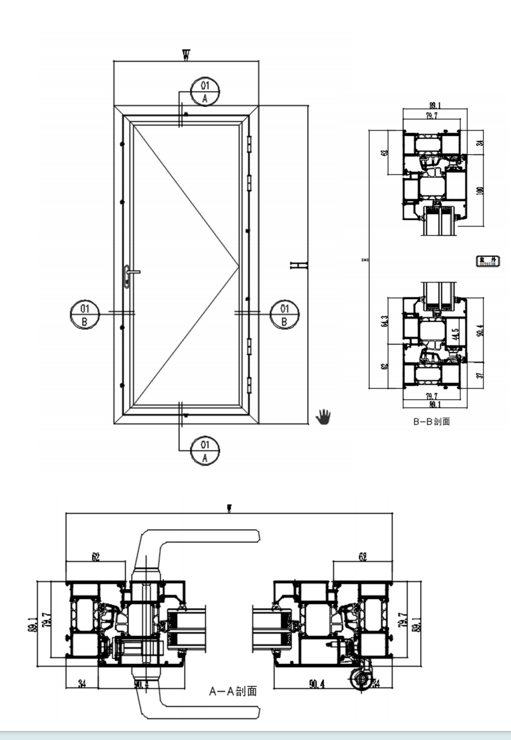

80 Series Swing Door: Precision-Hinged Design for Seamless Indoor-Outdoor Transition

INFORMATION

Brand Dimax
Material 6063-T5
Thickness 2.0mm
Bearing 150kg
Blade width 600-1300mm
Blade height 1500-3500mm
Certification NFRC, CSA, CE,
Glass Single-pane glass, laminated glass, double-layer tempered glass, tempered laminated glass, triple-layer tempered glass
Powder-coat Interpon, Dulux (warranty treatment 10/20 years)
Hardware KIN LONG,BONWAY,ROTO and so on
Configuration A. AA. A/F or customized design
Heat Insulation UW1.4W/㎡K
soundlnsulafion Rw up to 37dB
Ufimate Wind Pressure +5040pa
Water Resistance +1050Pa

The 80 Series Swing Door features reinforced heavy-duty hinge construction and a multi-layer sealing system, delivering smooth, silent operation and comprehensive weather protection. Its expansive glass design and narrow-frame structure maximize natural light intake, while energy efficiency is enhanced through thermal-break profiles and low-emissivity glazing. Configurable for inward or outward opening, the door can be equipped with impact-resistant base frames and multi-point locking systems to suit high-traffic commercial entrances, residential balconies, and premium office spaces. Surface finishes utilize weather-resistant coating technology, combined with customizable dimensions and opening modes, achieving an optimal balance of functional durability and contemporary aesthetics.
