Single Column Computer Control Electronic Tensile Strength test Machine
Single Column Computer Control Electronic Tensile Strength test Machine
Single Column Computer Control Electronic Tensile Strength test Machine
Single Column Computer Control Electronic Tensile Strength test Machine
Single Column Computer Control Electronic Tensile Strength test Machine
Single Column Computer Control Electronic Tensile Strength test Machine
Single Column Computer Control Electronic Tensile Strength test Machine
Single Column Computer Control Electronic Tensile Strength test Machine
Specifications
Safety features :
E-Stop, Over-load protection, Upper/lower limit switches, Load sensor auto-retreat
Frame capacity :
2000kg
Software :
TM 2101
Test speed :
0.1~500mm/min
Brand Name :
haida
Certification :
CE,ISO
Mechanical component :
High-precision ball screw rod
Vertical test space :
1200mm including fixture
Force reading :
kgf, Ibf, N, KN, T etc
Drive system :
AC variable speed drive system
Model Number :
HD-B609
Horizontal test space :
≤400mm
Price :
$1,499
Load cell brand :
Germany brand load cell
Motor type :
Pana-sonic servo motor
Place of Origin :
China
MOQ :
1
Control system :
PC with windo-ws 7 system
Load accuracy :
0.5% F.S
Curves display :
Load-elongation, Elongation-time, Time-elongation, Stress-strain
Data display :
Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2)
Description

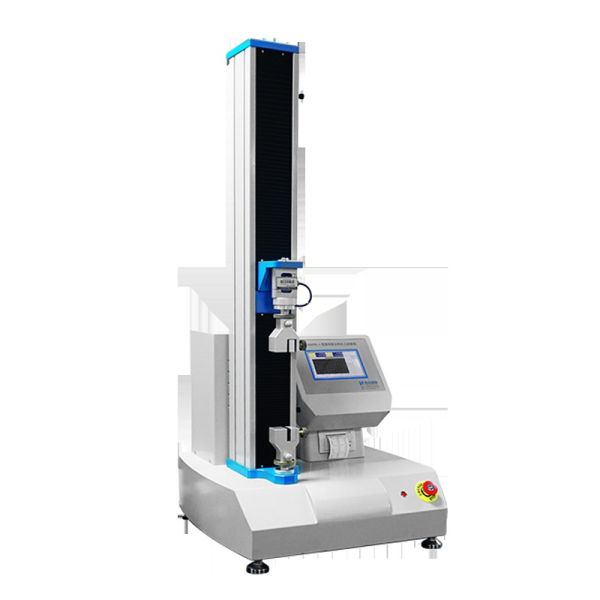

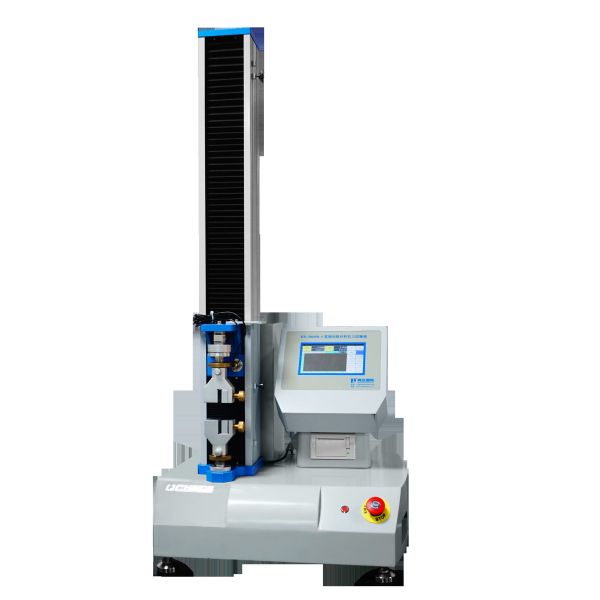

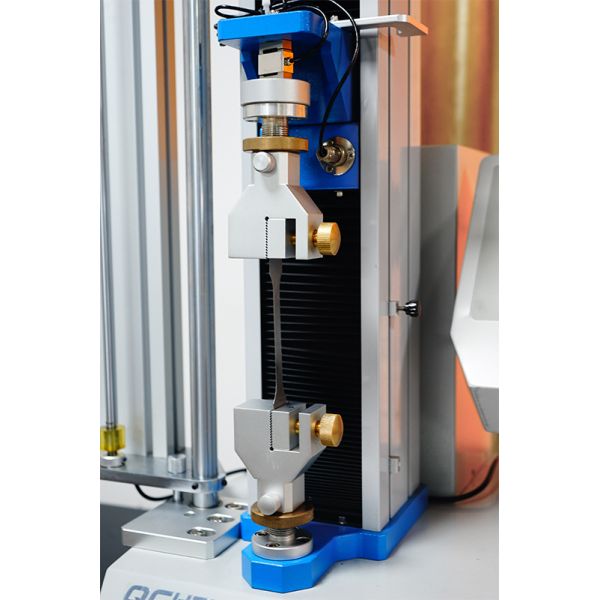

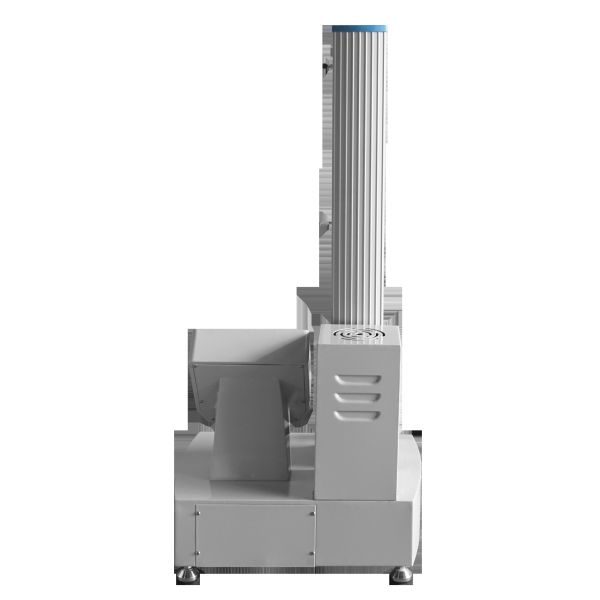

Single Column Computer Control Electronic Tensile Strength Test Machine
The single column computer control electronic tensile strength test machine is a precision mechanical testing instrument designed for static load applications including tension, compression, bending, shear, tearing, and peeling tests of various materials.
Single Column Computer Control Electronic Tensile Strength test Machine
This universal tensile test machine is engineered for comprehensive physical and mechanical performance testing of plastic sheets, pipes, profiled materials, plastic films, rubber, wire and cable, steel, glass fiber, and other materials. It serves as essential testing equipment for material research, educational institutions, quality control laboratories, and manufacturing facilities. The machine features specialized fixtures tailored to different materials, ensuring accurate test results and reliable performance.
Standard Technical Specifications
Feature Specification
Frame Capacity 2000kg
Load Cell German brand load cell for high accuracy, 2000kg (500kg, 1000kg optional)
Load Accuracy 0.5% F.S
Control System PC with Windows- 7 system
Motor System Panaso-nic servo motor with AC variable speed drive system, high-precision mechanical ball screw rod
Force Reading Units kgf, lbf, N, kN, T, etc.
Vertical Test Space 1200mm including fixture
Horizontal Test Space ≤400mm
Test Speed Range 0.1~500mm/min (adjustable)
Software TM 2101
Curves Display Load-elongation, Elongation-time, Time-elongation, Stress-strain
Data Display Maximum force, speed, sample information, strength (Kpa, Mpa, N/mm, N/mm²), etc.
Safety Features Emergency stop, Over-load protection, Upper and lower limit switches, Load sensor with automatic retreat
Single Column Computer Control Electronic Tensile Strength test Machine Single Column Computer Control Electronic Tensile Strength test Machine
Company Information
HAIDA INTERNATIONAL is a professional manufacturer with over 15 years of experience in producing various testing equipment. Our products are widely utilized across multiple industries including paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environmental testing, toys, baby products, hardware, electronic products, plastic products, and rubber products. HAIDA testing equipment serves scientific research institutions, quality inspection organizations, and academic fields worldwide.
Single Column Computer Control Electronic Tensile Strength test Machine
Packaging & Shipping
All test machines are carefully protected with air bubble film before being securely packaged in reinforced wooden cases to ensure safe transportation and delivery.
