Specifications
Model Number :
HD-B616S
Brand Name :
Haida
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$8,999
Power supply :
380V, 50Hz
Measure range :
2%-100%F.S
Load accuracy :
1% F.S
Test speed :
50mm/min
Flat sample thickness :
0-15 mm
Flat sample width :
70mm
Operation control :
Hydraulic
Display :
PC
Frame capacity :
30T
Available tensile stroke :
550mm
Available compression stroke :
450mm
Round sample diameter :
Φ10-φ32mm
Compression diameter :
Φ120mm
Load cell brand :
Oil pressure sensor, China brand 30T
Safety features :
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat
Description
Electronic High Temperature Tensile Strength Tester
Universal Material 500kN Tensile Testing Machine
Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine

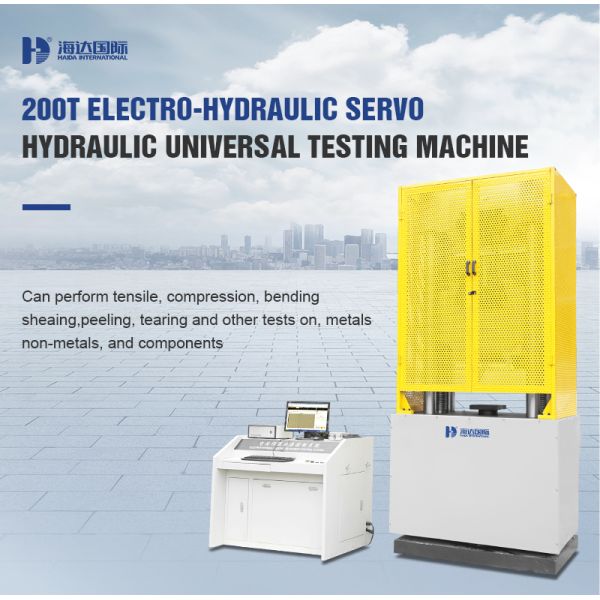

The Universal Tensile Testing Machine is designed for tensile, compression, bending, and shear testing of metal materials and components. It also supports testing of non-metallic materials including plastics, concrete, and cement. The system features a lower cylinder main engine, original brand microcomputer, and powerful Chinese window software for comprehensive data analysis and processing.
Equipped with an electro-hydraulic proportional microcomputer control system and microcomputer automatic control display, the measurement system consists of high-precision load sensors and imported components. Combined with computer and software systems, it offers automatic calibration of load and deformation, automatic range switching, automatic storage of test conditions and results, and automatic calculation of parameters including Fm, ReH, ReL, RP0.2, Rm, and elastic modulus E.
The software provides test curve traversal, partial enlargement, and superimposed comparison functions, with capability to print complete test reports and test curves.
Applications
  • Tested samples: wood, steel sheet, steel rod, wire, screw, and other metal materials
  • Different tests with specialized grips: tensile, bend, compression, and shear testing
  • Software generates comprehensive reports with results for maximum force, elongation, tensile strength, compression strength, bend strength, and more
Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine
Standard Features & Specifications
Frame Capacity 30T
Measure Range 2%-100% F.S
Load Cell Brand Oil pressure sensor, China brand 30T (5T, 10T, 20T optional)
Load Accuracy 1% F.S
Available Tensile Stroke 550mm
Available Compression Stroke 450mm
Test Speed 50mm/min
Round Sample Diameter Φ10-φ32mm
Flat Sample Thickness 0-15mm
Flat Sample Width 70mm
Compression Diameter Φ120mm
Operation Control Hydraulic
Display PC
Curves Display Load-elongation, Elongation-time, Time-elongation, Stress-strain
Data Display Max. force, speed, sample information, strength, etc.
Safety Features E-Stop, Over-load protection, Upper and lower limit switches, Load sensor with automatic retreat
Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine
Customized Fixtures
Haida provides comprehensive fixture customization services to meet all customer testing requirements and applications.
Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine
Tensile Test Machine
Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine
Company Information
HAIDA INTERNATIONAL is a professional manufacturer of various testing equipment with over 20 years of industry experience. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products, and other industries. Our equipment is applicable to all scientific research units, quality inspection institutions, and academic fields.
