Specifications
Vertical test space :
1000mm including fixture
MOQ :
1
Load accuracy :
0.5% F.S
Place of Origin :
Guangdong, China
Brand Name :
Haida
Price :
$5,000
Software :
TM 2101
Frame capacity :
100kg-5T
Force reading :
kgf, Ibf, N, KN, T etc
Power :
Electronic
Certification :
CE,ISO
Load cell brand :
Germany brand load cell
Motor :
Pana-sonic servo motor w/AC variable speed drive system
Safety features :
E-Stop Over-load protection, Upper and lower limit switches, Load sensor with automatic retreat
Test speed :
0.1~300mm/min
Model Number :
HD-B615-S
Control system :
PC with window-s 7 system
Mechanical screw :
high-precision mechanical ball screw rod
Horizontal test space :
≤420mm
Curves display :
Load-elongation, Elongation-time, Time-elongation, Stress-strain
Data display :
Max. force, speed, sample information, strength (Kpa, Mpa, N/mm, N/mm2)
Description

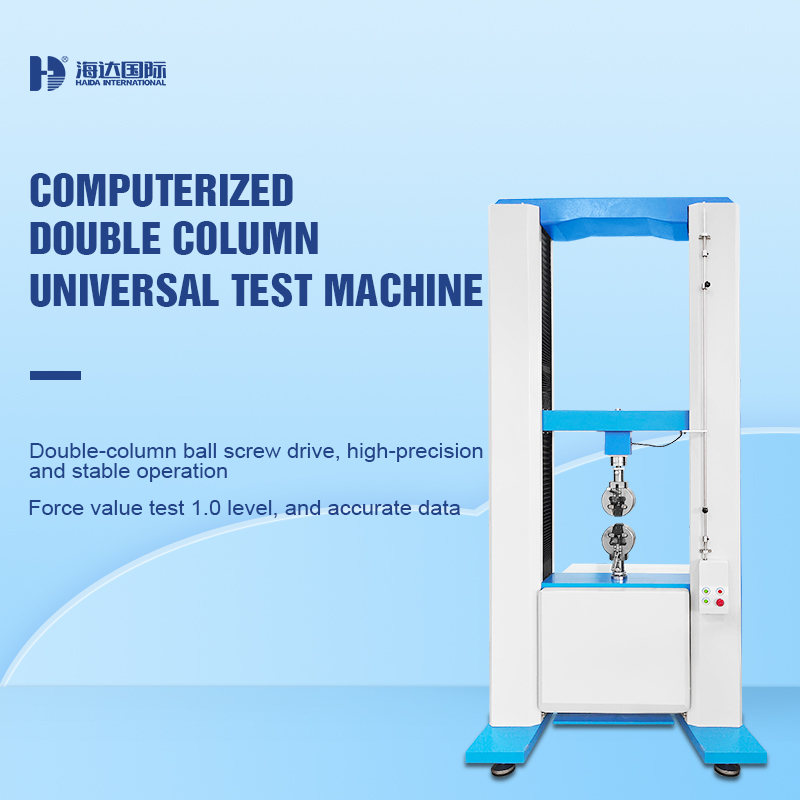

Electronic Computer Universal Tensile Testing Machine - 1000KN Capacity
The Electronic Computerized Universal Testing Machine features an intelligent computer test system for comprehensive materials testing. Operators can monitor real-time data through the PC interface including curve processes, multi-sensor support, graphical interfaces, flexible data processing, and powerful system functionality.
Electronic Computer Universal Tensile Testing Machine Price Strength Test 1000KN Electronic Computer Universal Tensile Testing Machine Price Strength Test 1000KN
This universal test machine utilizes a motor-driven screw system to move fixtures. Samples are secured between upper and lower fixtures and pulled upward at specified speeds. The integrated load cell connected to the upper fixture detects force and converts it into voltage signals displayed on the screen, with force values automatically calculated and displayed.
Testing Capabilities
General Test Projects
  • Tensile stress and tensile strength
  • Tearing strength and breaking elongation
  • Fixed extension stress and constant stress elongation
  • Constant stress values and tearing strength
  • Arbitrary point force values and elongation measurements
  • Pulling force, adhesion, and peak value analysis
  • Pressure testing and shear stripping force testing
  • Bending tests and pulling force puncture testing
Specialized Test Items
  • Elasticity coefficient and Young's modulus definition
  • Ratio limit and elastic limit measurements
  • Elastic deformation and permanent deformation analysis
  • Yield point and yield strength determination
  • Spring K value calculations
Technical Specifications
Design Standards: ASTM, JIS, CE, ISO, EN, BS EN, SAE, FTM, and more
Specification Description
Frame Capacity 100kg-5T (custom options available)
Load Cell Brand German brand load cell for high accuracy 5000kg (1000kg, 2000kg optional)
Load Accuracy 0.5% F.S
Control System PC with Wind-ows 7 system
Motor System Panason-ic servo motor with AC variable speed drive system, high-precision mechanical ball screw rod
Force Reading Units kgf, lbf, N, KN, T, etc.
Vertical Test Space 1000mm including fixture
Horizontal Test Space ≤420mm
Test Speed Range 0.1~300mm/min (adjustable)
Software TM 2101
Curves Display Load-elongation, Elongation-time, Time-elongation, Stress-strain
Data Display Maximum force, speed, sample information, strength (Kpa, Mpa, N/mm, N/mm²), etc.
Safety Features E-Stop, Over-load protection, Upper and lower limit switches, Load sensor with automatic retreat
Electronic Computer Universal Tensile Testing Machine Price Strength Test 1000KN Electronic Computer Universal Tensile Testing Machine Price Strength Test 1000KN Electronic Computer Universal Tensile Testing Machine Price Strength Test 1000KN Electronic Computer Universal Tensile Testing Machine Price Strength Test 1000KN Electronic Computer Universal Tensile Testing Machine Price Strength Test 1000KN

Manufacturer Information
HAIDA INTERNATIONAL is a professional manufacturer of various testing equipment with over 20 years of industry experience. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products, and other industries. Our equipment is suitable for all scientific research units, quality inspection institutions, and academic fields.
