Specifications
Price :
$4,000-5,500
Safety Features :
E-Stop, Over-load protection, Limit switches
Load Cell :
Germany brand
Brand Name :
Haida
Horizontal Space :
≤400mm
Software :
TM 2101
MOQ :
1
Place of Origin :
Guangdong, China
Power :
1 phase, 220V /50HZ
Load Accuracy :
± 0.5%
Test Speed :
0.1-500mm/min
Frame Capacity :
2000kg
Model Number :
HD-B604-S
Vertical Space :
1200mm
Control System :
PC with Windows- 7
Force Reading :
kgf, Ibf, N, KN, T
Driver :
High precision ball screw
Load Resolution :
1/250,000
Motor :
Servo Motor
Screw Type :
High Precise Ball Screw
Description
Computerized Double Column Tensile Testing Machine
This advanced testing equipment is designed to evaluate the mechanical properties of various materials through static load, tensile, compression, bending, shearing, tearing, and peeling tests. Ideal for plastic plates, pipes, profiles, plastic films, rubber, wires, cables, steel, fiberglass, and other materials requiring comprehensive physical and mechanical performance analysis.
Strength Tester Meter Compression and Elongation Test Adhesion Rebar Push Pull Tensile Universal Testing Measuring Machine Strength Tester Meter Compression and Elongation Test Adhesion Rebar Push Pull Tensile Universal Testing Measuring Machine
Technical Specifications
Frame capacity 2000kg
Load cell brand Germany brand load cell for high accuracy (500kg, 1000kg optional)
Load accuracy 0.5% F.S
Control system PC with Windo-ws 7 system
Motor Panason-ic servo motor with AC variable speed drive system, high-precision mechanical ball screw rod
Force reading kgf, lbf, N, KN, T etc
Vertical test space 1200mm including fixture
Horizontal test space ≤400mm
Test speed 0.1~500mm/min (adjustable)
Software TM 2101
Software Capabilities
Curves Display
Load-elongation, Elongation-time, Time-elongation, Stress-strain
Data Display
Maximum force, speed, sample information, strength (Kpa, Mpa, N/mm, N/mm²) and more
Reporting Features
Software generates Word/Excel reports with results for maximum force, elongation, tensile strength, peel strength, tear strength, compression strength, and other critical metrics.
Safety Features
  • Emergency Stop (E-Stop)
  • Over-load protection
  • Upper and lower limit switches
  • Load sensor with automatic retreat
Applications
  • Tested materials: laminated materials, wood, leather, rubber & plastic, metal materials, etc.
  • Various tests with specialized grips: tensile, peel, tear, heat seal, adhesive, bend, and open force
  • Deformation under defined load: Measure deformation of tested samples under specific load conditions
  • Load under defined deformation: Determine load requirements for specific deformation parameters
Customized Fixtures
Haida provides comprehensive fixture customization services to meet all customer testing requirements and specific application needs.
Strength Tester Meter Compression and Elongation Test Adhesion Rebar Push Pull Tensile Universal Testing Measuring Machine

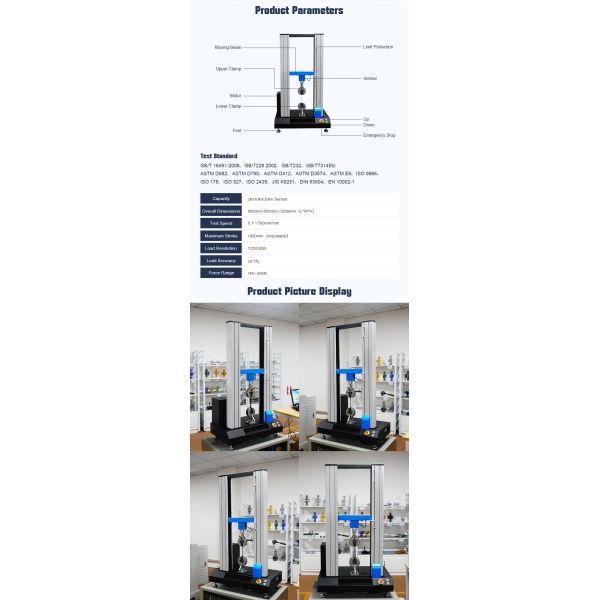

Product Gallery
