5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber
5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber
5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber
5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber
5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber
5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber
5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber
5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber
5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber
5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber
Specifications
MOQ :
1
Motor :
Pana.sonic servo motor w/AC variable speed drive system
Price :
€3,493.80
Brand Name :
haida
Curves display :
Load-elongation, Elongation-time, Time-elongation, Stress-strain
Control system :
PC with win-dows 7 system
Software :
TM 2101
Place of Origin :
Guangdong, China
Test speed :
0.1~500mm/min (adjustable)
Load cell brand :
Germany brand load cell for high accuracy, 2000kg (500,1000kg are optional)
Horizontal test space :
≤400mm
Force reading :
kgf, Ibf, N, KN, T etc
Load accuracy :
0.5% F.S
Data display :
Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features :
E-Stop, Over-load protection, Upper and lower limit switches, Load sensor with automatic retreat
Frame capacity :
2000kg
Voltage :
220 V
Accuracy :
±0.1% ~ ±0.5% FS
Vertical test space :
1200mm including fixture
Description
5-2000kg Digital Force Testing Equipment
5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber 5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber
Product Overview

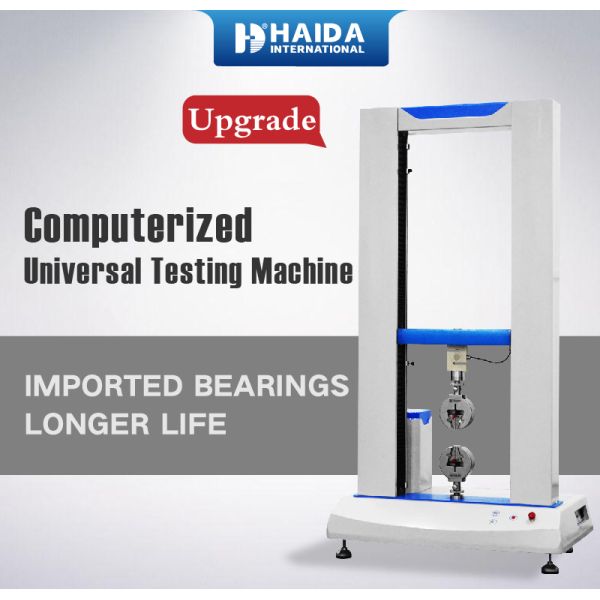

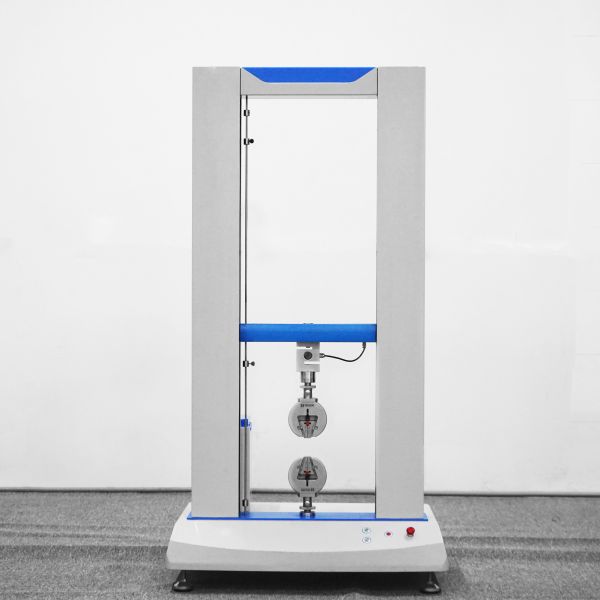

The Computerized Universal Testing Machine is designed for comprehensive mechanical property testing of various materials. This advanced equipment performs static load, tensile, compression, bending, shearing, tearing, and peeling tests with exceptional precision.

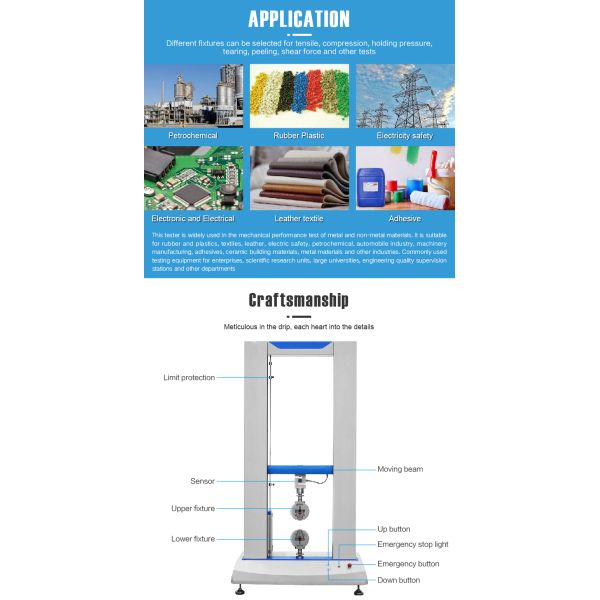

Applications
Ideal for testing plastic plates, pipes, profiles, plastic films, rubber, wires, cables, steel, fiberglass, and other industrial materials. Developed specifically for material research and quality control applications.
Technical Specifications
Frame Capacity 2000kg (500kg, 1000kg optional)
Load Cell German brand for high accuracy
Load Accuracy 0.5% F.S
Control System PC with Window-s 7 system
Motor Panaso-nic servo motor with AC variable speed drive system, high-precision mechanical ball screw rod
Force Reading kgf, lbf, N, KN, T etc
Vertical Test Space 1200mm including fixture
Horizontal Test Space ≤400mm
Test Speed 0.1~500mm/min (adjustable)
Software TM 2101
Data Display & Analysis
  • Curves display: Load-elongation, Elongation-time, Time-elongation, Stress-strain
  • Data parameters: Maximum force, speed, sample information, strength (Kpa, Mpa, N/mm, N/mm²)
  • Comprehensive reporting: Word/Excel reports with results for maximum force, elongation, tensile strength, peel strength, tear strength, compression strength
Testing Capabilities
  • Materials: Laminated materials, wood, leather, rubber & plastic, metal materials
  • Test types: Tensile, peel, tear, heat seal, adhesive, bend and open force with different grips
  • Deformation under defined load testing
  • Load under defined deformation testing
Safety Features
  • Emergency Stop (E-Stop)
  • Over-load protection
  • Upper and lower limit switches
  • Load sensor with automatic retreat
5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber 5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber 5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber 5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber 5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber 5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber
Customized Fixtures
Haida provides comprehensive fixture customization services to meet all customer testing requirements and specific material testing needs.
5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber 5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber

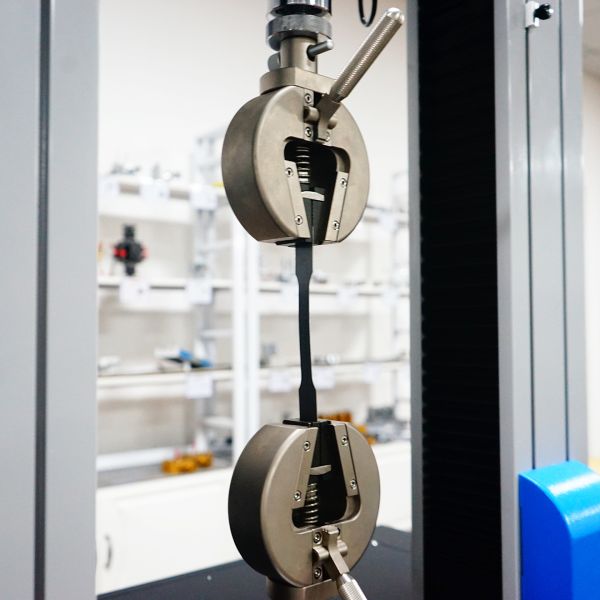

Tensile Testing Applications
5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber 5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber 5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber 5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber 5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber 5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber 5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber 5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber
Manufacturer Profile
5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber 5-2000kg Sensor Digital Display Pulling Force Testing Equipment Pull Tester Tensile Strength Testing Machine for Plastic Rubber
Why Choose Haida Equipment?
  • Considerate Service: Different country plugs, manual voltage change from 110V to 220V, insurance indicator
  • Excellent After-Sales Service: 12 months warranty with free problem controller repair assistance
  • Free replacement parts, even for components not from our factory
  • Comprehensive support: Operation videos and English operation manual
  • Video conference support available
Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
www.haidatestequipment.com
If you want to know more information...
Please leave a message below and click "CONTACT SUPPLIER"
Thanks for your time and attention!
