100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine
100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine
100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine
100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine
100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine
100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine
100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine
100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine
100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine
100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine
Specifications
Screw :
High Precise Ball Screw
Displacement resolution :
0.001mm
Certification :
CE,ISO
Model Number :
HD-B612-S
Elongation Accuracy :
0.001mm
Power :
1 ø, AC220V, 50HZ
Brand Name :
Haida
Price :
€4,367.24-6,375.30
Vertical test space :
1100mm including fixture
Software :
TM 2101
MOQ :
1
Force reading :
kgf, Ibf, N, KN, T etc
Motor :
Panas-onic Servo Motor
Test speed :
0.1~300mm/min
Weight :
Approx.600kg
Place of Origin :
Guangdong, China
Max. Stroke :
1100mm (excluding fixture)
Horizontal test space :
≤400mm
Control system :
PC with wind-ows 7 system
Load accuracy :
0.5% F.S
Frame capacity :
10T
Description
100kN Computer Electronic Laboratory Universal Testing Machine
A precision mechanical testing instrument designed for comprehensive material strength analysis including tension, compression, bending, shear, tearing, and peeling tests.
100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine
Product Overview
This universal materials testing machine is engineered for static load testing and comprehensive mechanical property analysis. It is ideal for testing plastic sheets, pipes, profiles, plastic films, rubber, wires and cables, steel, glass fibers, and various other materials. Essential for material development, physical testing, teaching research, and quality control applications.

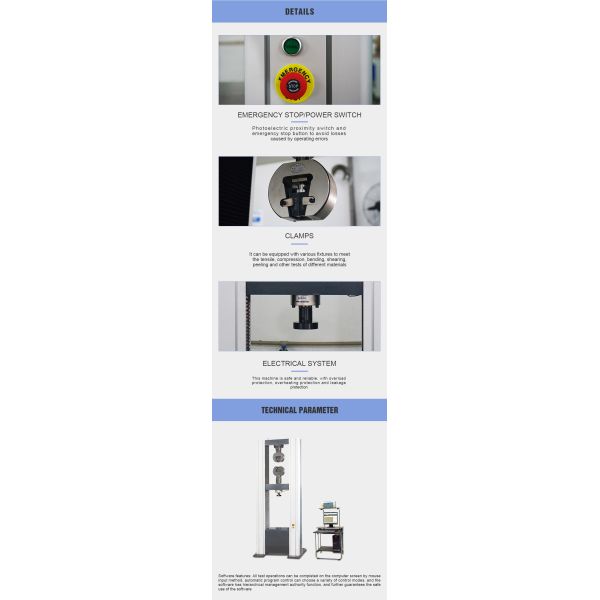

Key Features
  • Motor System: Pa-nasonic servo motor with servo driver and high-precision ball screw (Taiwan)
  • Control System: Computer-controlled with TM2101 software, automatic return to origin after testing
  • Data Transmission: RS232 interface
  • Displacement Resolution: 0.001mm precision
  • Automatic graph scaling with dynamic switching between force-elongation, force-time, elongation-time, and stress-strain displays
  • Comprehensive data recording including maximum force, yield strength, compressive strength, tensile strength, elongation, and peel interval analysis
  • Customizable material parameters including length, width, thickness, radius, and area
  • Multi-language support: Simplified Chinese and Traditional Chinese
Technical Specifications
Sensor Celtron load cell
Unit Switchover G, KG, N, LB
Display Device PC
Resolution 1/250,000
Accuracy ±0.5%
Max. Stroke 1100mm (excluding fixture)
Test Speed 0.01-500mm/min (adjustable)
Motor Panas-onic Servo Motor
Screw High Precise Ball Screw
Elongation Accuracy 0.001mm
Power 1 ø, AC220V, 50HZ
Weight Approx. 600kg
Accessories One set tensile clamp, one set Len-ovo computer, English software CD, operation video CD, English user manual
100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine
Applications
  • Tested Samples: Laminated materials, wood, leather, rubber & plastic, metal materials
  • Various Test Types: Tensile, peel, tear, heat seal, adhesive, bend, and open force testing with specialized grips
  • Deformation Analysis: Measure deformation under defined load conditions
  • Load Measurement: Test load under defined deformation parameters
  • Reporting: Software generates Word/Excel reports with comprehensive results including maximum force, elongation, tensile strength, peel strength, tear strength, and compression strength
100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine

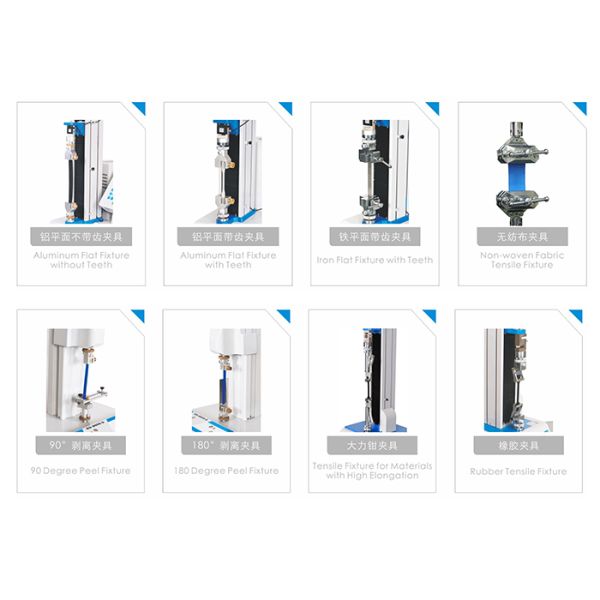

Customized Fixtures
Haida provides comprehensive fixture customization services to meet all customer testing requirements and specific material testing needs.
100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine
Tensile Testing Capabilities
100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine 100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine 100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine 100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine
Company Information
HAIDA INTERNATIONAL is a professional manufacturer of testing equipment with over 20 years of industry experience. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products, and various other industries. Suitable for all scientific research units, quality inspection institutions, and academic applications.
100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine
Packaging & Shipping
Testing machines are carefully protected with air bubble film and securely packaged in wooden cases. Multiple transportation options available including sea, air, and land freight to accommodate global shipping requirements.
