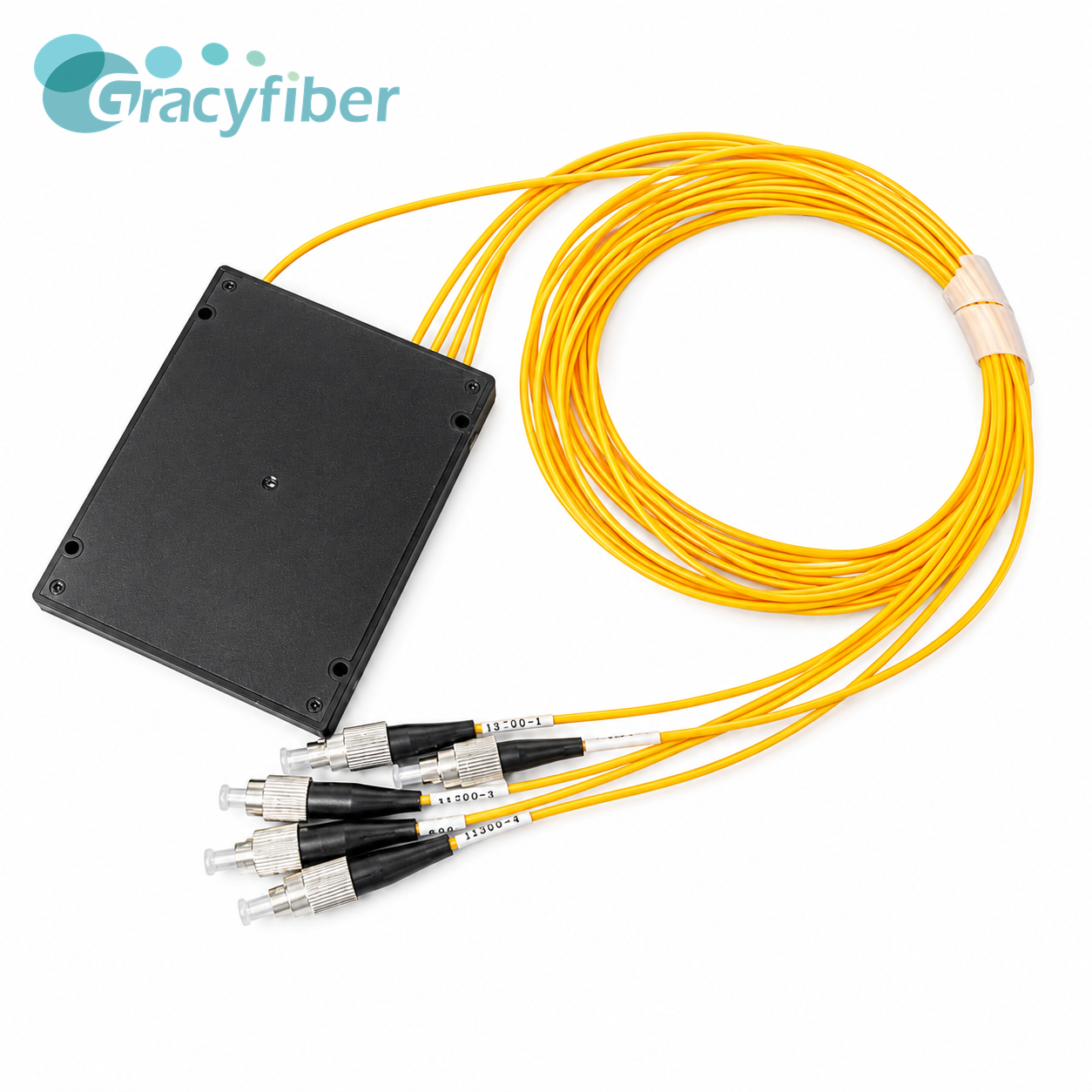

4CH O Band LAN WDM Mux Module 1x4 Fiber Optic Multiplexer Low Insertion Loss FC UPC 120x80x18mm Box Type
4CH O Band LAN WDM Mux Module 1x4 Fiber Optic Multiplexer Low Insertion Loss FC UPC 120x80x18mm Box Type
4CH O Band LAN WDM Mux Module 1x4 Fiber Optic Multiplexer Low Insertion Loss FC UPC 120x80x18mm Box Type
4CH O Band LAN WDM Mux Module 1x4 Fiber Optic Multiplexer Low Insertion Loss FC UPC 120x80x18mm Box Type
Specifications
Operating Wavelength :
1295.56 nm, 1300.05 nm, 1304.58 nm, 1309.14 nm
Insertion Loss :
0.49 dB, 0.81 dB, 0.99 dB, 1.09 dB
Dimensions :
120x80x18 mm
Power Handling :
300 mW
Description
4CH O Band LAN WDM Mux Module 1x4 Fiber Optic Multiplexer Low Insertion Loss FC UPC 120x80x18mm Box Type
1. Product Overview

This product is a 4-channel LWDM Mux multiplexer module, employing a 1×4 structure design, with operating wavelengths of 1295.56 nm, 1300.05 nm, 1304.58 nm, and 1309.14 nm.

2. Core Product Features
Parameter Units Value
Module / 1x4
Operating Wavelength nm 1295.56 1300.05 1304.58 1309.14
Insertion Loss dB 0.49 0.81 0.99 1.09
Isoation dB ≥30
Directivity dB ≥50
Return Loss dB ≥45
PDL dB ≤0.15
Connectors / FC/UPC
Fiber Type / Corning SM-28e,0.9mm,1.0m
Power Handing(mW) mW 300
Operating Temperature °C -5 to +70
Storage Temperature °C -40 to +85
Dimensions (LxWxH) mm 120x80x18
* testing data include connectors




* testing data include connectors

  • 4-Channel LWDM Multiplexing Design
    Supports four wavelength channels: 1295.56 nm, 1300.05 nm, 1304.58 nm, and 1309.14 nm, enabling multiple O-band signal multiplexing transmission.
  • Low Insertion Loss Performance
    Measured insertion losses for each channel are 0.59 dB, 0.74 dB, 0.98 dB, and 0.97 dB, respectively, contributing to reduced system link loss.
  • Good Isolation and Directivity
    Channel isolation ≥30 dB and directivity ≥50 dB, effectively reducing channel crosstalk and ensuring stable transmission of multi-wavelength signals.
  • Stable Optical Performance: Return loss RL ≥ 45 dB, polarization dependent loss PDL ≤ 0.15 dB, maximum optical power carrying capacity 300 mW, suitable for stable and reliable optical communication link applications.
  • Engineering Packaging and Connection Configuration: Utilizes a 120×80×18 mm box-type package, equipped with FC/UPC connectors, Corning SMF-28e fiber, 0.9 mm loose tube, 1.0 m fiber length, facilitating equipment integration and field installation.
3. Applications
  • O-band LWDM optical communication systems;
  • 4-channel optical signal multiplexing transmission systems;
  • High-speed optical interconnects for data centers;
  • 100G/400G optical module and subsystem integration;
  • Metropolitan area networks, access networks, and short-distance optical transmission networks;
  • Integration of optical transmission equipment, test platforms, and passive wavelength division multiplexing devices.
