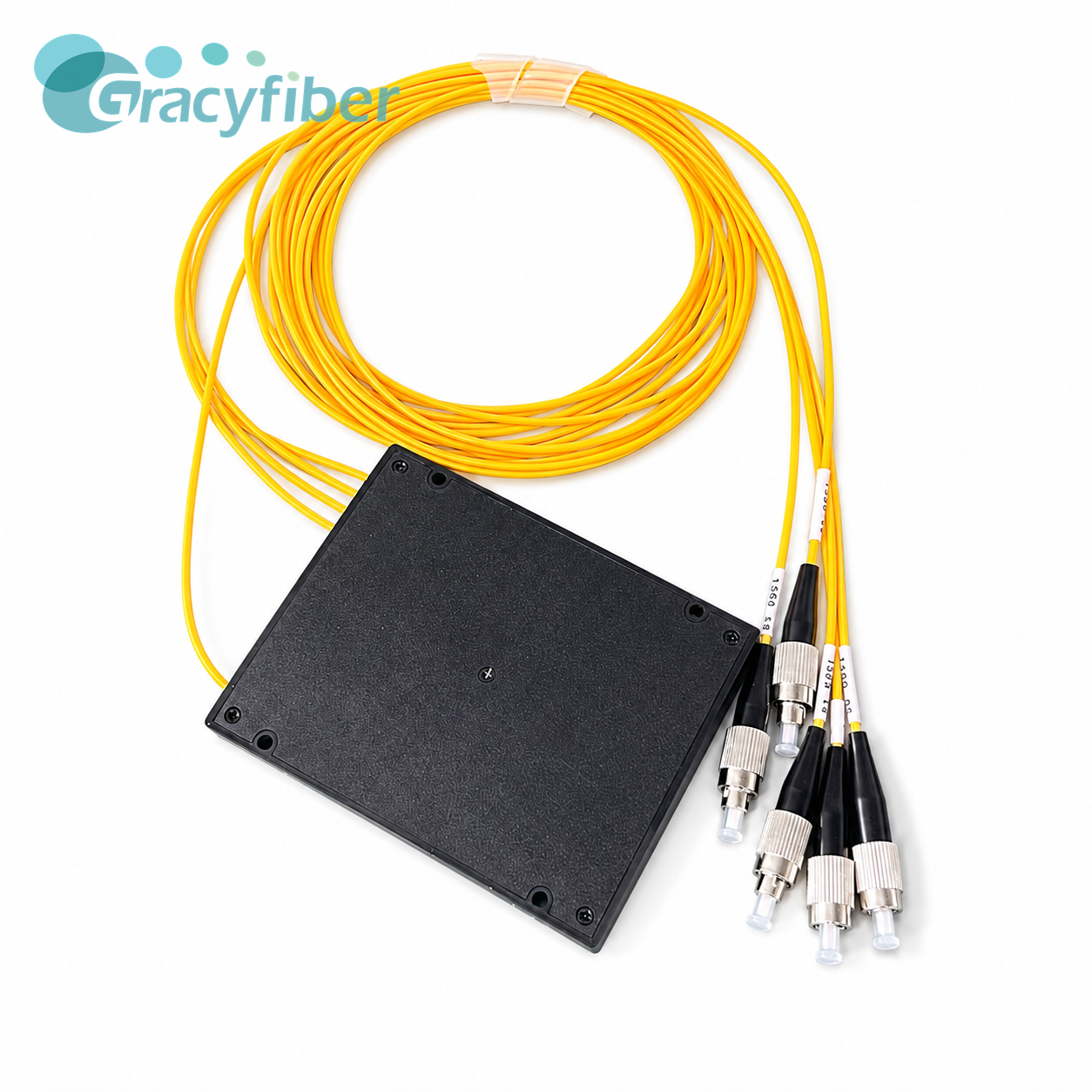

4x1 LWDM Combiner Module 800G O Band 1295.56 1300.05 1304.58 1309.14nm Low Insertion Loss FC APC ABS Box
4x1 LWDM Combiner Module 800G O Band 1295.56 1300.05 1304.58 1309.14nm Low Insertion Loss FC APC ABS Box
4x1 LWDM Combiner Module 800G O Band 1295.56 1300.05 1304.58 1309.14nm Low Insertion Loss FC APC ABS Box
4x1 LWDM Combiner Module 800G O Band 1295.56 1300.05 1304.58 1309.14nm Low Insertion Loss FC APC ABS Box
Specifications
Wavelengths :
1295.56, 1300.05, 1304.58, 1309.14 nm
Insertion Loss :
≤1.8 dB
Fiber Type :
G657A1
Fiber Length :
≥0.5 m
Description
4x1 LWDM Combiner Module 800G O Band 1295.56 1300.05 1304.58 1309.14nm Low Insertion Loss FC APC ABS Box
1. Product Overview

This product is the 4CH LWDM box-type 4×1 multiplexer, operating wavelengths covering 1295.56–1309.14 nm, including four O-band channels: 1295.56, 1300.05, 1304.58, and 1309.14 nm.

4x1 LWDM Combiner Module 800G O Band 1295.56 1300.05 1304.58 1309.14nm Low Insertion Loss FC APC ABS Box

2. Core Product Features
4-Channel LWDM Multiplexing Design

Supports four LWDM wavelengths: 1295.56 nm, 1300.05 nm, 1304.58 nm, and 1309.14 nm, enabling four-channel optical signal multiplexing output.

800G Channel Spacing

Utilizes an O-band LWDM 800G channel design, suitable for high-speed short-distance optical transmission and multi-wavelength optical communication systems.

Low Insertion Loss Performance

Module insertion loss IL ≤ 1.8 dB, helping to reduce link power loss and improve system transmission efficiency and stability.

Engineered Fiber Optic and Connection Configuration

Utilizes G657A1 fiber, 0.9 mm white loose tube, with a length of 50±5 cm including FC/APC connectors. The overall fiber length is ≥0.5 m, facilitating equipment connection and field installation.

Reliable ABS Box Encapsulation

Uses 100×80×10 mm ABS box encapsulation, offering a compact structure and excellent protection, suitable for optical communication equipment, wavelength division multiplexing (WDM) platforms, and modular system integration.

3. Applications
  • O-band LWDM optical communication systems
  • 4-channel optical signal multiplexing transmission systems
  • High-speed optical interconnects for data centers
  • 100G/400G/800G optical modules and subsystem integration
  • Metropolitan area networks, access networks, and short-distance optical transmission networks
  • Integration of optical transmission equipment, test platforms, and passive WDM devices
