4CH O Band LWDM Mux Demux Module 800G LAN WDM Low Insertion Loss FC APC 100x80x10mm ABS Box
1. Product Overview

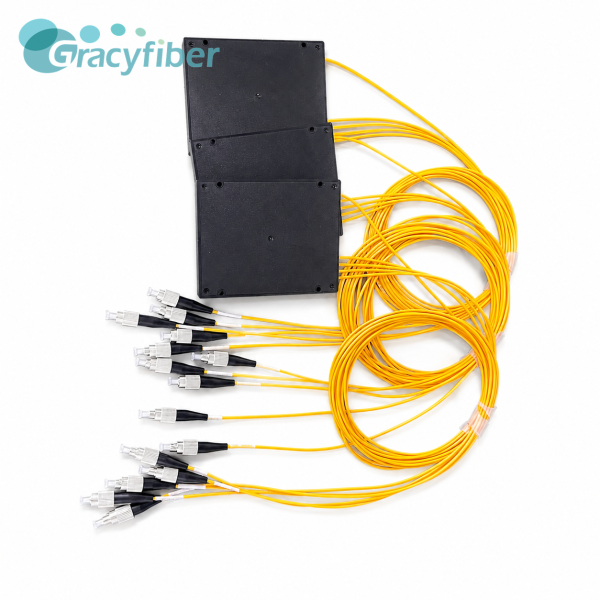

This product is a 4CH LWDM box-type wavelength division multiplexing/demultiplexing module, operating wavelengths covering 1295.56, 1300.05, 1304.58, and 1309.14 nm, with a channel spacing of 800G.

2. Core Product Features
Parameters Mux DeMux
Channel No. 4CH 4CH
Operating Wavelength (nm) 1260~1360 1260~1360
Channel spacing 800G 800G
Center Wavelength (nm) 1295.56 / 1300.05 / 1304.58 / 1309.14 1295.56 / 1300.05 / 1304.58 / 1309.14
Pass band (nm) λc ± 1.1 λc ± 1.1
Ripple (dB) < 0.5 < 0.5
Insertion Loss (dB) < 1.6 < 1.6
Isolation (dB) - Adjacent > 25 > 25
Isolation (dB) - Non-adjacent > 35 > 35
PDL (dB) ≤0.2 ≤0.2
RL (dB) >45 >45
Directivity (dB) >50 >50
Power (mw) <300 <300
Fiber Type SMF-28e SMF-28e
Connector FC/APC FC/APC
Operating Temperature (℃) -20~+70 -20~+70
Storage Temperature (℃) -40~+85 -40~+85
Housing (mm) 100*80*10 100*80*10
  • 4-Channel LWDM Wavelength DesignSupports four LWDM wavelengths: 1295.56 nm, 1300.05 nm, 1304.58 nm, and 1309.14 nm, enabling multiplexing and demultiplexing of multiple optical signals.
  • 800G Channel SpacingUtilizes an 800G channel spacing design, with a passband range of λC ± 1.1 nm, suitable for O-band high-speed optical transmission applications.
  • Low Insertion Loss PerformanceThe module's insertion loss IL ≤ 1.6 dB, effectively reducing link power loss and improving system transmission efficiency.
  • High Isolation and Low CrosstalkAdjacent channel isolation > 25 dB, non-adjacent channel isolation > 35 dB, directivity > 50 dB, ensuring stable transmission of multi-wavelength signals.
  • Engineering Packaging and Connection ConfigurationUses 100×80×10 mm ABS box packaging, Corning SMF-28e fiber, 0.9 mm white conduit for cable numbering, fiber length 0.5 m, FC/APC interface, facilitating installation, testing, and maintenance.
3. Applications
  • O-band LWDM optical communication systems
  • 4-channel wavelength division multiplexing/demultiplexing systems
  • High-speed optical interconnects for data centers
  • 100G/400G optical modules and subsystem integration
  • Metropolitan area networks, access networks, and short-distance optical transmission networks
  • Integration of optical transmission equipment, test platforms, and passive wavelength division multiplexing devices
