4CH LAN WDM Module 1295.56 1300.05 1304.58 1309.14nm O Band LWDM Mux Demux FC UPC ABS Box for Optical Network
4CH LAN WDM Module 1295.56 1300.05 1304.58 1309.14nm O Band LWDM Mux Demux FC UPC ABS Box for Optical Network
4CH LAN WDM Module 1295.56 1300.05 1304.58 1309.14nm O Band LWDM Mux Demux FC UPC ABS Box for Optical Network
4CH LAN WDM Module 1295.56 1300.05 1304.58 1309.14nm O Band LWDM Mux Demux FC UPC ABS Box for Optical Network
Specifications
Channel count :
4
Wavelength range :
1295.56-1309.14 nm
Connector type :
FC/UPC
Package dimensions :
120×80×18 mm
Description
4CH LAN WDM Module 1295.56 1300.05 1304.58 1309.14nm O Band LWDM Mux Demux FC UPC ABS Box for Optical Network
1. Product Overview

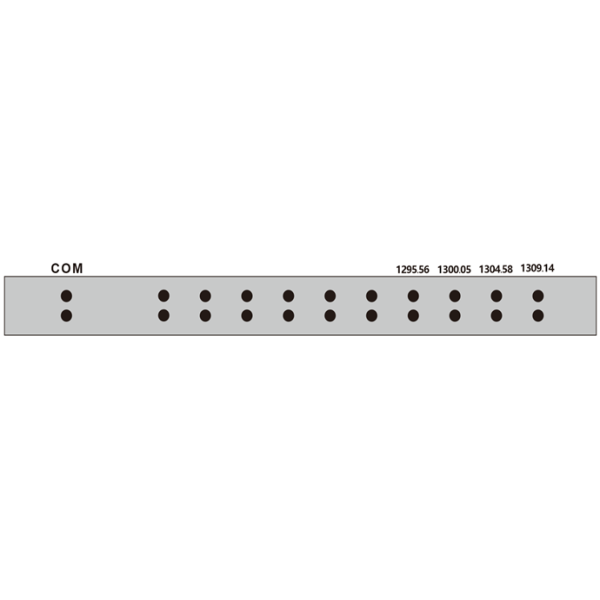

This product is a 4-channel LAN-WDM wavelength division multiplexer, supporting four operating wavelengths: 1295.56 nm, 1300.05 nm, 1304.58 nm, and 1309.14 nm.

4CH LAN WDM Module 1295.56 1300.05 1304.58 1309.14nm O Band LWDM Mux Demux FC UPC ABS Box for Optical Network

2. Core Product Features
  • 4-Channel LAN-WDM Wavelength Design

    Supports four LAN-WDM wavelengths: 1295.56 nm, 1300.05 nm, 1304.58 nm, and 1309.14 nm, enabling the multiplexing and transmission of multiple optical signals.

  • Suitable for O-Band High-Speed ​​Transmission

    Operating wavelengths are concentrated in the O-band, suitable for short-distance high-speed optical interconnects and multi-wavelength optical communication systems.

  • Engineered Connection Configuration

    Modules use FC/UPC connectors, ensuring stable and reliable interfaces and facilitating equipment connection, testing, and field installation.

  • Standardized Fiber Output Structure

    Configured with 0.9 mm loose tubing and 1 m pigtails, facilitating internal cabling, optical path connections, and future maintenance.

  • Reliable ABS Carton Packaging

    Utilizing a 120×80×18 mm ABS plastic carton, this compact design provides excellent device protection and is suitable for integration into optical communication equipment.

4CH LAN WDM Module 1295.56 1300.05 1304.58 1309.14nm O Band LWDM Mux Demux FC UPC ABS Box for Optical Network

3. Applications
  • LAN-WDM Multi-wavelength Multiplexing Systems
  • 100G/400G High-Speed ​​Optical Communication Modules
  • High-Speed ​​Optical Interconnects for Data Centers
  • Multi-wavelength Optical Signal Multiplexing and Transmission Systems
  • Metropolitan Area Networks, Access Networks, and Short-Distance Optical Transmission Networks
  • Integration of Optical Transmission Equipment, Test Platforms, and Passive Wavelength Division Multiplexing Devices
