C Band PM Fiber Patch Cord 4m SC APC Polarization Maintaining Cable PM1550 Slow Axis Aligned Low Insertion Loss High Extinction Ratio,Passive Optical Devices
C Band PM Fiber Patch Cord 4m SC APC Polarization Maintaining Cable PM1550 Slow Axis Aligned Low Insertion Loss High Extinction Ratio,Passive Optical Devices
C Band PM Fiber Patch Cord 4m SC APC Polarization Maintaining Cable PM1550 Slow Axis Aligned Low Insertion Loss High Extinction Ratio,Passive Optical Devices
C Band PM Fiber Patch Cord 4m SC APC Polarization Maintaining Cable PM1550 Slow Axis Aligned Low Insertion Loss High Extinction Ratio,Passive Optical Devices
Specifications
Extinction Ratio :
MIN≥23 dB
Max. Optical Power :
300 mW
Return Loss :
MIN＞55 dB
Fiber Length :
400 cm
Insertion Loss :
MAX≤0.3 dB
Model Number :
910001104-28-01
Description
Product Overview

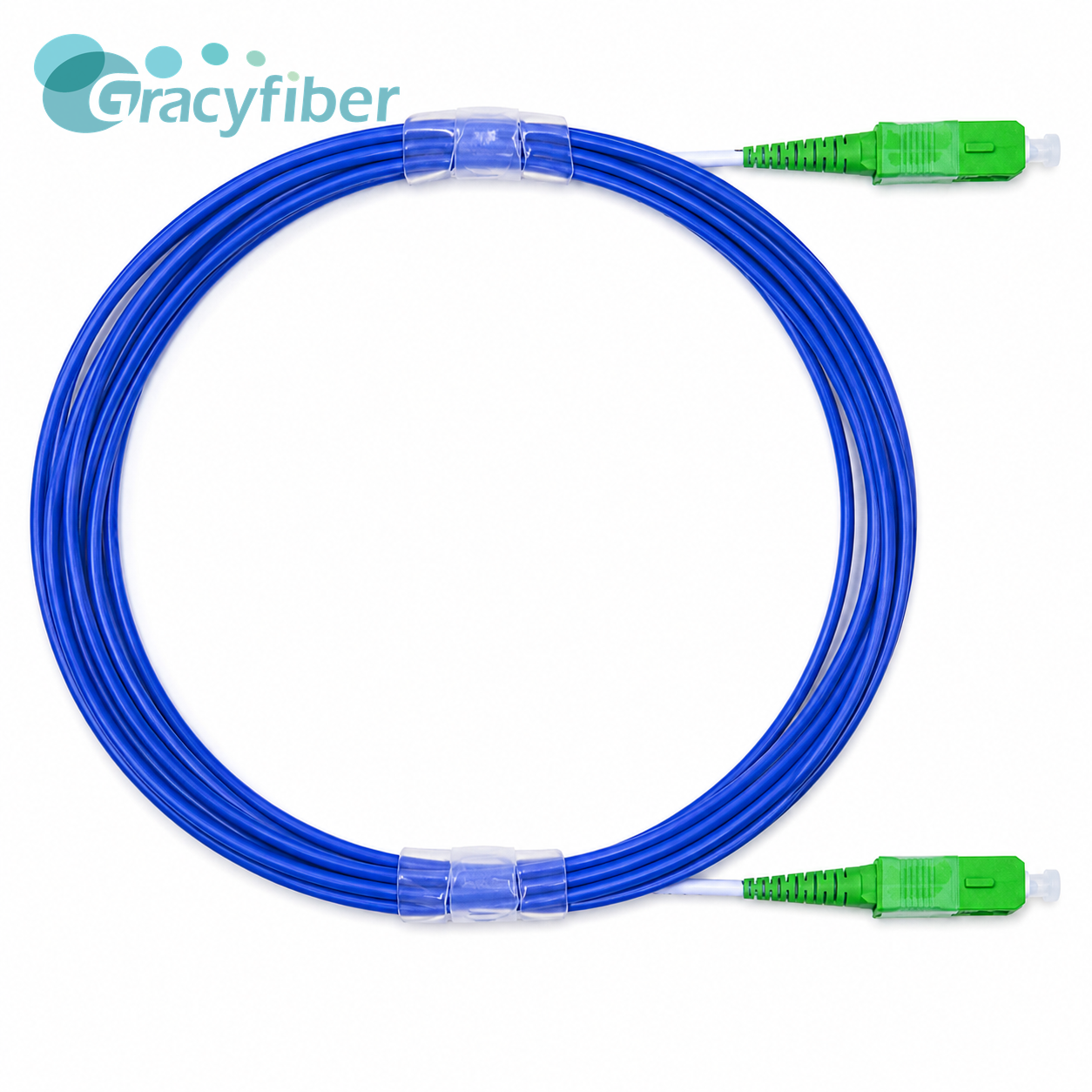

This C-band polarization-maintaining fiber optic patch cord uses YOFC PM1550 polarization-maintaining fiber and SC/APC connectors, precisely aligned along the slow axis.

Product Features
NO. Parameters Unit Spec. Value
1 Insertion Loss dB MAX≤0.3 ILA ILB
0.24 0.20
2 Extinction Ratio dB MIN≥23 ERA ERB
27 27
3 Return Loss dB MIN＞55 RLA RLB
58 58
4 Connector / SC/APC OK
5 Fiber Type / PM1550 Fiber OK
Fiber Length cm 400 OK
6 Max. Optical Power mW 300 OK
7 Buffer Type / 2mm Blue Loose Tube OK
Operating Temperature (℃) 0 to 65 OK
8 Storage Temperature (℃) -40 to 85 OK
  • Suitable for polarization-maintaining optical signal transmission in the C-band
  • Uses YOFC PM1550 polarization-maintaining fiber
  • Slow axis and connector positioning key alignment maintains stable polarization direction
  • Insertion loss IL ≤ 0.3dB, measured values ​​at A/B ends are 0.25dB and 0.23dB respectively
  • Extinction ratio ER ≥ 23dB, measured values ​​at A/B ends are 26dB and 28dB respectively
  • Return loss RL > 55dB, measured value is 57dB
  • SC/APC connectors at both ends reduce end-to-end polarization loss. Surface reflection
  • Total length including connector: 400±20cm
  • Uses a 2mm blue sheath with an internal aramid yarn reinforcement structure
  • Equipped with a slotted tail sleeve suitable for 2mm optical cables
  • Maximum optical power handling: 300mW
  • Operating temperature range: 0～65℃, storage temperature range: -40～85℃
  • Number tubes are defined as PMPC-C-Band-4m-A and PMPC-C-Band-4m-B
  • Number tube arrangement: A in the middle, B on the outside
  • Packaged in a self-sealing bag and includes a neutral English test report
Applications
  • Coherent optical communication systems
  • Polarization multiplexing and polarization control optical paths
  • Polarization-maintaining fiber amplifiers and laser systems
  • Fiber optic sensing and interferometry systems
  • Polarization-sensitive optical device connections
  • Laboratory precision optical testing
  • Internal interconnection of C-Band optical communication equipment
  • Polarization-maintaining passive device testing and system integration
