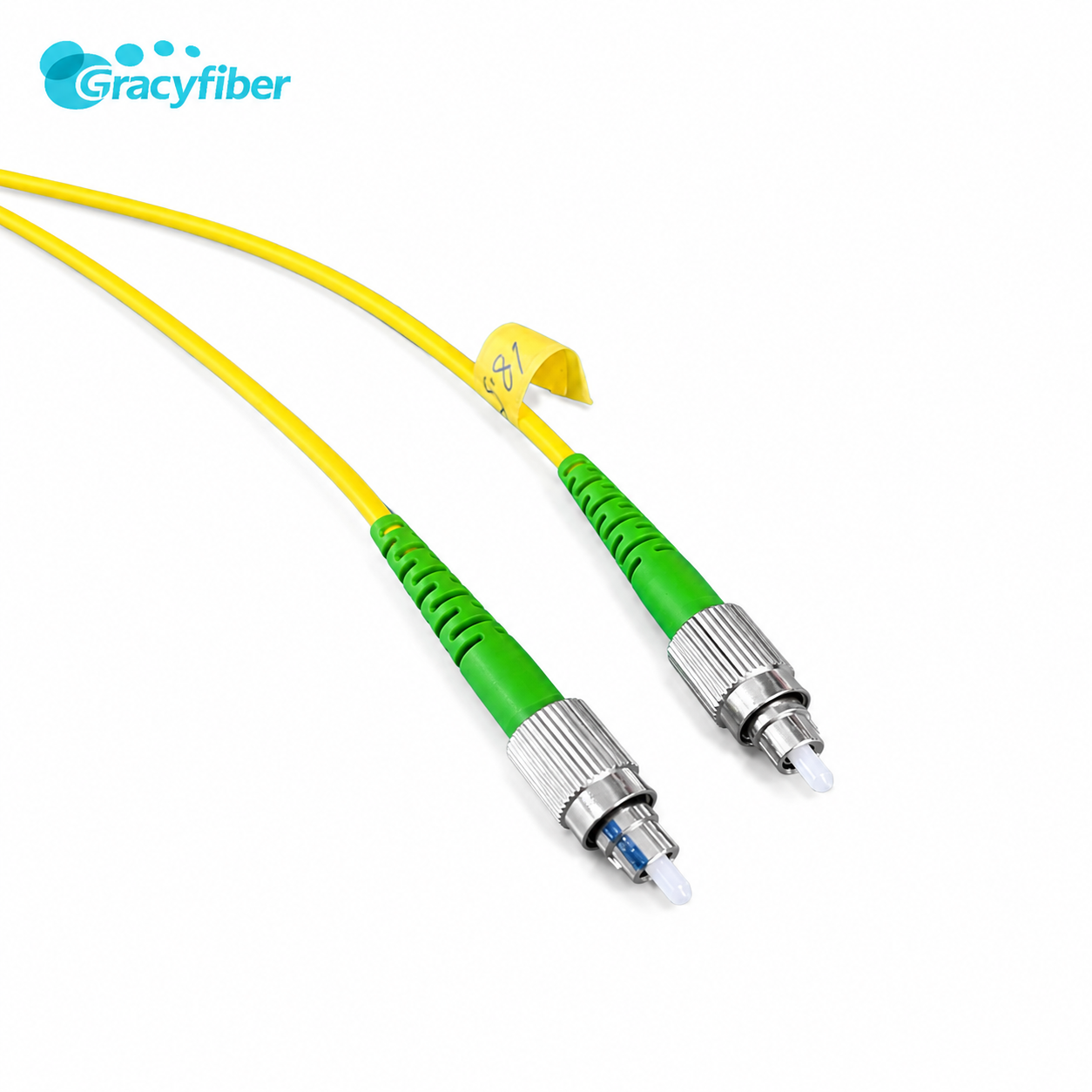

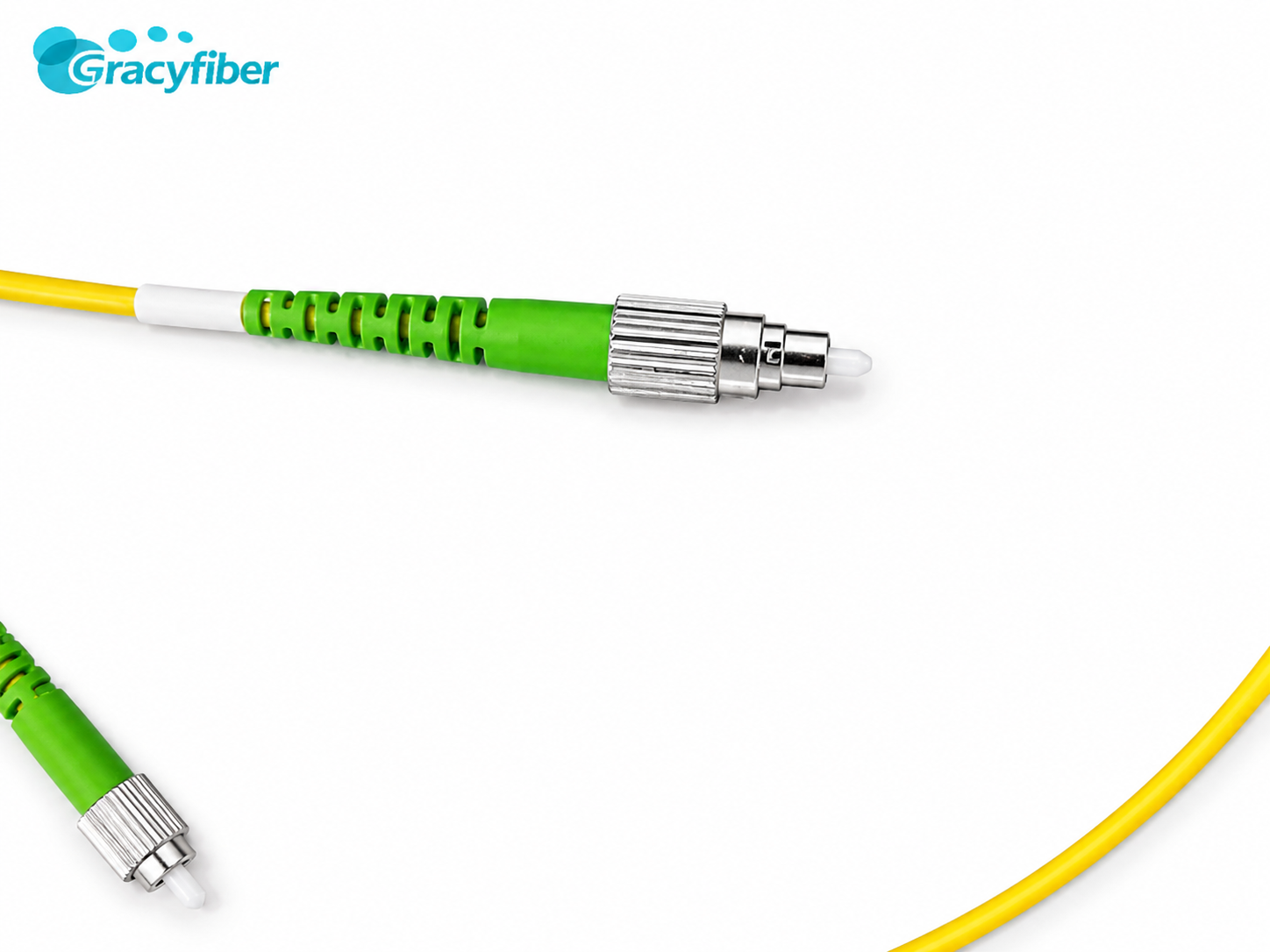

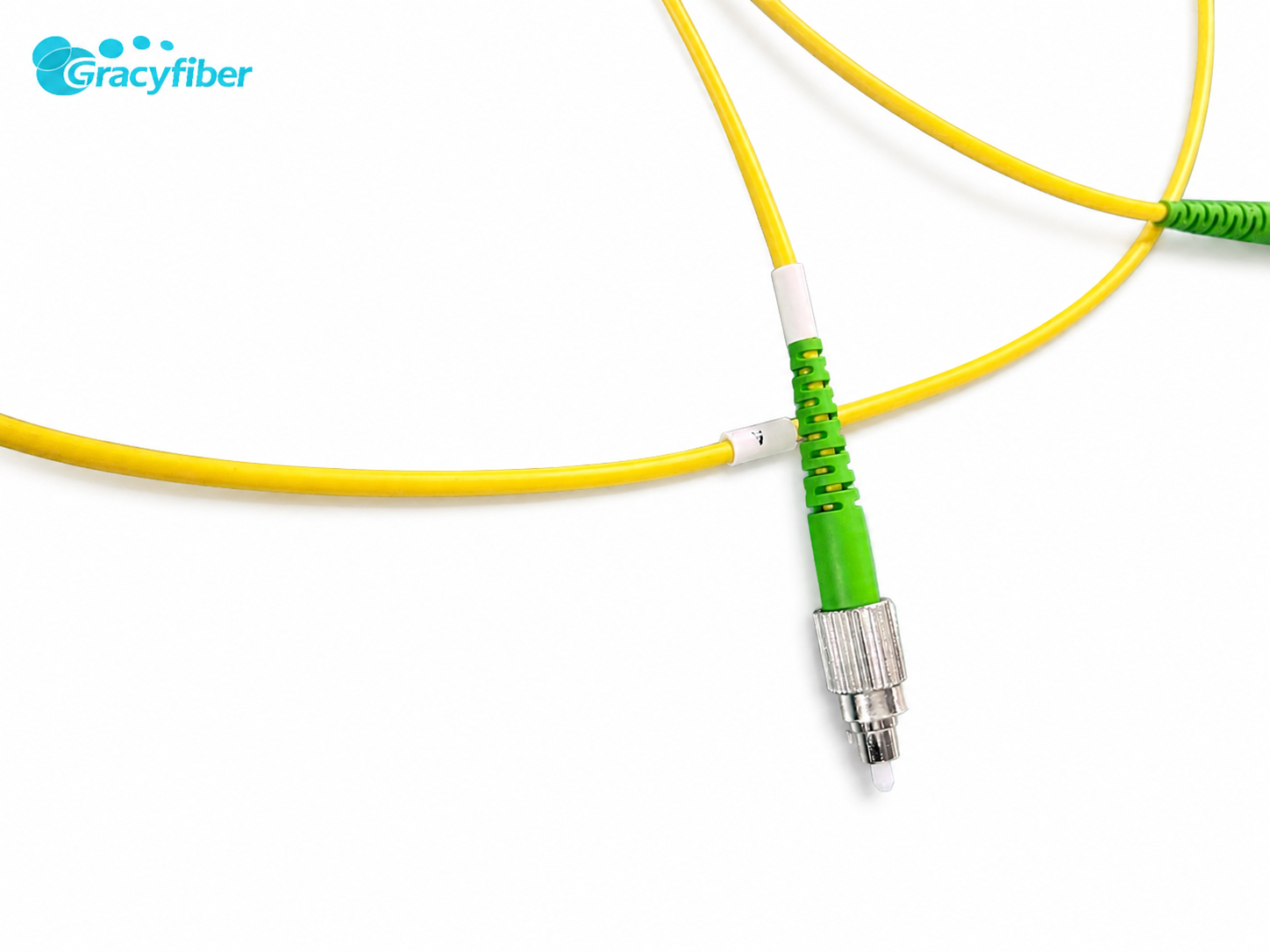

Polarization Maintaining Fiber Patchcord
Polarization Maintaining Fiber Patchcord
Polarization Maintaining Fiber Patchcord
Polarization Maintaining Fiber Patchcord
Polarization Maintaining Fiber Patchcord
Polarization Maintaining Fiber Patchcord
Polarization Maintaining Fiber Patchcord
Polarization Maintaining Fiber Patchcord
Polarization Maintaining Fiber Patchcord
Polarization Maintaining Fiber Patchcord
Specifications
Connector Type :
FC/UPC, SC/UPC, LC/UPC, FC/APC, SC/APC
Wavelength :
1310, 1480, 1550, 980, 1064, 850 nm
Insertion Loss :
≤0.3 dB, ≤0.5 dB, ≤0.8 dB
Return Loss :
≥50 dB (UPC), ≥55 dB (APC)
Extinction Ratio :
≥23 dB, ≥22 dB
Fiber Type :
PM1310, PM1550, PM980, PM850
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
Delivery Time :
5-8 work days
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pieces per month
MOQ :
1pieces
Description

Polarization Maintaining Fiber Patchcord

1.Features

Ø Low Insertion Loss

Ø High Return Loss & ER

Ø High Stability and Reliability

2. Applications

Ø Fiber Laser

Ø Testing Instrument

Ø Fiber Amplifiber

Ø Optic lab use

3. Specifications

Parameter

Value

Connector Type

/

FC/UPC, SC/UPC,LC/UPC,FC/APC, SC/APC,

Wavelength

nm

1310,1480, 1550

980, 1064,

850

Insertion Loss

dB

≤0.3

≤0.5

≤0.8

Return loss

UPC Type

dB

≥50

APC type

≥55

Extinction Ratio 23℃

dB

≥23

≥23

≥22

Fiber Type

/

PM1310,PM1550

PM980

PM850

Fiber Length

cm

100±5 or Customized

Key Orientation

/

Slow Axis

Axis Alignment

deg

±3

Operating temperature

℃

-5~+70

Storage temperature

℃

-40 ~ +80

4. Package Dimension

Polarization Maintaining Fiber Patchcord

5. Ordering information

PMPC

-

XXX

XX

XX

XX

-

X

X

PMPC= PM

Patch Cord

Wavelength

Axis

Fiber Type

Fiber Length

Com connector

Port Connector

085=850nm

SA=Slow axi

02=250um fiber

10=1.0m

0=None

0=None

098=980nm

FA=Fast axi

09=0.9mm Tube

XX=Customized

1=FC/UPC

1=FC/UPC

106=1064nm

20=2.0mm Tube

2=FC/APC

2=FC/APC

131=1310nm

30=3.0mm Tube

3=SC/UPC

3=SC/UPC

148=1480nm

XX=Customized

4=SC/APC

4=SC/APC

155=1550nm

5=LC/UPC

5=LC/UPC

6=LC/APC

6=LC/APC

X=Customized

X=Customized

Part Number

Product Description

PMPC-155SA0910-22

Polarization Maintaining Fiber Patchcord, single mode, PM1550nm Panda fiber with 0.9mm white loose tube,

fiber Length 1m (with connector), connector FC/APC to FC/APC
